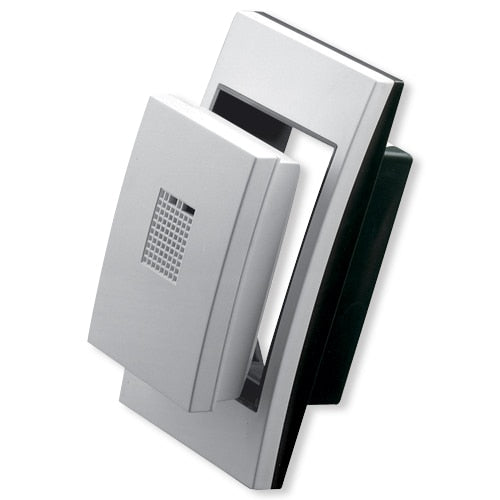

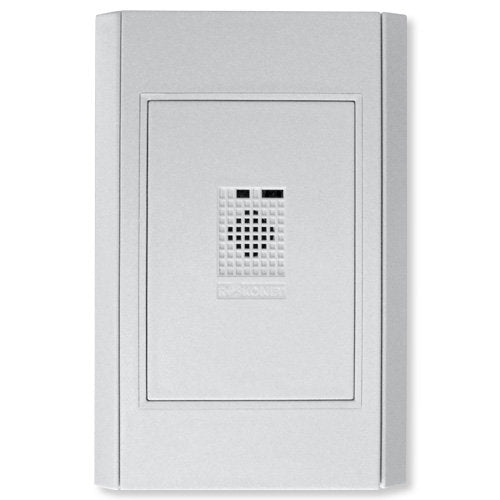

  • Risco ViTRON Plus Acoustic Glass Break Detector

    RKRG71FM

    Elegantly Styled, Easy To Install!

    ViTRON glass-break detectors add important perimeter protection for shop windows and residences. The main advantage is monitoring of glass-breakage, alarming and scaring away burglars while they are still outside.

    ViTRON microprocessor uses unique pattern recognition analysis of the characteristic frequencies and sequences of framed pane glass breakage, providing superior detection combined with excellent false alarm immunity. These adjustment-free and easy-to-install units detect breaking of all standard framed glass types and thickness, while ignoring non-framed glass breakage and other possible sources of false alarms.

    ViTRON is adjustment free, eliminating the "human factor" and simplifying the installation. This is enabled due to Risco’s highly reliable pattern recognition algorithms, and because each detector’s sensitivity is automatically calibrated during production.

    • Glass types: Plate, tempered, laminated and wired
    • Glass thickness: 3, 4.8 & 6 mm (1/8, 3/16 & 1/4")
    • Operating voltage: 9 to 16VDC
    • Current consumption: 20mA at 12VDC
    • Alarm contacts: NC, 50mA, 24VDC
    • Tamper contacts: NC, 0.5A, 24VDC
    • Acoustic sensor: Omnidirectional Microphone
    • Operating temperature: 0° c to 55° c (32° F to 131° F)
    • Storage temperature: -20° c to 60° c (-4° F to 140° F)
    • Dimensions: 71 x 50 x 25mm (2.8 x 1.94 x 0.97")
    • Dimensions with flush mount plate: 115 x 76 x 30.8mm (4.52 x 3 x 1.2")
