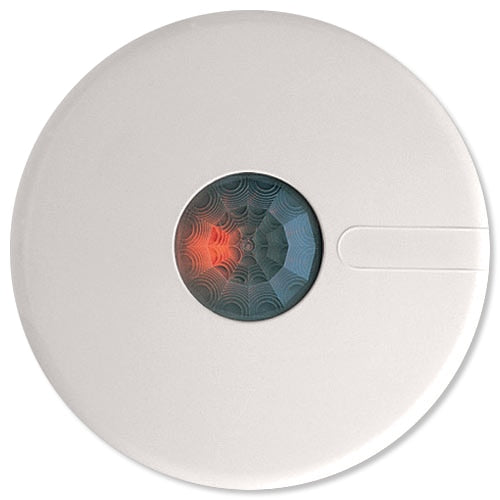

  • Risco LuNAR PIR 360 Degree Ceiling Motion Sensor

    RK2000DPC

    Notify me when this product is available:

    Ceiling Mount Detectors With 360 Degree View

    Combining superior styling and 360° coverage, the Risco LunarPR is a dual element PIR with adjustable sensitivity, signal logic and variable pulse count, plus the advanced optics of a 110° Fresnel Lens. LuNAR PR uses IR technology with adjustable sensitivity and variable pulse count.

    • Temperature compensation
    • Superior fluorescent interference rejection
    • Super RFI immunity
    • Low profile design

    LuNAR Series

    The LuNAR Series offers the ideal solution for areas in which wall and corner mounting is unsuitable. LuNAR detectors are particularly useful in rooms where wall placement would cause detectors to be blocked by shelves, closets, or storage areas.

    Combining sophisticated detection capabilities with a slim, attractive design, these advanced detectors employ a special 110° wide-angle spherical Fresnel l

    • Detection technologies: Dual element PIR
    • Operating voltage: 9 to 16VDC
    • Current consumption: 25mA at 12V
    • Alarm contacts: 100mA, 24V, N.C.
    • Tamper contacts: 100mA, 24V, N.C.
    • PIR lens coverage: 110° angle, 360° overview
    • Detection zones 60: 30 Fresnel facets arranged in 3 optical levels; 12 external, 12 middle and 6 internal facets
    • Optical filtering: White light protection
    • Selectable pulse count: 1, 2, 3
    • Temperature compensation: Automatic thermistor-controlled
    • RF immunity: 30V/m from 10MHz to 1GHz
    • Walk Test Display: 1 LED
    • Operating temperature: 0° C to 55° C (32° F to 131° F)
    • Storage temperature: -20° C to 60° C (-
