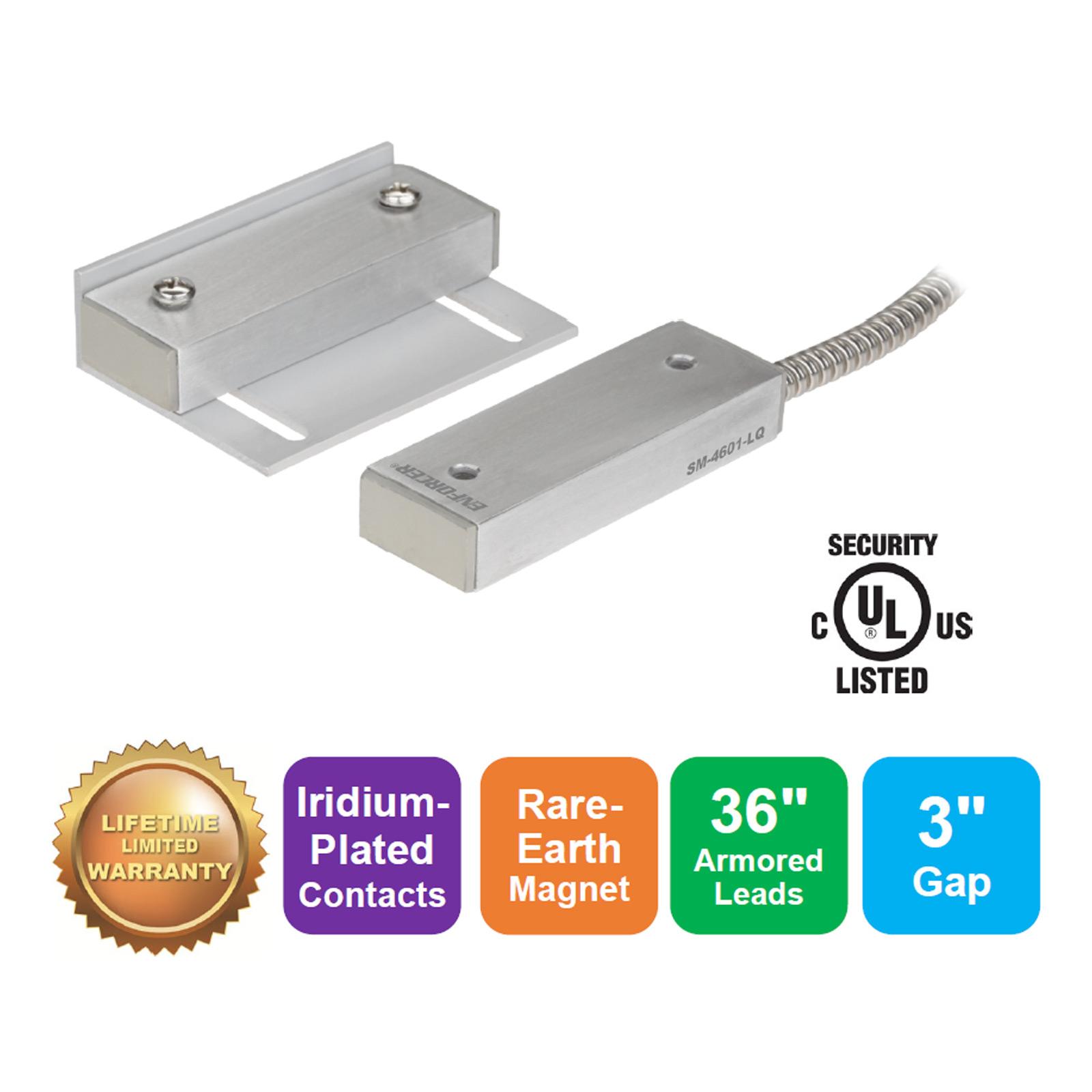

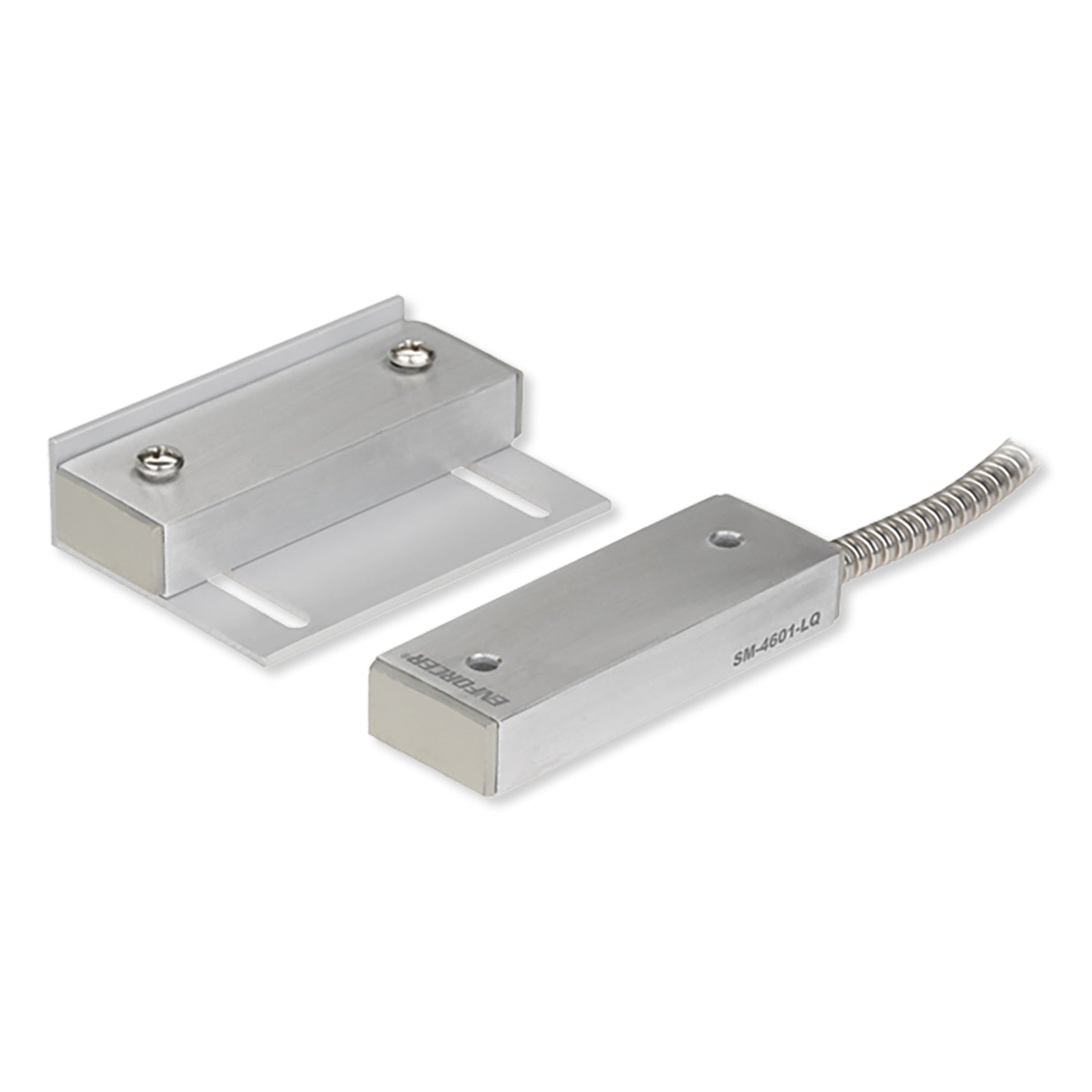

    Seco-Larm Industrial Wide-Gap Magnetic Contact, 3″ (76mm) Gap, Closed loop, UL Listed
    Seco-Larm Industrial Wide-Gap Magnetic Contact, 3″ (76mm) Gap, Closed loop, UL Listed
    Seco-Larm Industrial Wide-Gap Magnetic Contact, 3″ (76mm) Gap, Closed loop, UL Listed
    Seco-Larm Industrial Wide-Gap Magnetic Contact, 3″ (76mm) Gap, Closed loop, UL Listed
    Seco-Larm Industrial Wide-Gap Magnetic Contact, 3″ (76mm) Gap, Closed loop, UL Listed
    Seco-Larm Industrial Wide-Gap Magnetic Contact, 3″ (76mm) Gap, Closed loop, UL Listed

    Seco-Larm Industrial Wide-Gap Magnetic Contact, 3″ (76mm) Gap, Closed loop, UL Listed

    SESM4601LQ

    $14.95

    Notify me when this product is available:

    Magnetic Contact For Wide-Gap Open/Close Applications

    Monitor the status of large doors or windows with the Seco-Larm Industrial Wide-Gap Magnetic Contact, 3" Gap, Closed Loop, UL Listed. This industrial grade magnetic contact is designed for wide-gap, closed loop applications. All components are sealed in aluminum housing for long lasting waterproof usage while the contact switch itself is designed to handle high electrical currents for years, eliminating the need for regular replacement. The contact includes spacers and screw terminals for fast installation.

    • Weatherproof contact switch for industrial situations where a wide-gap (3 inch/76mm) surface mount contact is needed
    • Rugged aluminum housing is IP54 weather-resistant and sealed for outdoor use
    • Iridium-plated magnetic contact has high melting point and Vickers hardness for higher power handling and long life
    • 36" (91cm) wire leads enclosed in
    • Manufacturer Part #: SM-4601-LQ
    • UPC: 676544016014
    • Loop Type: N.C.
    • Operation Gap: 3" (76mm)
    • Case Material: Aluminum
    • Terminal Material: 36" (91cm) armored leads
    • Contacts: Iridium-plated
    • Contact Rating: 0.1A@100VDC (max), 1.0A@10VDC (max), 10W (max)
    • Operating Temperature: -15° to 160° F (-25° to 70° C)
    • Switch Cycles: 50 Million (0.1mA@5VDC)

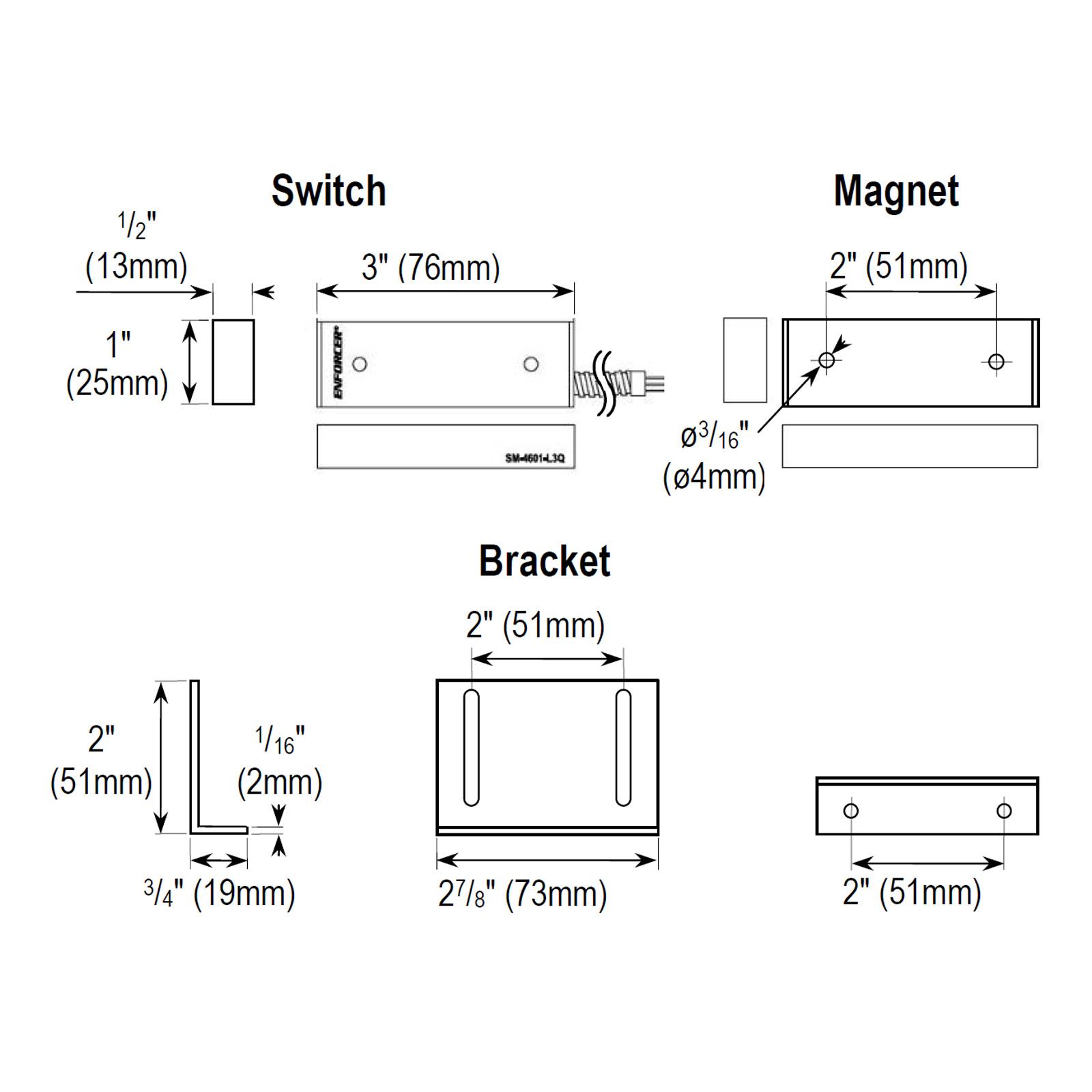

    • Switch Dimensions: 3" x 1" x 1/2" (76.2 x 25.4 x 12.7 mm)
    • Magnet Dimensions: 3" x 1" x 1/2" (76.2 x 25.4 x 12.7 mm)
    • Magnet Type: Rare-earth neodymium
    • IP Rating: Weather-resistant IP54
    • Warranty: Limited Lifetime

    »Seco-Larm SM-4601-LQ Industrial Wide-Gap Magnetic Contacts Spec Sheet (.pdf)»Seco-Larm SM-4601-LQ Industrial Wide-Gap Magnetic Contacts Installation Manual (.pdf)
