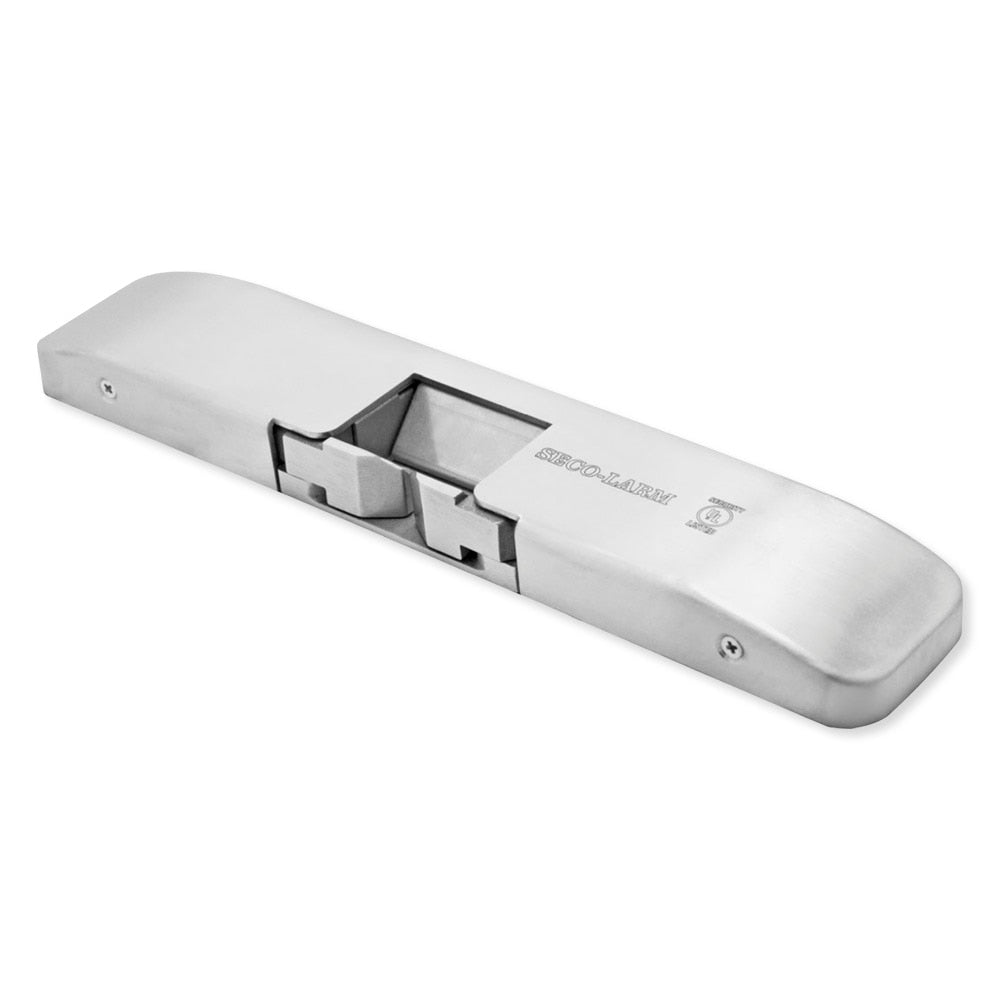

  • Seco-Larm Surface-Mount Electric Rim Strike, 3/4 Inch

    SESD998CD3Q

    Ensure Secure Open/Close Access with an Electric Rim Strike

    Add secure access control to push bar releases with the Seco-Larm Surface-Mount Electric Rim Strike, 3/4 Inch. This electric door strike for rim-type exit devices, operates with 3/4" Pullman latch bolts. The Electric Rim Strike adds selectable fail-safe/fail-secure options to add enhanced access control security and guaranteed operation in daily and emergency situations. The strike surface mounts onto metal or wood frames, eliminating the need for cutting into the frame during installation. The strike is designed to resist tampering and extensive use, providing additional protection to your property.

    • Electric rim door strike for up to 3/4" Pullman latches
    • Surface-mounts on metal or wood frames
    • Field-selectable for fail-safe or fail-secure operation
    • Works with standard rim-type exit devices including SECO-LARM SD-962AR-36A and SD-962AR-36G<
    • Manufacturer Part #: SD-998C-D3Q
    • Operating voltage: 12/24 VDC
    • Current draw: 540mA@12VDC, 270mA@24VDC
    • Maximum latch throw: 3/4" (19mm)
    • Static strength: 1,500-lb (6673N)
    • Dynamic strength: 70ft-lb (95J)
    • Endurance: 250,000 cycles (UL Tested), Level IV
    • Destructive attack: Level I
    • Line security: Level I
    • Standby power: Level I
    • Operating temperature: 14° to 120° F (-10° to 49° C)
    • Operating humidity: 0 to 85%
    • Dimensions: 9" H x 1 3/4" W x 3/4" D (229 H x 45 W x 19 D mm)
    • Warranty: 5-Year Limited
