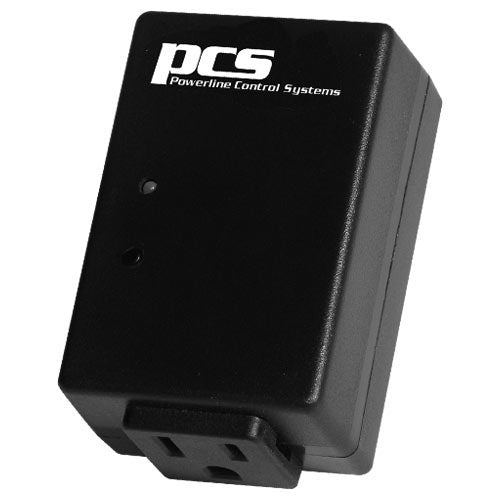

  • PCS SimpleWorx Sunrise Sunset Timer

    PCSWXSST

    Scheduled & Remote Control For A Plug-In Device

    SimpleWorx by Powerline Control Systems (PCS) Logo

    With a built-in astronomical clock, the SimpleWorx Sunrise Sunset Timer allows you to put one plug-in 120VAC device on one of 10 pre-programmed daily schedules. The connected device is also remotely controllable with up to eight SimpleWorx transmitters and locally controllable with the timer's manual override button.

    10 Preset Schedules

    • #1: On: SUNRISE, Off: SUNSET
    • #2: On: SUNSET -30 Min, Off: SUNRISE +30 Min
    • #3: On: SUNSET, Off: MIDNIGHT
    • #4: On: SUNSET, Off: 10:00 PM
    • #5: On: SUNSET, Off: 2:00 AM
    • #
    • Manufacturer Part #: SWX-SST

    Electrical

    • Power Requirements: Primary: 120 Volts AC, 50/60Hz Single Phase
    • Neutral Wire: Required
    • Channels: 1
    • Switch Load Types: Standard inductive loads up to 15A and incandescent loads up to 800W
    • Relay Lifetime: 100,000 on/off operations at full electronic ballast load
    • Max Load: 15 Amps at 120VAC 50/60 Hz
    • Standby Power Consumption:< 0.8 Watts
    • Environmental Conditions: Outdoor Water Resistant Use Only
    • Temperature: -40 to 140° F (-40 to 60° C)
    • Humidity: 10 to 90% RH (non-condensing)
    • Certifications: Safety tested for USA and Canada ETL tested to UL508; UL-508-2010CSA C22.2 #14-2010

    Operation

    <
