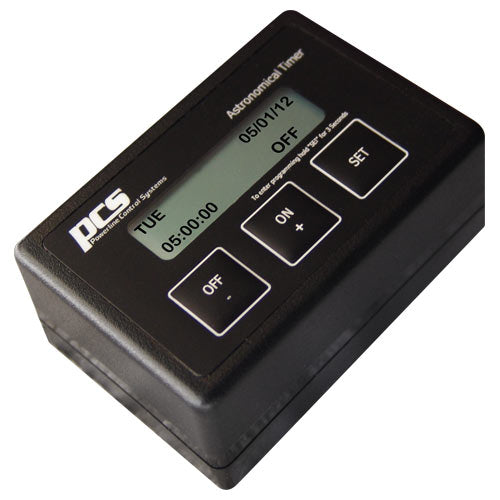

  • PCS SimpleWorx Digital Astronomical Timer

    PCSWXDAT4

    Create Up To Four Different Schedules For SimpleWorx Receivers

    SimpleWorx by Powerline Control Systems (PCS) Logo

    Put individual SimpleWorx receivers or groups of receivers on a custom schedule with the SimpleWorx Digital Astronomical Timer. The timer plugs into a power outlet to communicate with receivers, and links to each receiver you want to include in your schedule. The timer supports four schedules (groups) with up to four events each for as many SimpleWorx receivers as you wish to include in each group.

    • Supports four groups of unlimited receivers
    • Schedule up to four timed events per group (16 total)
    • Event triggers include dusk, dawn, or specific time
    • Plugs into a standard power outlet

    Your linked SimpleWorx receiver(s) will autom

    • Manufacturer Part #: SDAT4

    Electrical

    • Power Requirements: Primary: 120 Volts AC, 50/60Hz
    • Transmission Channels: 4 Groups
    • Standby Power Consumption:< 0.8 Watts
    • Environmental Conditions: Indoor Use Only
    • Operating Temperature: -40 to 140° F (-40 to 60° C)
    • Operating Humidity: 10 to 90 percent RH (non-condensing)
    • Certifications: Safety tested for USA and Canada to ETL tested to UL508; UL-508-2010 CSA C22.2 #14-2010

    Operation

    • Timers: 16 total – Each may be assigned more than 4 different channels
    • Schedules: Specific Time of Day, Sunrise or Sunset, Plus or Minus 75 Minutes in 15-Minute Increments
    • Manual Control: Use the Set Button to select which channel to
