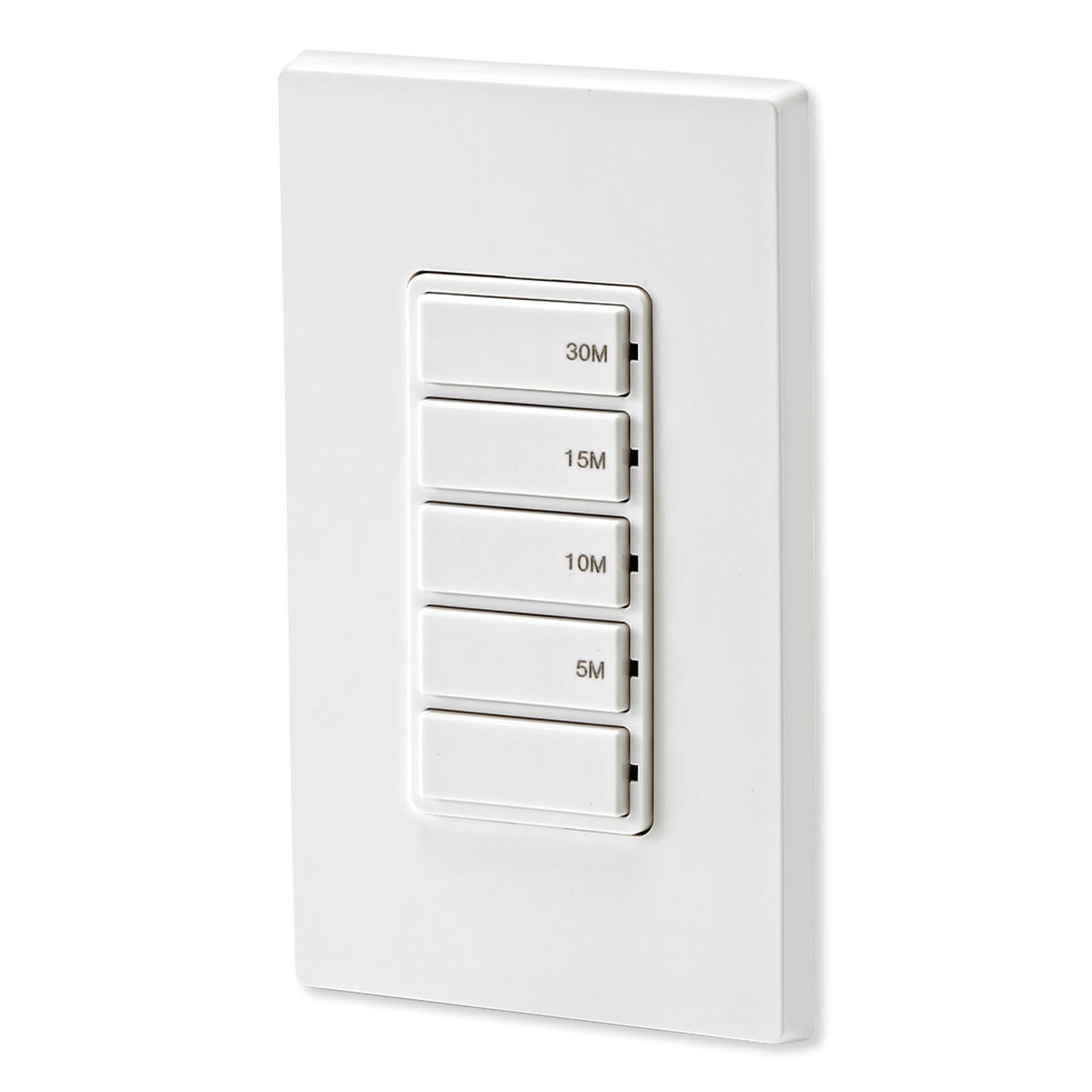

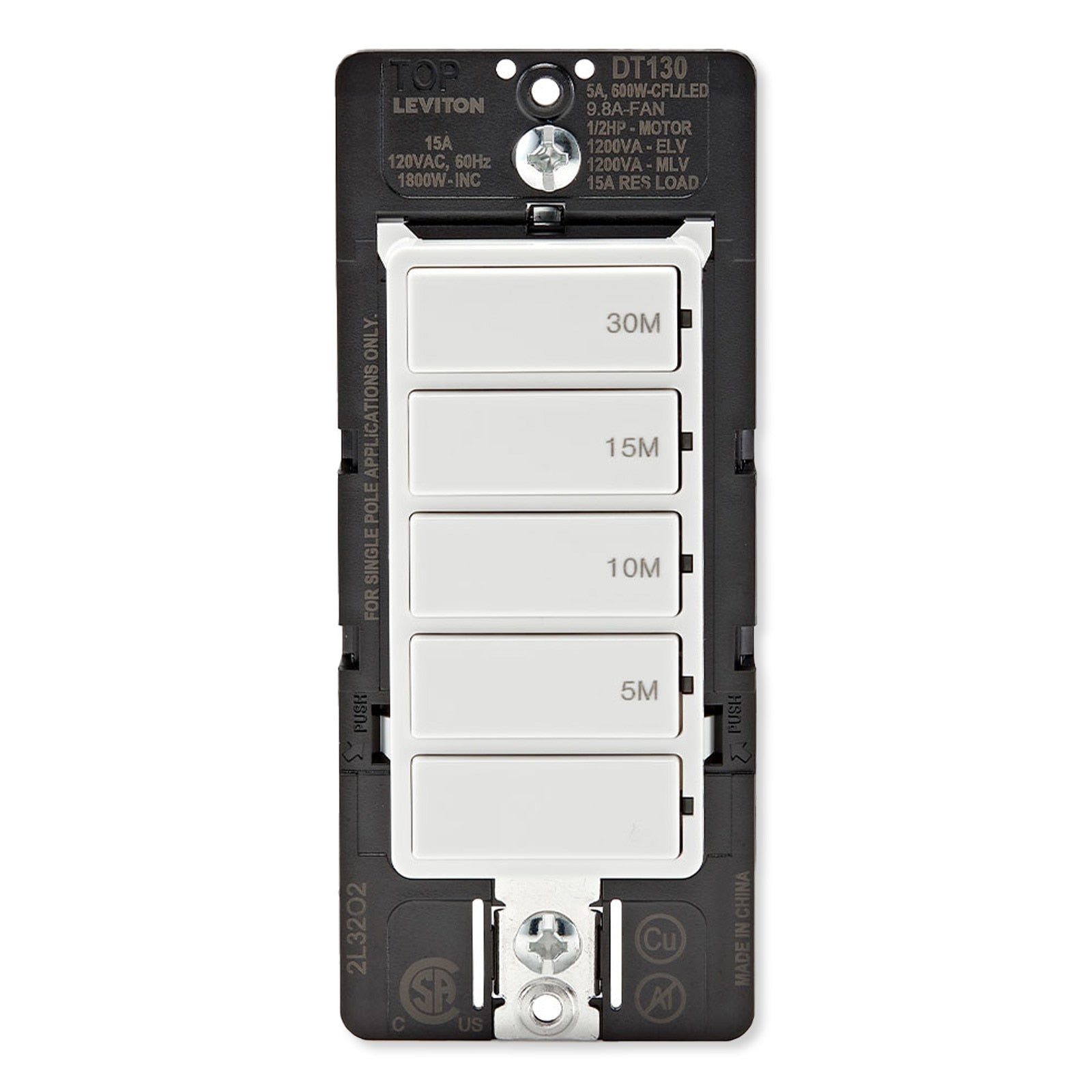

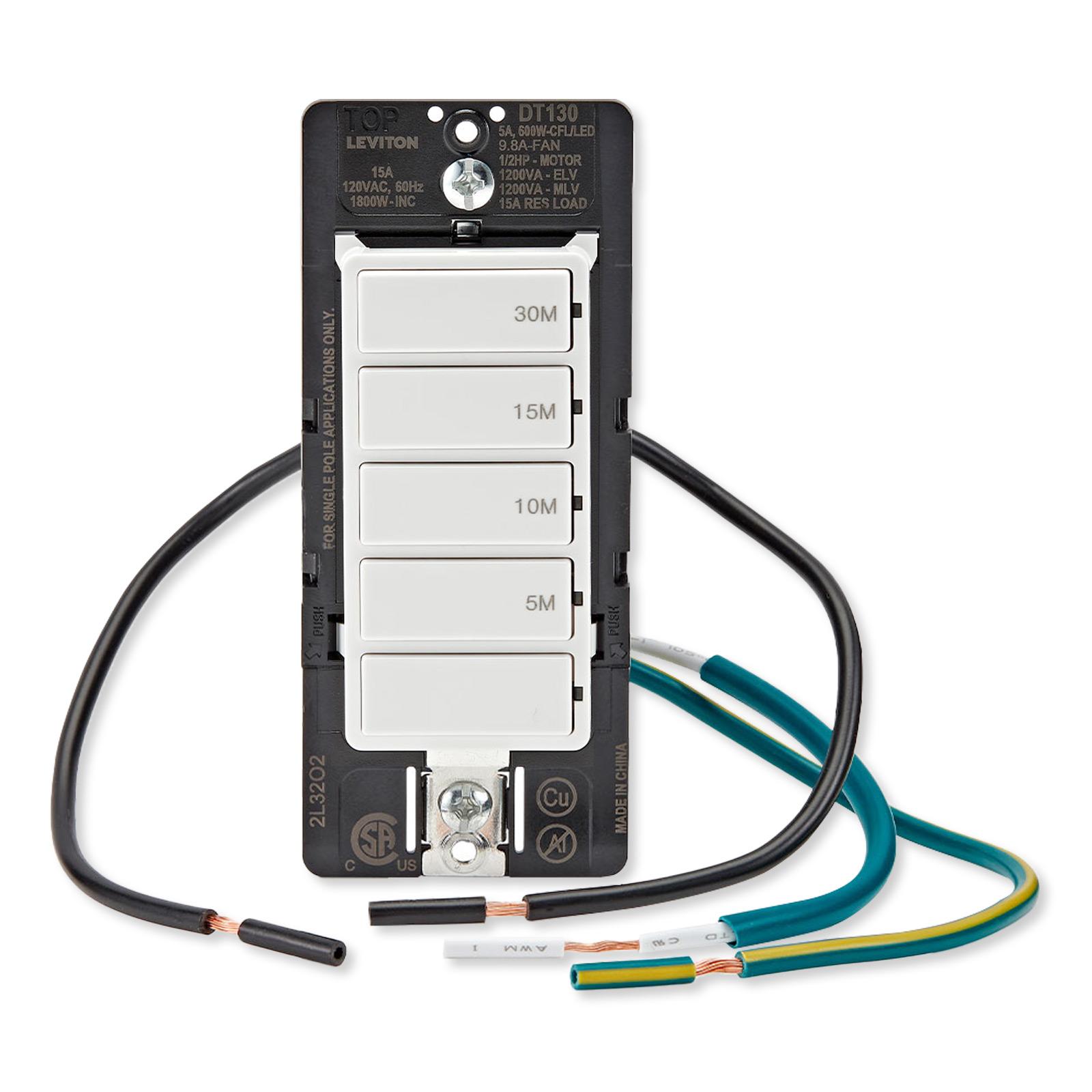

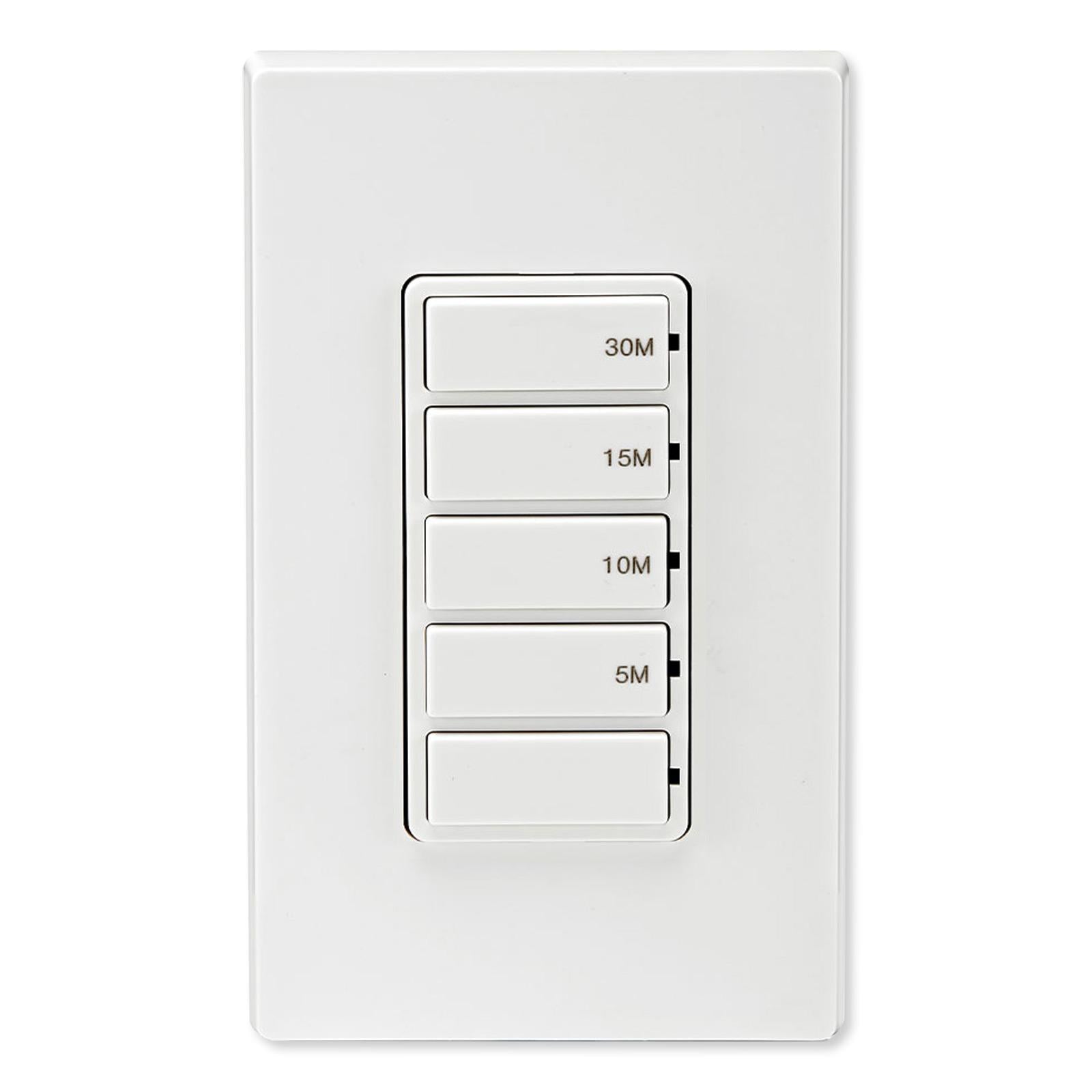

Leviton Decora Preset Countdown Timer Wall Switch, 30 Min (5, 10, 15, 30 Min)

Set A Time To Turn Off Lights At Home Automatically

Don't waste energy by accidentally leaving your lights on or an appliance running with the Leviton Decora Countdown Timer Wall Switch, 30 Min (5, 10, 15, 30 Min). This timer switch functions as a single-pole switch (15 Amp, 120 VAC) and is ideal for a wide range of applications such as porch and landscape lighting, interior lights, bathroom exhaust fans, heat lamps, small closets, basements, garages and more. It can control LED, CFL, incandescent, halogen, magnetic low voltage, electronic low voltage, fluorescent, fans, or motor loads. The Leviton Decora Countdown Timer Wall Switch is designed with four preset timer buttons and a single Off button, which makes it really easy to use. Once a timer button has been selected, it can be extended or turned off. To extend the On time simply press and hold the timer button. To manually turn the load Off, press the Off button. It's that simple!

• Countdown timer switch offers 4 countdown times with 4 preset buttons
• 30-minute model counts down from 5, 10, 15, or 30 minutes
• Press and hold timer button to extend On time
• Replaces a standard wall switch (neutral wire not required)
• DTKIT faceplates available in white, ivory, light almond, gray, black and brown (sold separately)

The Timer indicates how much time is left through LEDs alongside each button. When you choose a countdown time, the LED next to that button lights up, as well as any LEDs below it. As time passes, the lights will go out. For example, if you press the 15 Min button, the three LEDs next to the 5Min, 10Min, and 15 Min buttons will light up. After 5 minutes pass, the 15 Min LED will go out, while the 10 Min and 5 Min LEDs remain lit.

Contents

• Decora In-Wall 30-Minute Countdown Timer Switch
• Installation Guide

Notes

• Wallplate sold separately.
• Can be installed with or without a neutral wire. Ground wire is required.
• Do not use it to control lights if there is no other light source in the space.
