Leviton Decora Preset Countdown Single/Multi-Way Timer Wall Switch, 30 Min (5, 10, 15, 30 Min)
Usually ships in 2-4 days.
LVDT2301LW
$42.95
Automatically Turn Off Lights And Appliances At Home
Never worry about accidentally leaving your lights on or appliances running by installing the Leviton Decora Preset Countdown Single Pole/Multi-Way Timer Wall Switch, 30 Min (5, 10, 15, 30 Min). This timer switch works as a single-pole or multi-way switch (20 Amp, 120 VAC), making it ideal for various uses such as porch and landscape lighting, interior lights, bathroom exhaust fans, heat lamps, small closets, basements, garages, and more. It supports different load types including LED, CFL, incandescent, halogen, magnetic low voltage, electronic low voltage, fluorescent, fans, and motor loads. The Timer Wall Switch offers four preset timer buttons plus a dedicated Off button for easy operation. When a timer is set, the On time can be extended by pressing and holding the timer button, or the load can be manually turned Off with the Off button. It's really that simple.
- Countdown timer switch offers 4 countdown times with 4 preset buttons
- 30-minute model counts down from 5, 10, 15, or 30 minutes

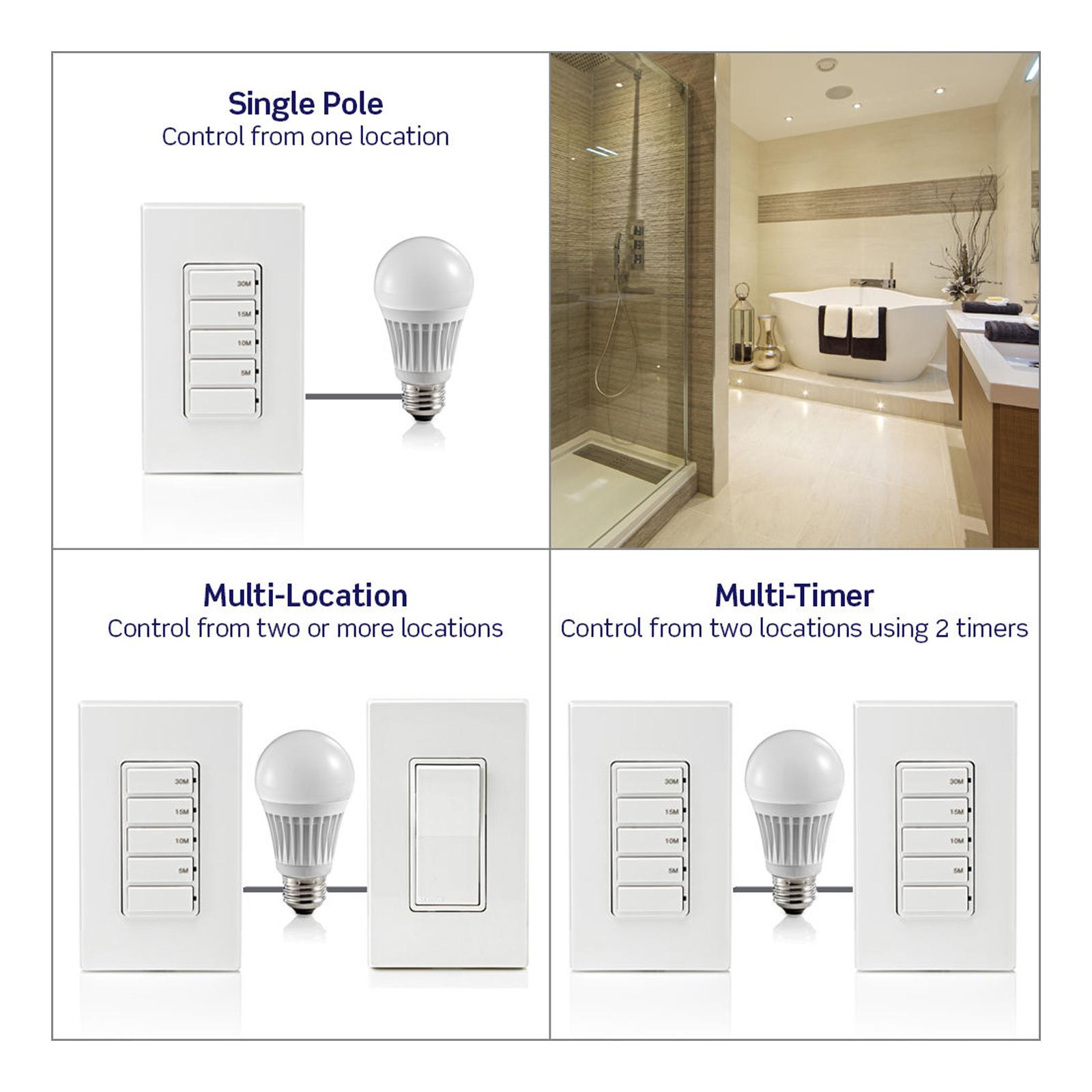

- Works as a single pole or multi-way using the DD0SR Switch Companion or multi-timer using two DT230 Countdown Timers

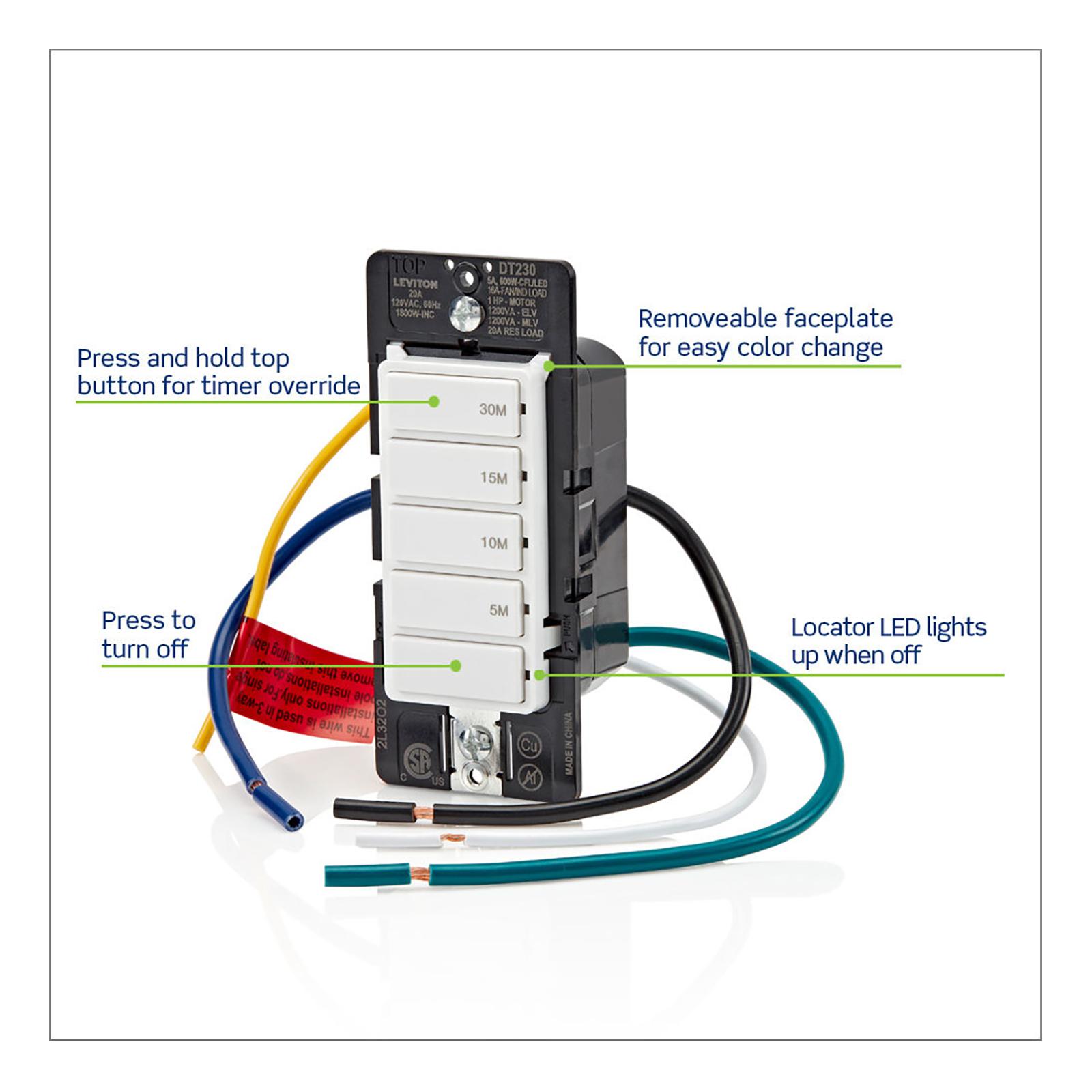

- Press and hold timer button to extend On time
- Replaces a standard wall switch (neutral wire not required)
- DTKIT faceplates available in white, ivory, light almond, gray, black and brown (sold separately)

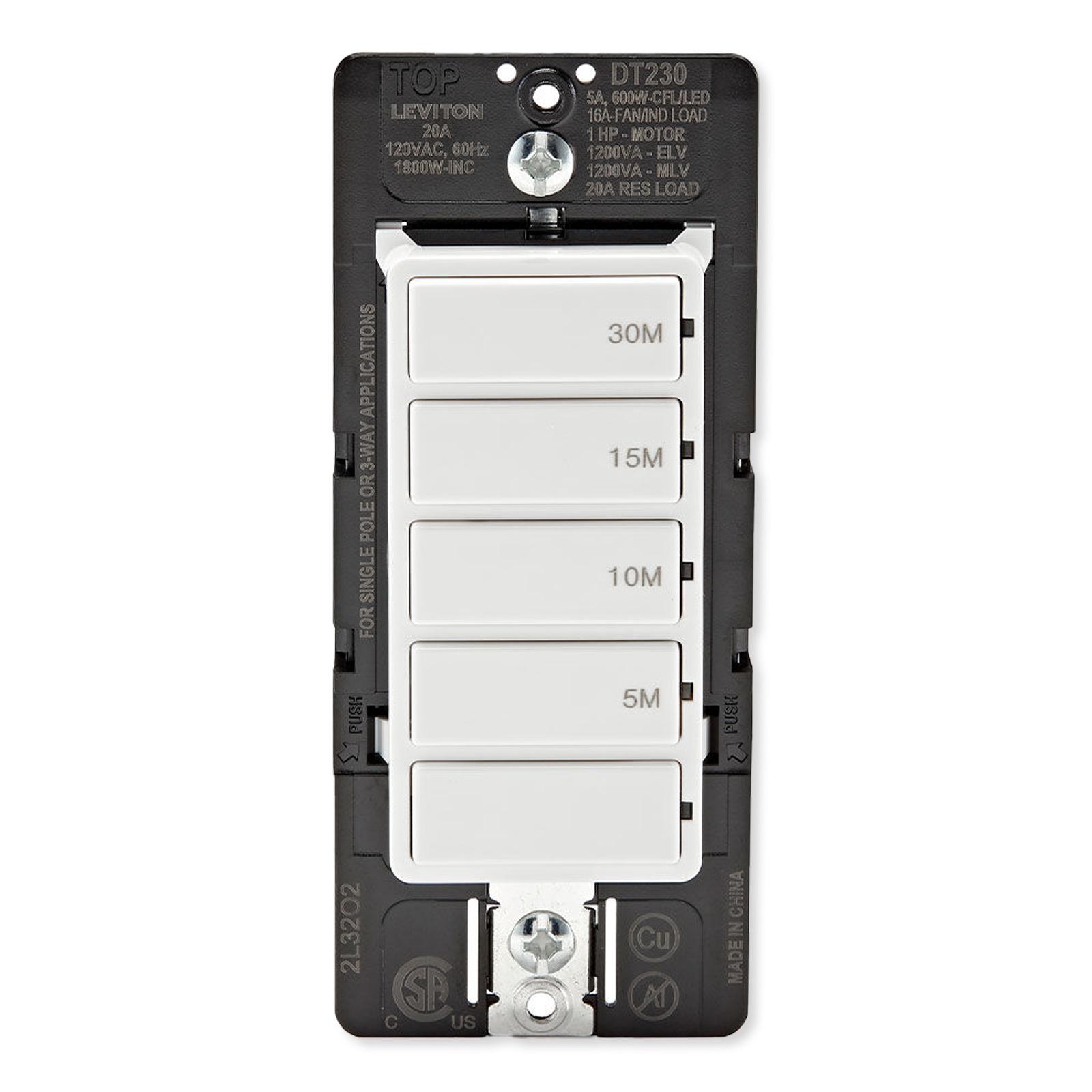

The Timer indicates how much time is left through LEDs alongside each button. When you choose a countdown time, the LED next to that button lights up, as well as any LEDs below it. As time passes, the lights will go out. For example, if you press the 15 Min button, the three LEDs next to the 5Min, 10Min, and 15 Min buttons will light up. After 5 minutes pass, the 15 Min LED will go out, while the 10 Min and 5 Min LEDs remain lit.
Installation Details

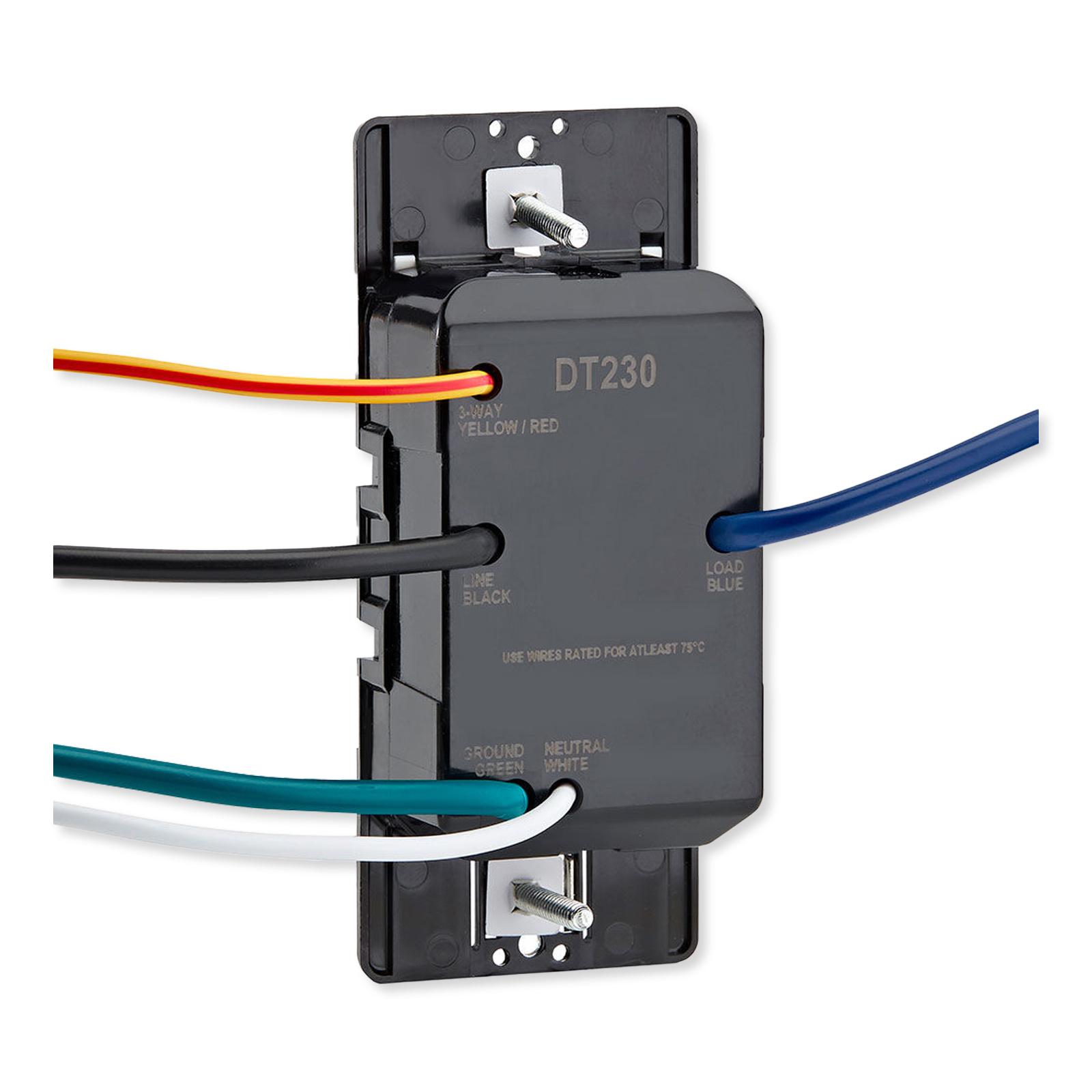

The Leviton Decora Preset Countdown Single Pole/Multi-Way Timer Wall Switch supports single-pole and multi-way applications with the DD0SR Switch Companion or multi-timer using two DT230 Countdown Timers, and can replace a standard wall switch. The switch fits into single-gang mounting boxes and requires standard screw terminal installation with wiring connections for Line (Hot), Load, and Ground. It can be installed with or without a neutral wire.
Contents
- Decora In-Wall 30-Minute Countdown Single Pole/Multi-Way Timer Switch
- Installation Guide
Notes
- Wallplate sold separately.
- Can be installed with or without a neutral wire. Ground wire is required.
- Do not use it to control lights if there is no other light source in the space.
- Works as a single pole or multi-way using the DD0SR Switch Companion or multi-timer using two DT230 Countdown Timers (both sold separately).
