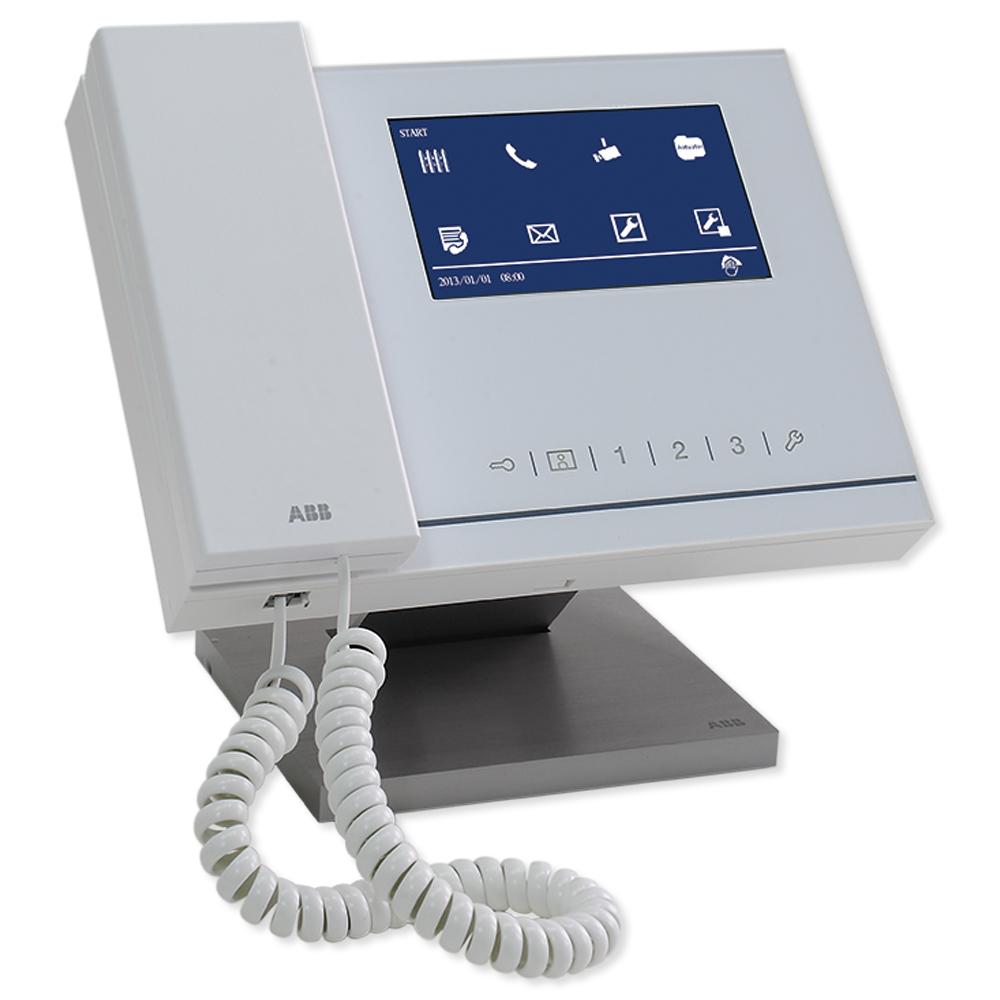

  • ABB-Welcome Guard Unit

    ABBM2303

    Notify me when this product is available:

    Security Monitoring Station for ABB Door Entry Systems

    The ABB Guard Unit is a specialized video indoor station for the ABB Door Entry System, providing a security monitoring unit perfect for a central location in the home or a security guard location. Like standard video indoor stations, the Guard Unit offers audio communication and displays video from system cameras, including any connected analog cameras. Furthermore, it receives SOS emergency signals from other stations, and it can communicate with ANY station in the system. Finally, the Guard Unit also features an intercept mode, allowing the system to automatically route certain calls (as programmed, for example, by time of day) to this unit instead of other units for enhanced security.

    • Provides audio communication with any other station
    • 4.3" color touchscreen displays video from system cameras (module or analog)
    • Touchscreen and buttons provide quick acce
    • Manufacturer Part #: M2303
    • Display Resolution: 480 x 272
    • Display Size: 4.3 inches (10.92 cm)
    • Operating Temperature: 14° to 131°F (-10° to 55°C)
    • Storage Temperature: -40° to 158°F (-40° to 70°C)
    • Protection: IP30
    • Single-Wire Clamps: 2 x 0.28 mm2 – 2 x 1 mm2
    • Fine-Wire Clamps: 2 x 0.28 mm2 – 2 x 1 mm2
    • Bus Voltage: 20-30V
    • Dimensions: 5.67 x 7.795 x 1.77 inches (144 x 198 x 45 mm)
    • Warranty: 2 Years

    System Capacity

    • 9 Guard Units per System
    • 60 Buildings per System
    • 250 Indoor Stations per Building
    • 9 Outdoor Stations per Building (including gate and other outdoor stations)
