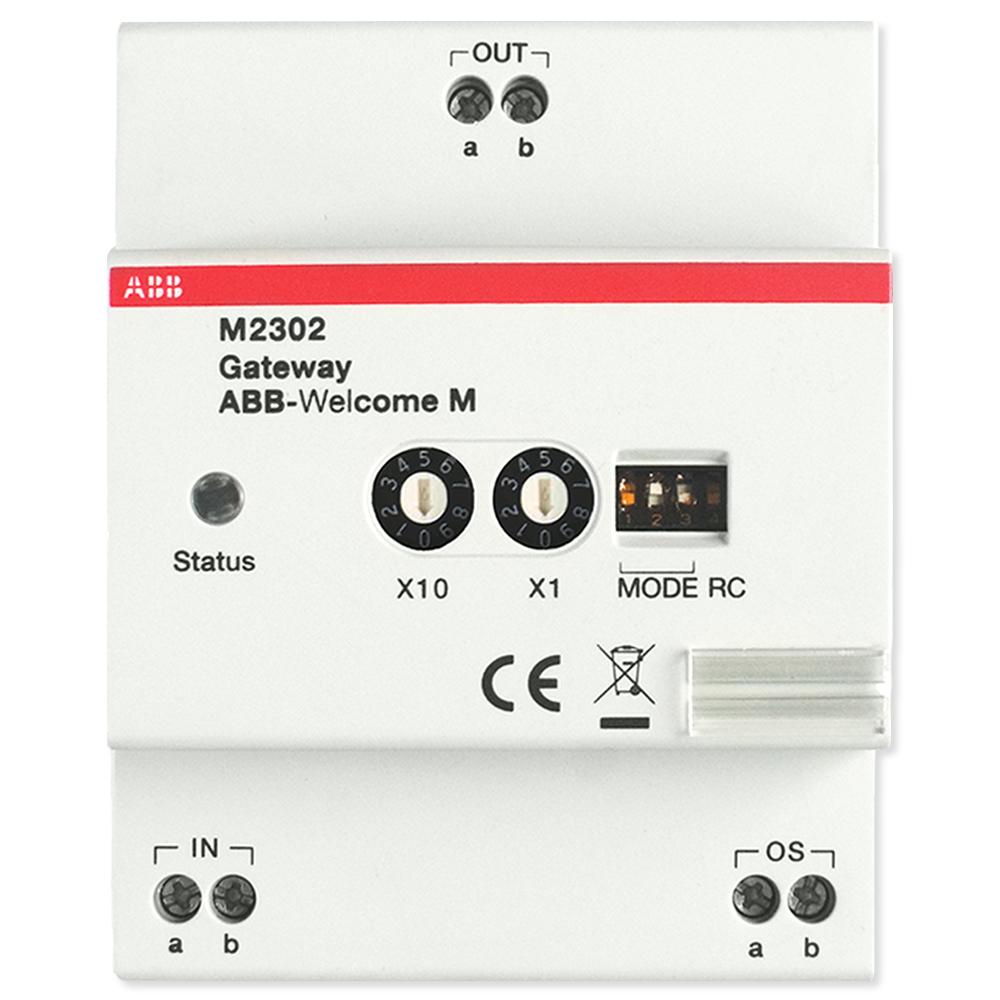

    ABB-Welcome Gateway

    ABB-Welcome Gateway

    ABBM2302

    $303.50

    Notify me when this product is available:

    Create Sub-Systems in the ABB Door Entry System

    The ABB Gateway is used to create sub-systems within a single ABB Door Entry System, or to amplify power or signal transmission. It offers five different modes to support various applications, which can be set by dipswitch. The Gateway must be wired into the System Controller (sold separately) and ideally should be mounted onto a DIN rail (not included) according to DIN EN 500022.

    5 Different Modes

    • Building: Enables one building as an independent sub-system (outdoor station(s)/guard unit(s) can be connected). Up to 60 such systems are supported within the whole system. The gateway address is equal to the riser number.
    • Floor: Enables a multi-apartment as an independent sub-system (another outdoor station can be connected, for example in front of the door of the floor with the multi-apartment). The gateway address
    • Manufacturer Part #: M2302
    • Operating Temperature: -13° to 131°F (-25° to 55°C)
    • Protection: IP20
    • Single-Wire Clamps: 2 x 0.28 mm2 – 2 x 1 mm2
    • Fine-Wire Clamps: 2 x 0.28 mm2 – 2 x 1 mm2
    • Bus Voltage: 20-30V
    • Dimensions: 3.54 x 2.83 x 2.56 inches
    • Warranty: 2 Years

    System Capacity

    • 9 Guard Units per System
    • 60 Buildings per System
    • 250 Indoor Stations per Building
    • 9 Outdoor Stations per Building (including gate and other outdoor stations)
    • 2 Locks per Outdoor Station

    »ABB M2302 Gateway Installation Manual (.pdf)»ABB Welcome Brochure (.pdf)»ABB Welcome M Door Entry System Brochure (.pdf)»ABB Welcome Door Entry System Manual (.pdf)
