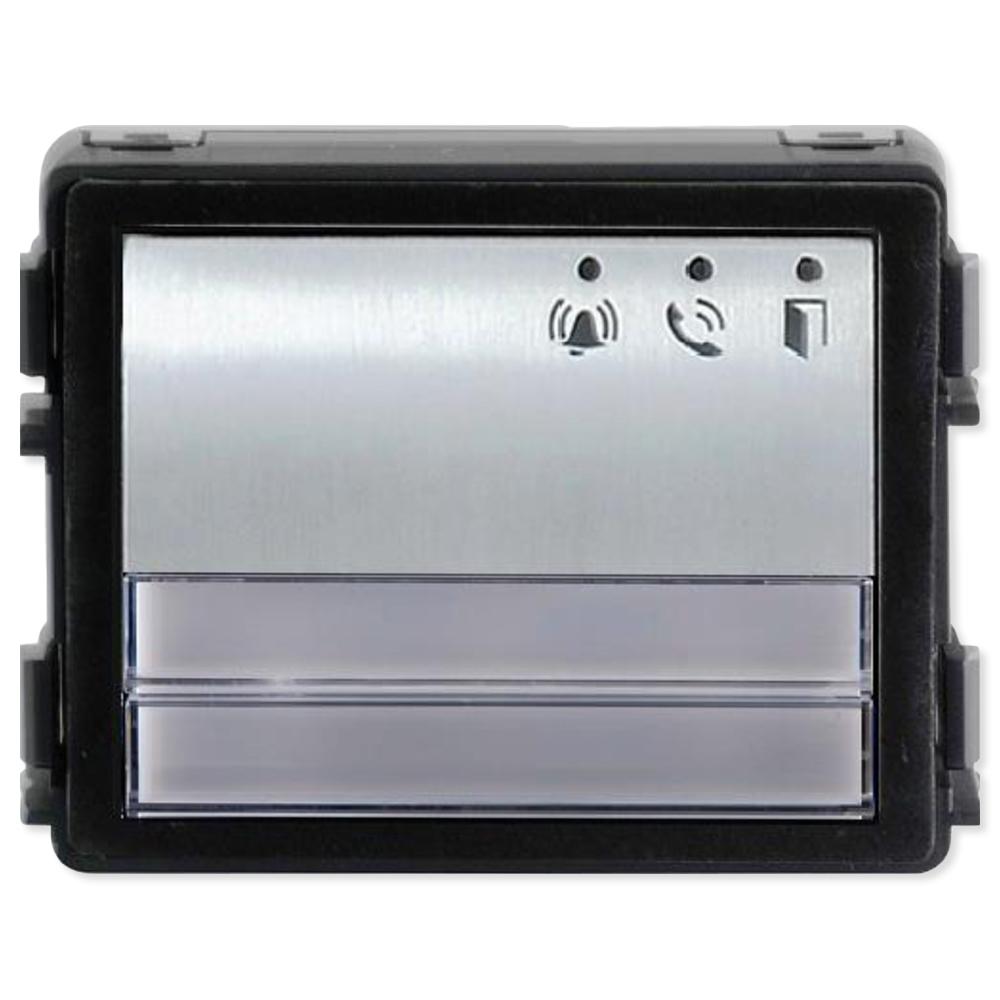

    ABB-Welcome Audio Module, 2-Row Pushbutton for 2/4 Calls

    ABB-Welcome Audio Module, 2-Row Pushbutton for 2/4 Calls

    ABBM251023AA

    $356.37

    Notify me when this product is available:

    Outdoor Station Module for ABB Door Entry Systems

    The ABB Audio Module with 2-Row Pushbutton for 2/4 Calls provides two-way communication with indoor stations and can optionally trigger an output in your ABB Door Entry System. With a built-in speaker and microphone hidden behind a solid aluminum face (no speaker holes), the module installs in a custom outdoor station to provide the system's required audio component. Communication can be established either by the resident at an indoor station, or by the visitor upon pressing one of the built-in pushbuttons.

    • Fulfills system's audio requirement in a custom outdoor station
    • Provides two-way communication with indoor stations
    • Built-in speaker, microphone, and two door lock terminals
    • Activated by indoor station or built-in pushbutton
    • Pushbuttons serve as single buttons or two-button rockers
    • Adjustable lock release time and speaker volume

    Product Features

    • 1 output for door opener without the need of additional power supply
    • 1 output for floating output, door opener (30V AC/DC 1A)
    • 1 input for door status check
    • 1 input for exit pushbutton

    Technical Details

    • Manufacturer Part #: M251023A-A
    • Operating Temperature: -40° to 158°F (-40° to 70°C)
    • Protection: Waterproof: IP54; Vandal-proof: IK 07
    • Power Supply: Door opener (Lock-GND): 18 V 4 A impulsive, 250 mA holding
    • Floating Output: Door opener (COM-NC-NO): 30 V AC/DC, 1A
    • Single-Wire Clamps: 2 x 0.28 mm2 – 2 x 1 mm2
    • Fine-Wire Clamps: 2 x 0.28 mm2 – 2 x 1 mm2
    • Bus Voltage: 20-30VDC
    • Di

    »ABB M25102xA Audio module Spec Sheet (.pdf)»ABB M25102 Outdoor Station Installation Manual (.pdf)»ABB Welcome Brochure (.pdf)»ABB Welcome M Door Entry System Brochure (.pdf)»ABB Welcome Door Entry System Manual (.pdf)
