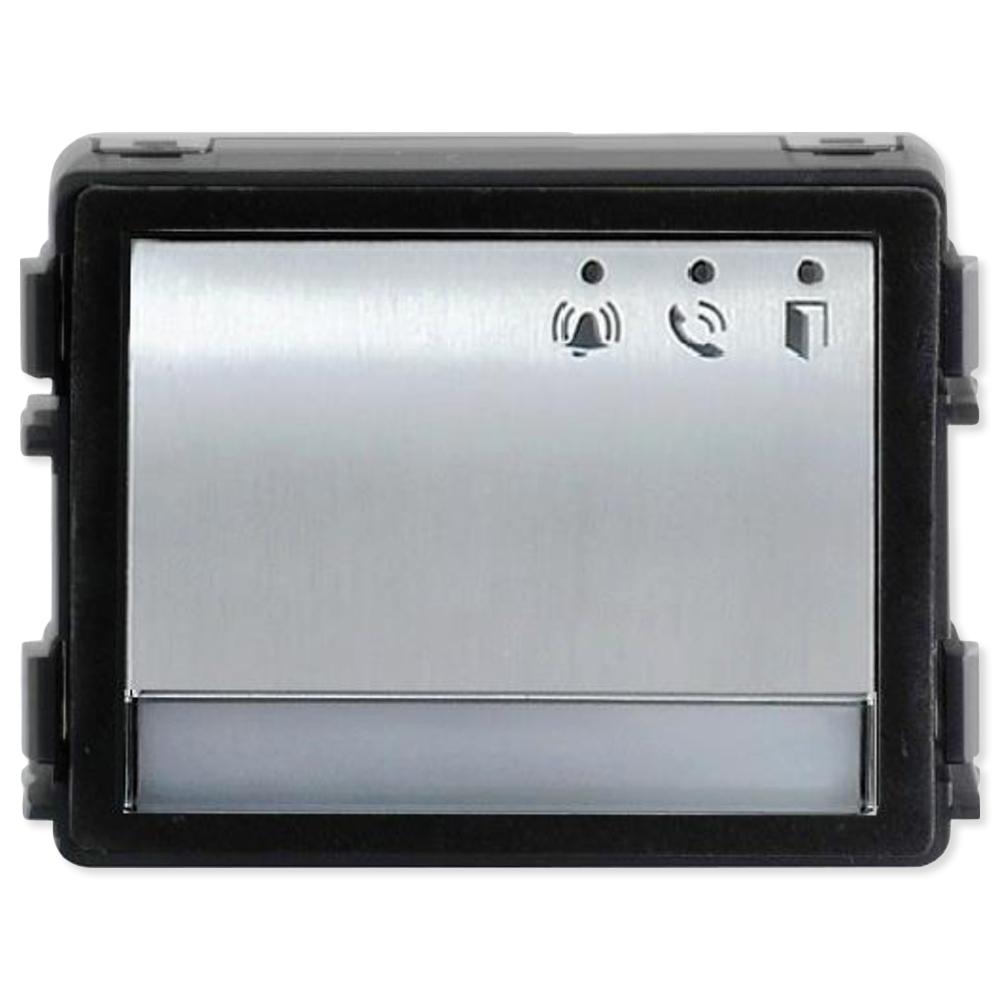

    ABB-Welcome Audio Module, 1-Row Pushbutton for 1/2 Calls

    ABB-Welcome Audio Module, 1-Row Pushbutton for 1/2 Calls

    ABBM251022AA

    $366.67

    Notify me when this product is available:

    Outdoor Station Module for ABB Door Entry Systems

    The ABB Audio Module with 1-Row Pushbutton for 1/2 Calls provides two-way communication with indoor stations and can optionally trigger an output in your ABB Door Entry System. With a built-in speaker and microphone hidden behind a solid aluminum face (no speaker holes), the module installs in a custom outdoor station to provide the system's required audio component. Communication can be established either by the resident at an indoor station, or by the visitor upon pressing the built-in pushbutton.

    • Fulfills system's audio requirement in a custom outdoor station
    • Provides two-way communication with indoor stations
    • Built-in speaker, microphone, and two door lock terminals
    • Activated by indoor station or built-in pushbutton
    • Pushbutton serves as a single button or two-button rocker
    • Adjustable lock release time and speaker volume
    • I

    Product Features

    • 1 output for door opener without the need of additional power supply
    • 1 output for floating output, door opener (30V AC/DC 1A)
    • 1 input for door status check
    • 1 input for exit pushbutton

    Technical Details

    • Manufacturer Part #: M251022A-A
    • Operating Temperature: -40° to 158°F (-40° to 70°C)
    • Protection: Waterproof: IP54; Vandal-proof: IK 07
    • Power Supply: Door opener (Lock-GND): 18 V 4 A impulsive, 250 mA holding
    • Floating Output: Door opener (COM-NC-NO): 30 V AC/DC, 1A
    • Single-Wire Clamps: 2 x 0.28 mm2 – 2 x 1 mm2
    • Fine-Wire Clamps: 2 x 0.28 mm2 – 2 x 1 mm2
    • Bus Voltage: 20-30VDC
    • Di

    »ABB M25102xA Audio module Spec Sheet (.pdf)»ABB M25102 Outdoor Station Installation Manual (.pdf)»ABB Welcome Brochure (.pdf)»ABB Welcome M Door Entry System Brochure (.pdf)»ABB Welcome Door Entry System Manual (.pdf)
