  • Seco-Larm Enforcer HDMI Extender Over Single Cat5e/6

    SEMVEAH1E101NQ

    Notify me when this product is available:

    Use Cat5e/6 Cable To Extend Your HDMI Signal

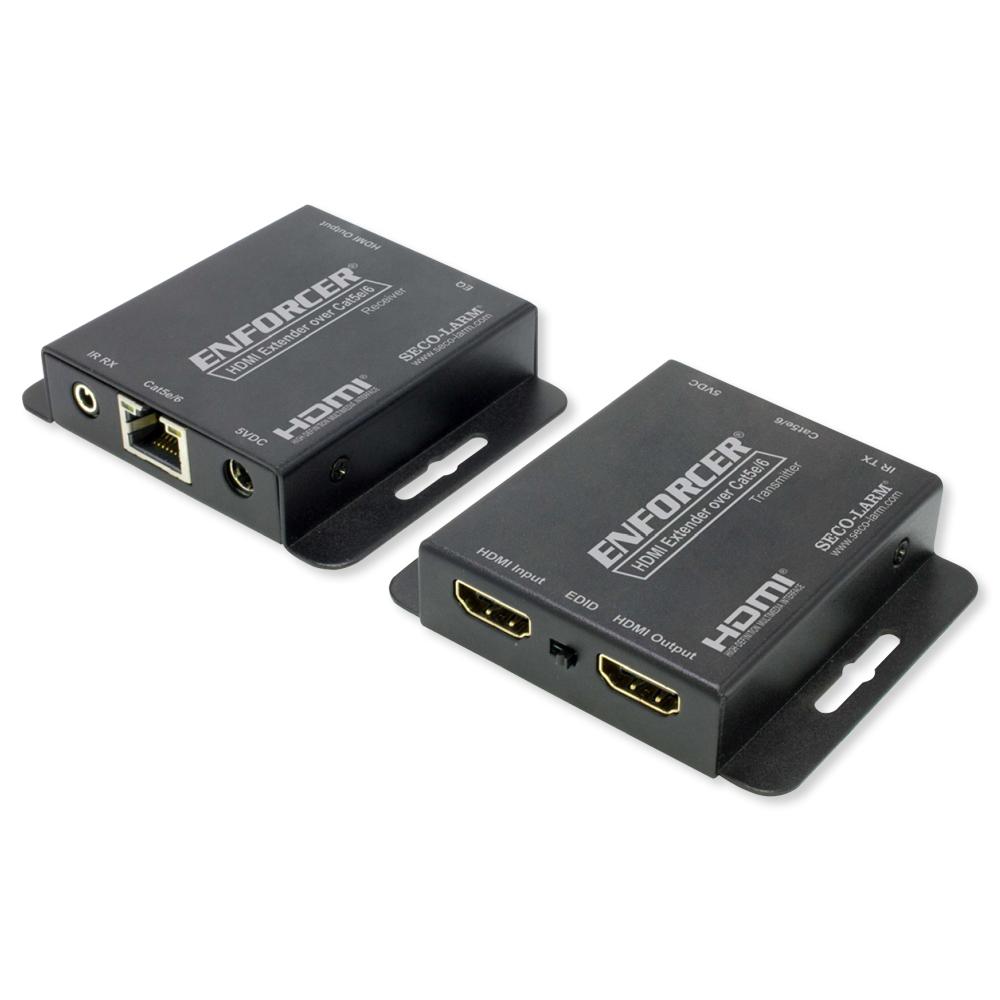

    Take HDMI audio/video signals further with the Seco-Larm Enforcer HDMI Extender over Single Cat5e/6. It uses only one Cat5e/6 cable (not included) to transmit clear HDMI audio/video signals up to 164 feet (50m) from source to display. It comes with both the transmitter and receiver, two power supplies, one IR transmitter, and one IR receiver.

    • Extends HDMI signals up to 164 feet (50m)
    • Supports resolutions from 480i to 1080p with zero signal loss
    • Transmits over a single Cat5e/6 cable
    • Includes IR extender to maintain remote control
    • Status LEDs indicate power and link status

    The Seco-Larm HDMI Extender over Single Cat5e/6 supports resolutions from 480i to 1080p with zero signal loss, has an HDMI Loop output for local HDMI display, includes an EDID Management switch, and features an IR Pass-through for remote control extension and operation. This me

    • Manufacturer Part #: MVE-AH1E1-01NQ
    • Input Video Signal: 3.3V
    • Input DDC Signal: 5Vp-p (TTL)
    • Maximum Single Link Range: 1080p
    • Deep Color: 24bit
    • Video Formats Supported: High-speed HDMI, HDCP 1.2
    • Audio Formats Supported: LPCM, Dolby-AC3, DTS7.1, DSD
    • Output Video: HDMI
    • Resolutions Supported: 1080p/1080i/720p/576p/576i/480p/480i
    • Range – 1080p: Up to 164 feet (50m)
    • Video Amplifier Bandwidth: 4.95Gbps
    • Video Input Connector: HDMI Type A 19-pin female
    • Maximum Input Cable Length: 24AWG (15m), 26AWG (10m), 28AWG (5m)
    • Video Output Connector: HDMI Type A 19-pin female
    • Maximum Output Cable Length: 24AWG (15m), 26AWG (10m), 28
