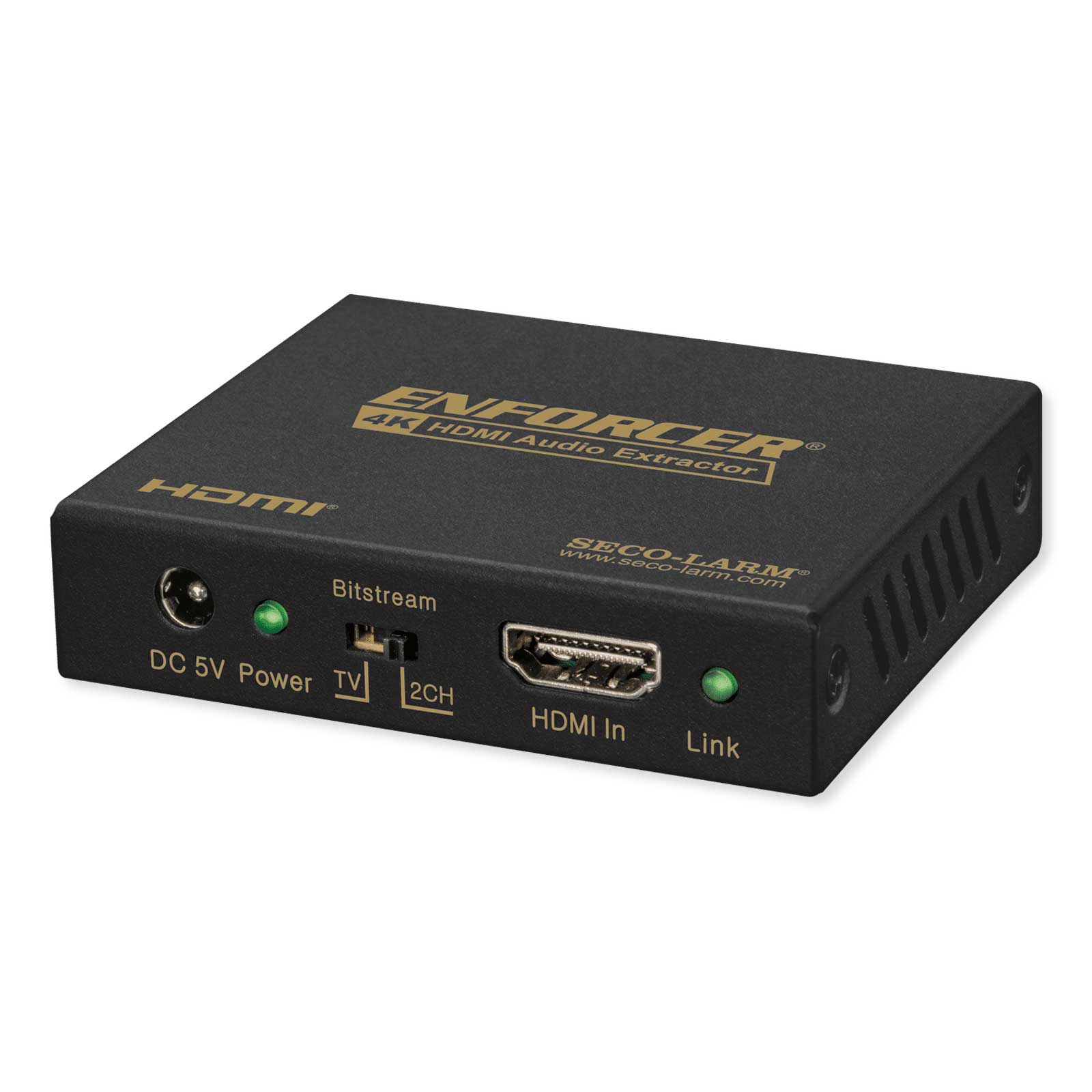

  • Seco-Larm ENFORCER 4K HDMI Audio Extractor

    SEMAPA59901Q

    Extract Audio Signals From Any HDMI Source

    Ensure the audio signal from one HDMI source is properly transferred to an audio system or receiver with the Seco-Larm Enforcer 4K HDMI Audio Extractor. This HDMI extractor can extract audio signals from any HDMI source and transfer the signals via digital optical or analog stereo outputs to other devices such as an amplifier, a speaker, or a UHD display. The 4K HDMI Audio Extractor supports video resolutions up to 4K2K @ 50/60Hz, HDMI High Bit Rate (HBR) audio pass-through, and allows simultaneous connections of HDMI audio, multi-channel optical S/PDIF, and L/R analog stereo audio. This extractor also supports uncompressed audio LPCM, CEC bypass, and compressed audio DTS Digital and Dolby Digital (DTS-HD and Dolby True HD).

    • Extracts audio signals from an HDMI source to optical (S/PDIF) or L/R analog stereo audio sources
    • Video resolutions supported up to 4K2K@50/60Hz
    • HDMI 2
    • Manufacturer Part #: MAP-A599-01Q
    • UPC: 676544022640
    • Video Formats Supported: HDMI 2.0b, HDCP 2.2
    • Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
    • Color Depth: 10bit, 12bit
    • EDID Management: includes three presets – TV, bitstream, and 2-channel
    • Audio Formats Supported: HDMI (Pass-through): LPCM 2.0/5.1//7.1, Dolby Digital, DTS 5.1, Dolby TrueHD, Dolby Digital Plus (DD+), DTS HD Master, Dolby Atmos, DTS-X Optical: LPCM 2.0/5.1, Dolby Digital 2.0/5.1, DTS 2.0/5.1
    • L/R Audio Formats: Analog stereo 2CH
    • Output Video: HDMI
    • Resolutions Supported: 4K2K@50/60Hz, 4K2K@30Hz, 1080p@120Hz, 1080p 3D@60Hz
    • Video Bandwidth: 18Gbps
    • Inputs: HDMI Type A 19-pin female
    • Outputs: Video: HDMI T
