    Home / Chief Manufacturing / Chief THINSTALL Swing Arm Display Mount, 9.85 In. Extension, 10-32 In.

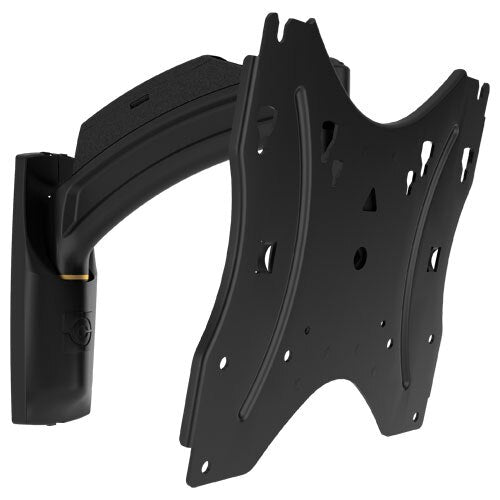

    Chief THINSTALL Swing Arm Display Mount, 9.85 In. Extension, 10-32 In.

    Chief THINSTALL Swing Arm Display Mount, 9.85 In. Extension, 10-32 In.

    CMTS110SU

    $118.36

    Notify me when this product is available:

    Extends Outward Up To 9.85 Inches

    The Chief THINSTALL Swing Arm Display Mount (9.85" Extension, 10-32") features an ultra-low profile that collapses down to 1.5 inches (38 mm), creating an exceptionally flush installation for any type of TV, including LED, LCD and Plasma. The mount is easily installed by a single person. Simply mount the top rail and slide on the assembly to create the perfect TV mount solution.

    • Lightweight, low-profile wall mount for TVs measuring 10-32 inches
    • Extends outward up to 9.85 inches with 12 degrees of tilt
    • Integrated cable management makes it easy to route power and signal cables
    • Steel stud mounting possible with series PAC115, using two studs only

    The mount extends outward up to 9.85 inches to maximize the viewing area. Pull out your TV when everyone needs to see, then push it back against the wall. In addition to flexible extension, the THINSTALL mount als

    • Certifications: UL
    • Color: Black
    • Maximum Extension: 9.9 inches (251mm)
    • Minimum Depth: 1.5 inches (38mm)
    • Mounting Pattern Compatibility (Universal Versions): 75 x 75, 100 x 100, 200 x 100, 200 x 200mm
    • Orientation: Landscape, Portrait
    • Overall Dimensions: 9.3(H) x 14(W) x 1.5(D) inches (237 x 356 x 38mm)
    • Pivot: ±90 degrees (depending on screen width)
    • Post-Installation Leveling (Roll): Yes
    • Weight: 6.3 pounds
    • Solution Type: Universal
    • Tilt: +0 degrees, -12 degrees
    • Typical Screen Sizes: 10 to 32 inches
    • Wall Stud Compatibility: Single Stud
    • Weight Capacity: 35 pounds (15.9kg)

    »Chief TS110SU Thinstall Swing Arm Display Mount Spec Sheet (.pdf)»Chief TS110SU Thinstall Swing Arm Display Mount Installation Manual (.pdf)»Chief TS110SU Thinstall Swing Arm Display Mount Technical Drawing (.pdf)
