    WaterCop WCDNM — Classic Non-Motorized Control Unit Dimension Drawing

    September 08, 2026 1 min read

    Engineering dimension drawing for the WaterCop WCDNM Classic non-motorized control/receiver unit.

    đź’ľ Download Original PDF
    Full text manual (for reference)

    Engineering dimension drawing for the WaterCop® Classic Non-Motorized Control Unit (WCDNM), part of DynaQuip's WaterCop® automatic water shut-off system.

    Overview

    The WCDNM is the control/receiver enclosure for a WaterCop® Classic automatic water shut-off system. It's the "non-motorized" designation because the unit itself doesn't drive a valve motor directly — instead, it acts as the wireless (418 MHz) controller/receiver that interfaces with a separate motorized valve actuator via its auxiliary I/O port and cabled outputs.

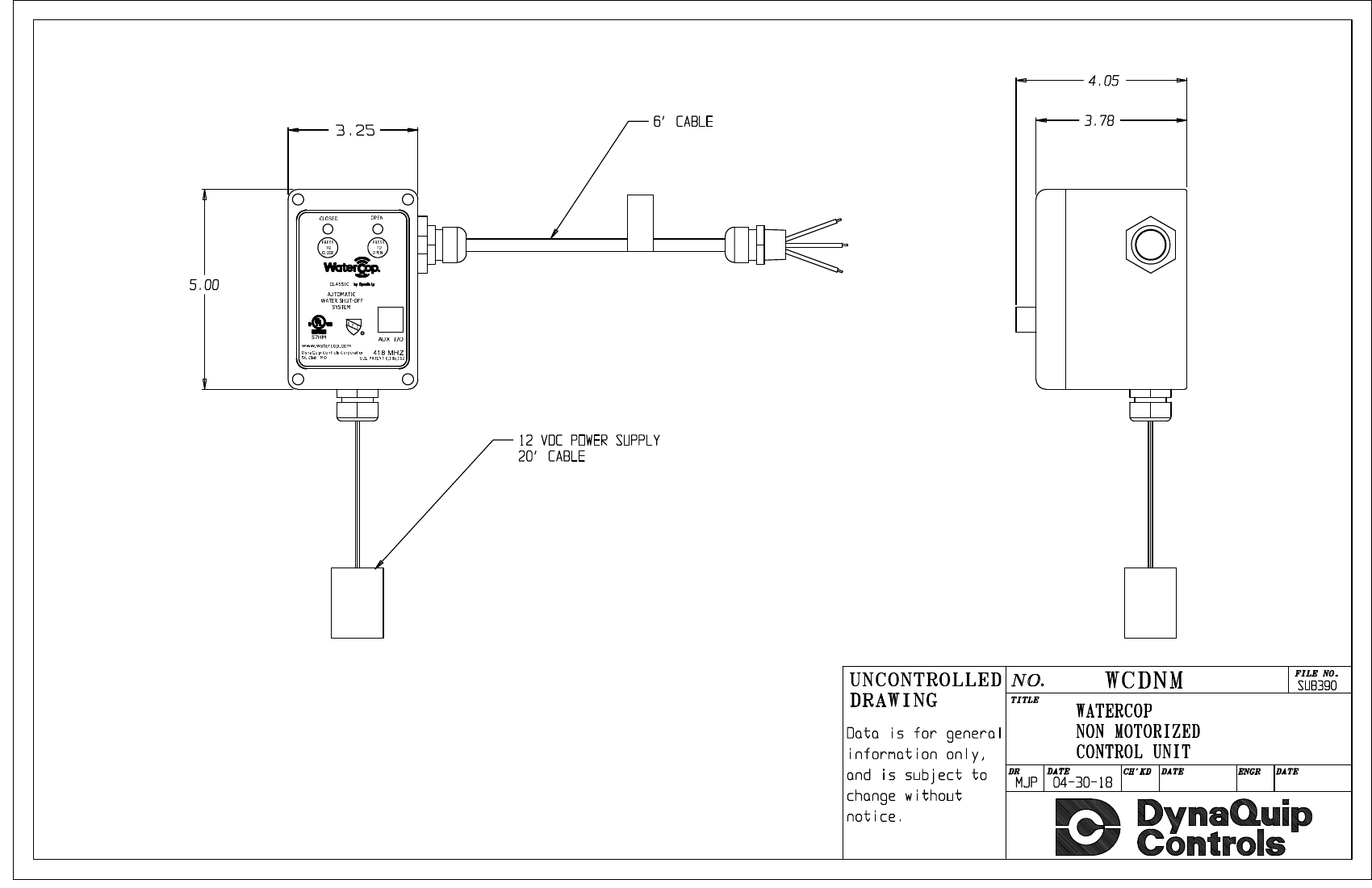

    WaterCop WCDNM control unit dimension drawing, front and side views
    Front and side view engineering drawing showing overall dimensions, panel layout, and cable connections for the WCDNM control unit.

    Enclosure Dimensions

    Height 5.00 in.
    Width 3.25 in.
    Overall Depth 4.05 in.
    Inner Body Depth 3.78 in.

    Front Panel Features

    • "CLOSED" and "OPEN" status indicator LEDs
    • "PRESS TO CLOSE" and "PRESS TO OPEN" buttons
    • WaterCop® Classic by DynaQuip branding
    • "AUTOMATIC WATER SHUT-OFF SYSTEM" labeling
    • UL/CSA certification mark (c-UL-us)
    • Wireless frequency rating: 418 MHz
    • "AUX I/O" port

    Cable Specifications

    • 6-ft output cable — terminates in three loose wire leads for valve/motor or relay connections
    • 12VDC power supply cable — 20 ft long, terminating in a rectangular power adapter/plug block

    Manufacturer

    WaterCop® by DynaQuip — visit watercop.com or call 800-545-3636 for more information or to order.
