Splitter | Wall Plate — Wiring Diagram

Wiring diagram for the Splitter | Wall Plate™ (SWP) — shows how the SWP simplifies a typical HDTV / cable modem / router installation by eliminating a connector cable and two connections compared to a conventional splitter setup.

What the Splitter | Wall Plate™ Eliminates

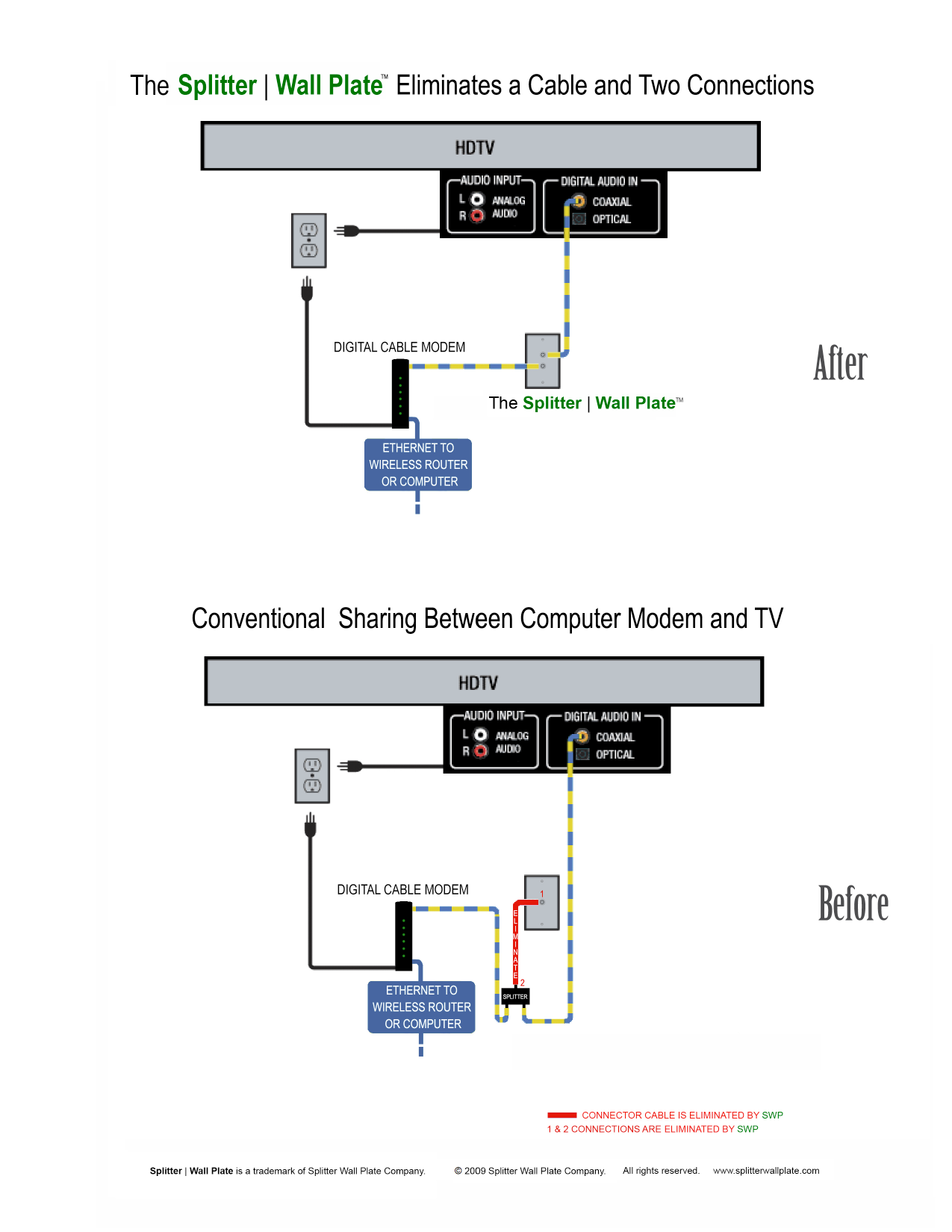

The diagram below compares a conventional "before" wiring setup (using a separate splitter and wall plate with two connection points) against the simplified "after" setup using the Splitter | Wall Plate™, which combines the splitter and wall plate into a single component.

Before (Conventional Setup)

• HDTV connects to a digital cable modem via coax, routed through a wall plate with a separate splitter and two visible connection points.
• The cable modem connects to a wireless router or computer via Ethernet.

After (With Splitter | Wall Plate™)

• The Splitter | Wall Plate™ combines the splitter function directly into the wall plate, eliminating a separate connector cable and the two connections it required.
• The HDTV and cable modem connect through the SWP; the modem connects onward to a wireless router or computer via Ethernet, same as before.

Key Benefit

By integrating the splitter into the wall plate itself, the SWP removes one connector cable and two connection points from the signal path — reducing points of signal loss and simplifying installation.

Manufacturer

Splitter | Wall Plate is a trademark of Splitter Wall Plate Company. www.splitterwallplate.com
