Sensative Strips Drip 800 — Water Leak & Temperature Sensor Specifications
Product overview, technical data, and Z-Wave specifications for the Sensative Strips Drip 800 water leak and temperature sensor.
Full text manual (for reference)
Product overview, technical data, and Z-Wave specifications for the Sensative Strips Drip 800 water leak and temperature sensor — the 800-series generation with extended battery life and range.
Overview

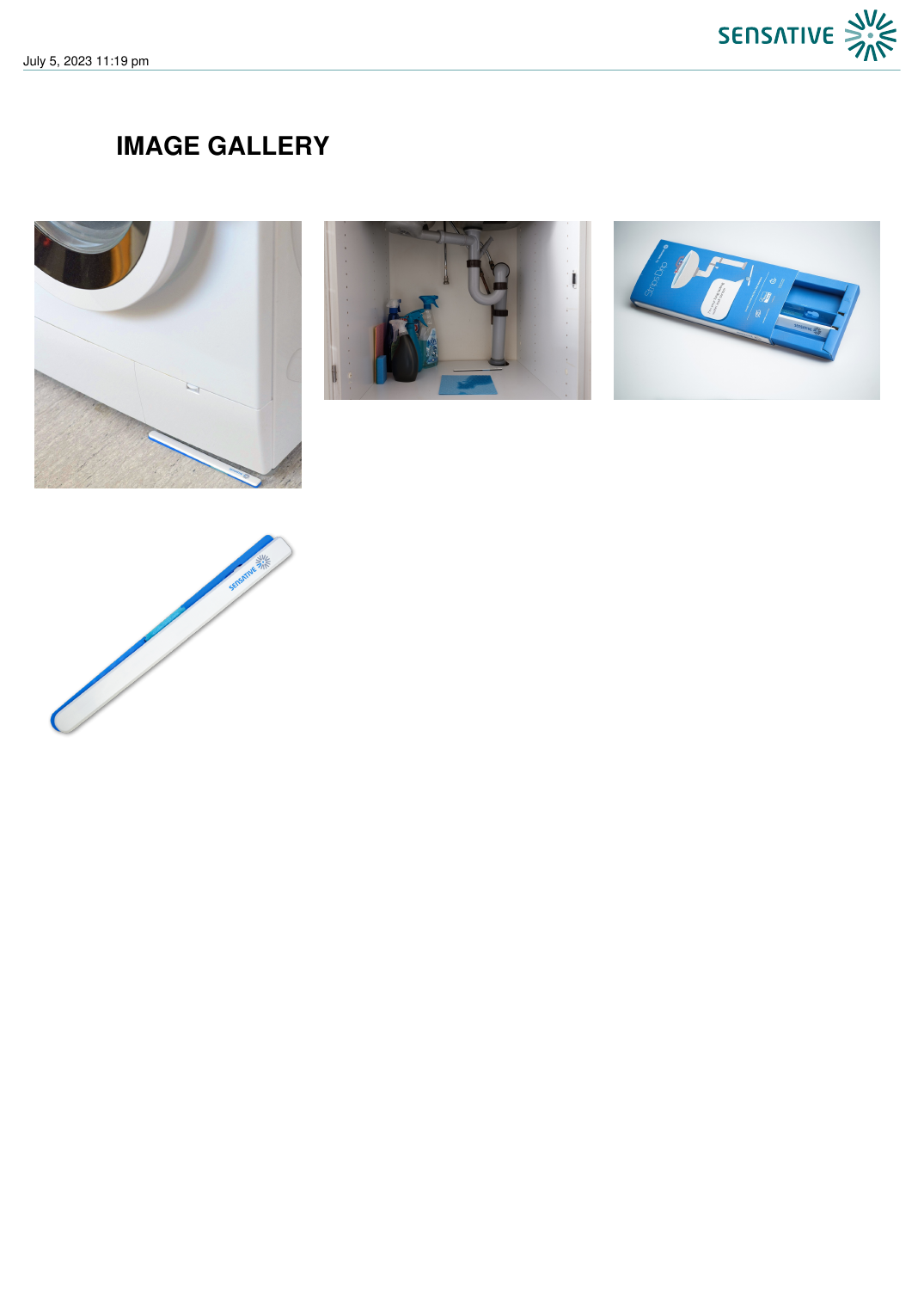

Strips Drip 800 is ideal for placing anywhere a water leak might occur. With low power consumption and a battery life of up to 10 years, it's built for installing in tight spaces — under sinks, behind appliances, near water heaters — where water leaks might occur. It also monitors temperature to detect freezing pipes, with a sturdy design suited for challenging environments like cellars or outdoor areas. Its discreet design and easy adhesive-backed mounting make it a favorite for architects and design-conscious homeowners.
Top Features
- Water leak detection
- Temperature monitoring and freeze alerts
- Indoor or outdoor use
- Ultra-thin (3mm / 0.11in) design
- Up to 10-year battery lifetime
- Up to 100m range
- Easy installation with adhesive backing
- SmartStart for fast provisioning
- S2 Secure Encryption
Description
Strips Drip 800 offers a range of up to 100 meters and a sturdy design suitable for environmentally challenging areas like cellars or under-roof outdoor spaces where water might leak into the house structure. It's one of the first sensors on the market with the latest Z-Wave 800-series technology, and comes with SmartStart to reduce installation time for service providers, installers, and end-users — along with extended range, increased security, and longer battery life than earlier generations.
Through a smart home or building system, you'll be updated in real time whenever water is detected. Its temperature measurement (accurate to ±4°C) also tracks alarming heat levels or freezing conditions, enabling real-time alerts so you can take action — such as activating an alarm or automatically shutting off the water supply.
Top Benefits
- Discreet design (6mm)
- No maintenance — up to 10 years battery life
- Long range (100m direct)
- Simple installation
- Encrypted communication
Specifications
| Attribute | Value |
|---|---|
| Application | Water leak detection |
| Benefits | Invisible design (<3mm), no maintenance (10 years), long-range (100+ meters), simple installation & mounting, encrypted communication, 10+ years battery life |
| In/outdoor usage | Indoor |
| Sensors | Water leak, temperature |
| Frequency | EU (868 MHz) or US (915 MHz) |
| Protocol / connectivity | Z-Wave, 800 Series |
| Z-Wave security | S2 Security |
| Z-Wave functionality | Smart Start |
| IP class | IP65 |
| Dimensions | Width 15mm, Depth 195mm, Height 6mm |
Patents
Sensative Strips are protected by one or more patents including: Sweden SE 537 509; Europe 3053152, EP 3 670 811 B1; USA 9,953,496; 10,720,033; 11,170,617.
Manual & Support
Full manual: public.yggio.net/docs/strips/drip700
Manufacturer
Sensative AB · Mobile Heights Center, Lund, Sweden · www.sensative.com
