SECO-LARM E-941S-600/ZQ — Z-Bracket for 600 Lb Maglock Diagram

Dimensional/mounting reference for the SECO-LARM ENFORCER® E-941S-600/ZQ Z-Bracket, used to mount a 600 lb electromagnetic lock (maglock) on doors where a standard flush mount isn't possible — typically for outswing or narrow-frame door applications.

What's Included

• Upper bracket (mounts to the door frame/header)
• Lower bracket (mounts to the maglock body), offset with a bent "Z" profile

Bracket Dimensions

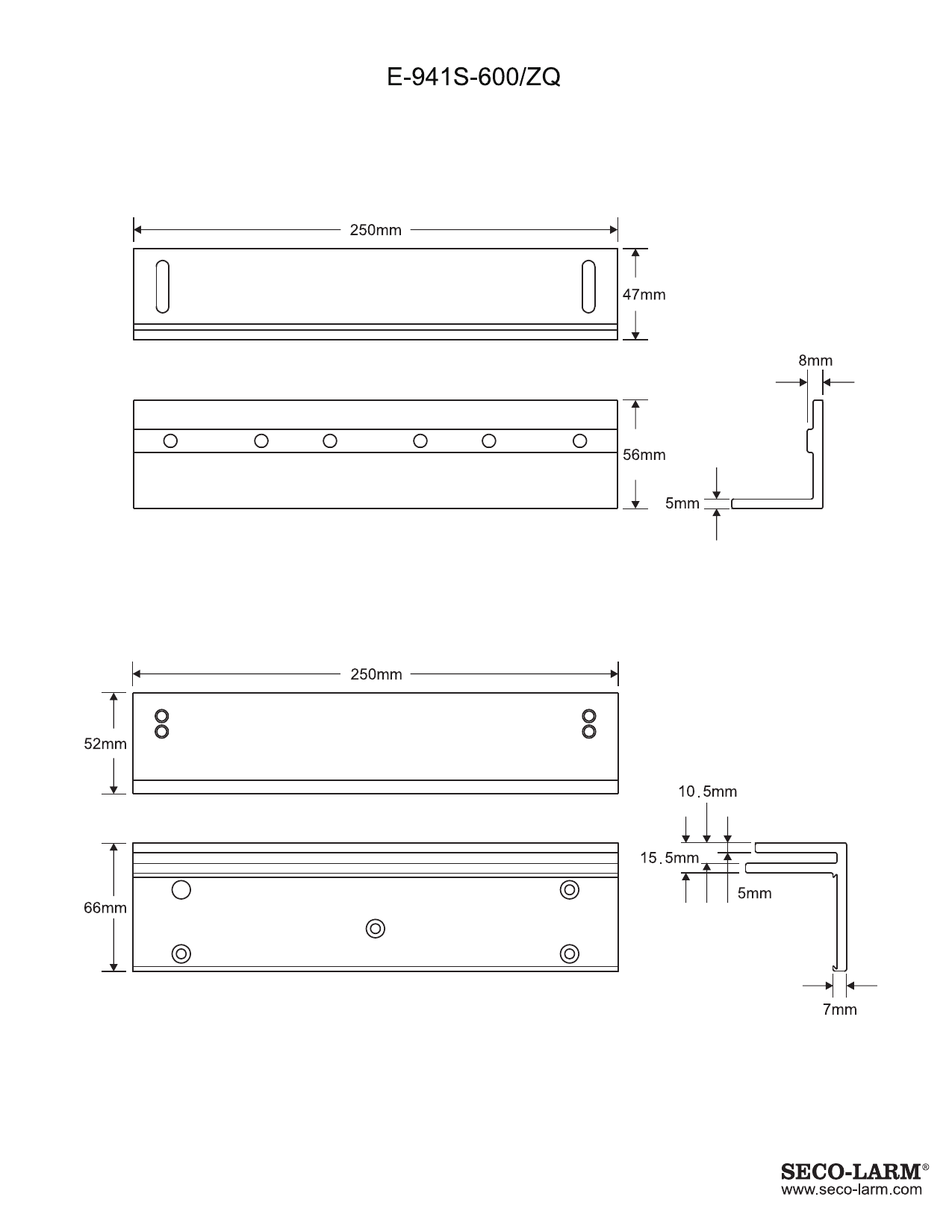

• Upper bracket: 250mm (9.8") long, 47mm front-view height, 56mm top-view height; two elongated mounting slots plus six round fastener holes along the bar; L-profile flange 8mm wide, 5mm material thickness.
• Lower bracket: 250mm (9.8") long, 52mm front-view height, 66mm side-view height; paired mounting holes near each end plus a center hole; bent flange dimensions 10.5mm / 15.5mm step offset, 5mm material thickness, 7mm return flange width.

Installation Notes

• The Z-bracket's bent profile lets the maglock sit offset from the frame — useful when the door swings out or the frame doesn't allow a direct flush mount.
• Match hole spacing exactly to the drawing above when marking/drilling the mounting surface, and to the specific 600 lb maglock's own bracket pattern.
• Use with SECO-LARM's 600 lb ENFORCER maglock line; not intended as a universal maglock bracket — confirm compatibility with your specific maglock model before installing.
