    SECO-LARM E-941S-1K2/ZQ — Z-Bracket for 1,200 Lb. Maglock Diagram

    September 08, 2026 1 min read

    Mechanical diagram for the SECO-LARM ENFORCER E-941S-1K2/ZQ Z-Bracket, designed for mounting a 1,200 lb. magnetic lock.

    💾 Download Original PDF 🛒 View Product
    Full text manual (for reference)

    Mechanical diagram for the SECO-LARM ENFORCER® E-941S-1K2/ZQ Z-Bracket, designed for mounting a 1,200 lb. magnetic lock (maglock).

    Overview

    The E-941S-1K2/ZQ Z-Bracket is an L-shaped mounting bracket used with SECO-LARM's 1,200 lb. rated electromagnetic door locks, allowing installation on doors and frames where a standard flat mounting surface is not available (such as outward-swinging doors). The bracket provides the offset geometry needed to properly align the maglock and armature plate.

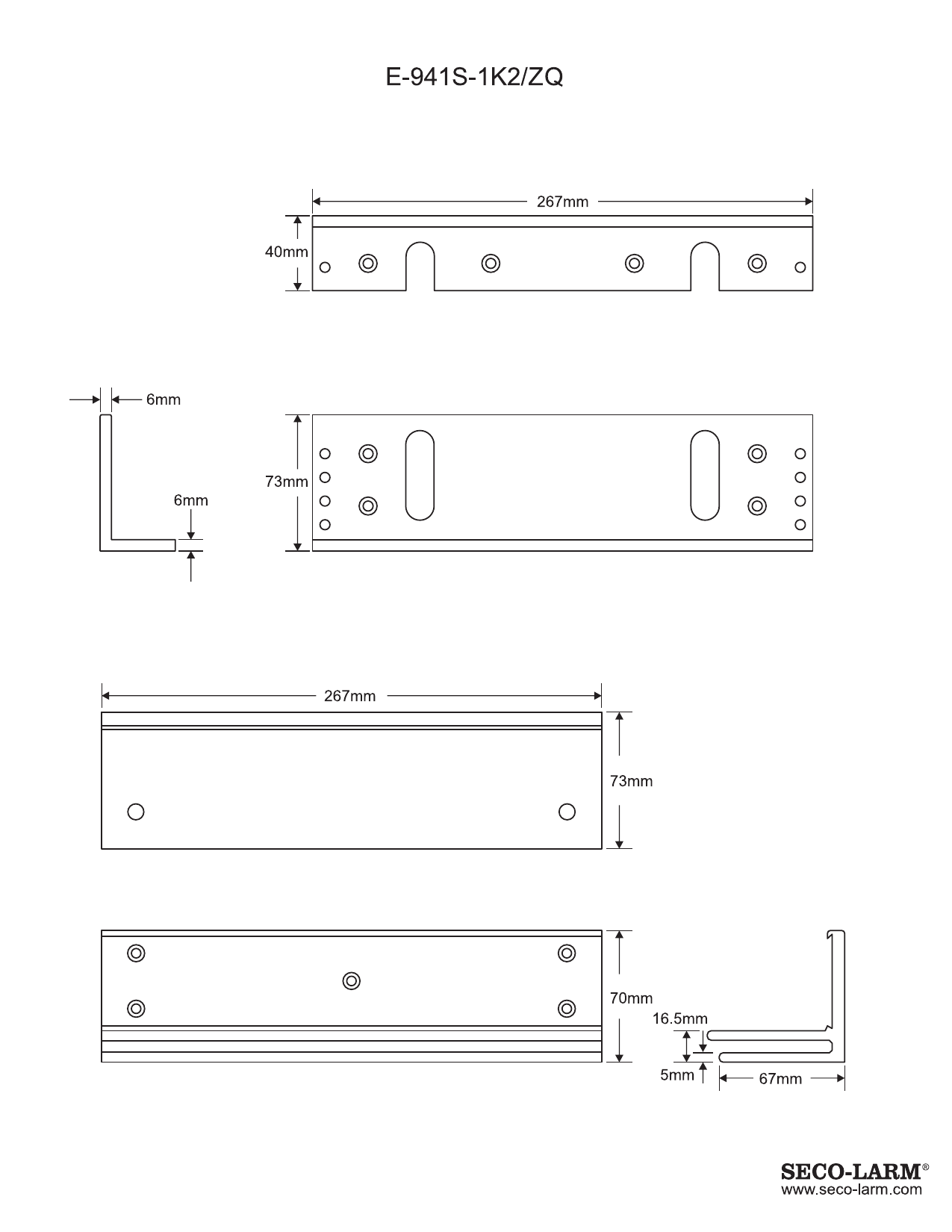

    SECO-LARM E-941S-1K2/ZQ Z-Bracket mechanical diagram showing top, front, side, and bottom views with mounting hole dimensions
    Mechanical diagram: top, front, side (L-bracket angle profile), and bottom views with mounting hole layout

    Design Details

    • Top plate: approx. 267mm (L) x 40mm (H)
    • L-bracket angle profile: 6mm x 6mm
    • Main bracket side profile: approx. 73mm (H) x 267mm (W)
    • Bottom panel: approx. 267mm (L) x 73mm (H)
    • Rail/track profile with end cap detail, approx. 70mm (H) x 67mm (D)
    • Multiple mounting holes (plain and countersunk) and slotted holes for adjustable alignment

    Refer to the diagram above for the exact hole spacing and bracket geometry when planning an installation.

    Compatible Use

    Designed for use with SECO-LARM's 1,200 lb. rated maglocks for door and gate access control applications where a standard mounting configuration isn't suitable.

    Manufacturer

    SECO-LARM U.S.A., Inc., 16842 Millikan Avenue, Irvine, CA 92606. Phone: (949) 261-2999 / (800) 662-0800. Website: www.seco-larm.com.
