PulseWorx KPLD/KPLR 6/7/8 Keypad Load Controllers — Specifications
Specification sheet for the PulseWorx KPLD/R 6/7/8 Keypad Load Controllers — combination Keypad Controller and Light Dimmer/Relay units.
Full text manual (for reference)
Specification sheet for the PulseWorx KPLD/R 6/7/8 Keypad Load Controllers — an all-in-one Keypad Controller and Light Dimmer/Relay combination device from Powerline Control Systems (PCS).

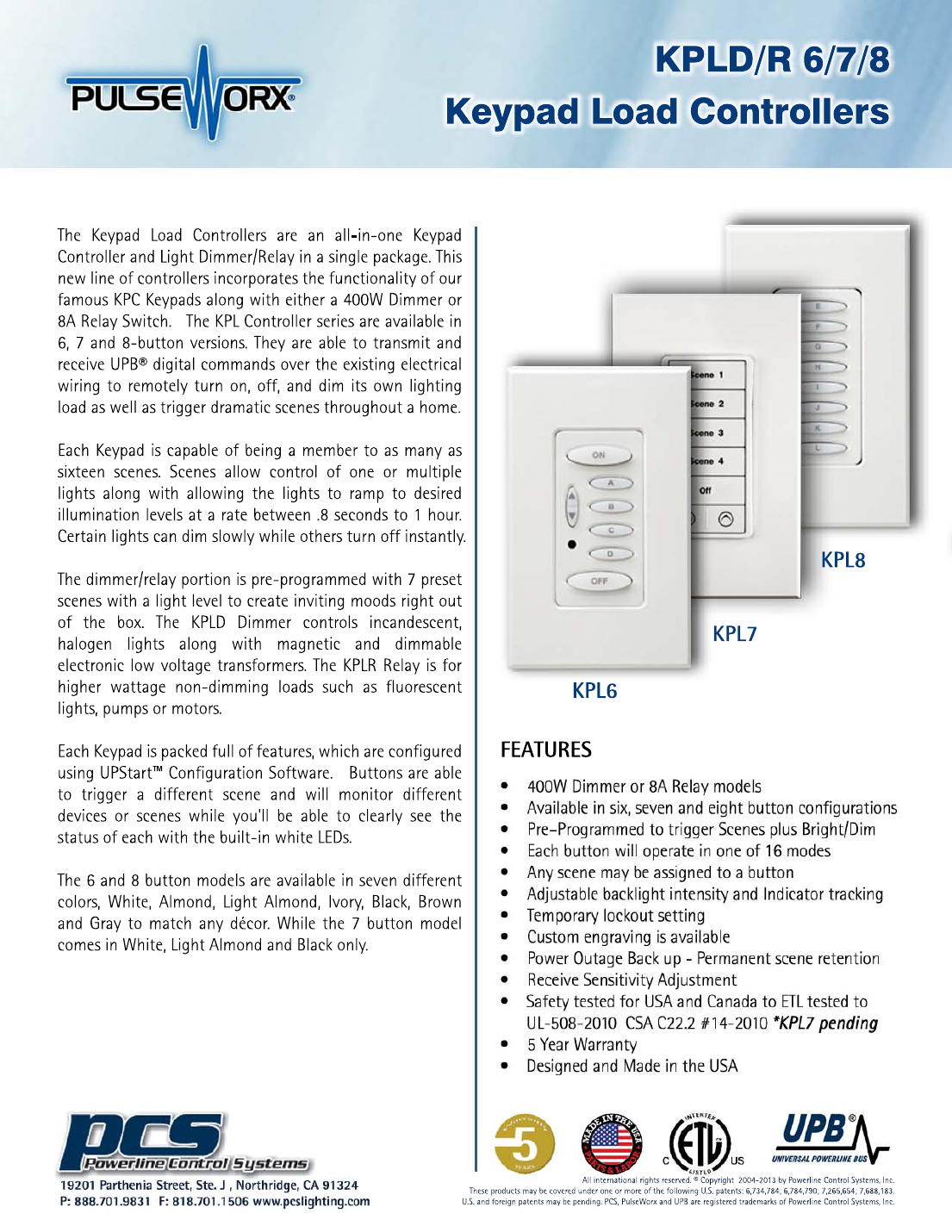

Overview
The KPL Series combines a PulseWorx UPB Keypad Controller (KPC) with either a 400W dimmer (KPLD) or an 8A relay switch (KPLR), available in 6-, 7-, and 8-button versions. The unit controls its own on/off/dim function while also transmitting UPB® digital commands over the home's existing electrical wiring to trigger scenes throughout the house.
- Each keypad can be a member of up to sixteen scenes, with ramp rates from 0.8 seconds to 1 hour
- The dimmer/relay comes pre-programmed with 7 preset scenes
- KPLD (Dimmer): works with incandescent, halogen, magnetic, and dimmable electronic low-voltage transformers
- KPLR (Relay): designed for higher-wattage non-dimming loads (fluorescent ballasts, pumps, motors)
- Configured via PulseWorx UPStart™ Configuration Software
- Built-in white LEDs monitor device/scene status, with adjustable backlight intensity and indicator tracking
- 16 operating modes per button; any scene assignable to any button
- Temporary lockout setting; custom engraving available
- Power outage backup with permanent scene retention; receive sensitivity adjustment
Models & Colors
| Model | Description |
|---|---|
| KPLD-6(X) | 6-Button Dimmer |
| KPLR-6(X) | 6-Button Relay |
| KPLD-7(X) | 7-Button Dimmer |
| KPLR-7(X) | 7-Button Relay |
| KPLD-8(X) | 8-Button Dimmer |
| KPLR-8(X) | 8-Button Relay |
Color codes (X): White (W), Almond (A), Light Almond (LA), Ivory (I), Black (B), Brown (BR), Gray (G). The 7-button (KPL7) model is only available in White, Black, and Light Almond.
Electrical Specifications
| Spec | Value |
|---|---|
| Power | 120 VAC, 50/60Hz single phase (neutral wire required) |
| Max Load | KPLD (dimmer): 400W | KPLR (relay): 8A |
| Compatible Loads | Incandescent, LED, halogen, fluorescent ballast, induction, magnetic, dimmable electronic transformers |
| Relay Lifetime | 100,000 on/off cycles |
| Transmission Channels | 6, 7, or 8 assignable scenes/links |
| Wiring | 16 AWG, 105°C insulation — Black=Hot/Line, White=Neutral, Red=Load, Green=Ground |
| Standby Power | <0.8 Watts |
| Environmental | Indoor use only; -40°F to 140°F; 10-90% RH non-condensing |
| Certifications | UL508, CSA C22.2 #14-2010 (KP7 pending), ETL/cETL |

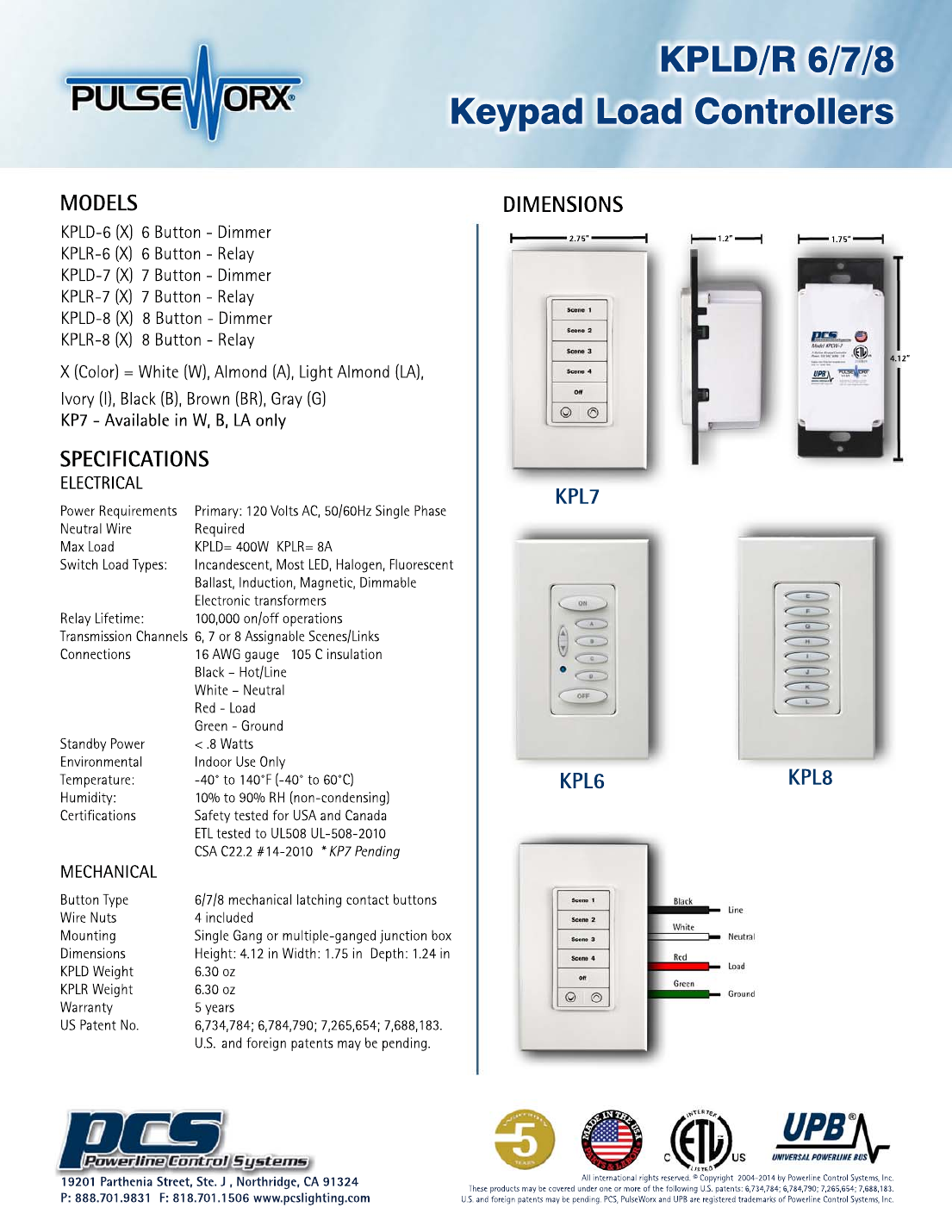

Mechanical Specifications
| Spec | Value |
|---|---|
| Button Type | Mechanical latching contact buttons |
| Included Hardware | 4 wire nuts |
| Mounting | Single or multi-gang junction box |
| Dimensions | Height 4.12" x Width 1.75" x Depth 1.24" |
| Weight | 6.30 oz (both KPLD and KPLR) |
| Warranty | 5 years |
Manufacturer
Powerline Control Systems (PulseWorx), 19201 Parthenia Street, Northridge, CA — designed and made in the USA. UL-508/CSA safety certified.
