Application datasheet for the OPTEX Bridge CKB-304 — an intelligent visual monitoring bridge that connects OPTEX security sensors to existing alarm panels and video systems for visual verification of alarm events.
Overview
The CKB-304 Bridge is backward compatible with all existing alarm panels and compatible with all DVR/NVR and ONVIF-compliant cameras, enabling visual confirmation of a detection event when paired with OPTEX's range of laser, active, and passive infrared sensors.
Compatible OPTEX Sensor Lines
| Series | Category | Details |
|---|---|---|
| RLS-2020 Series | High Security | REDSCAN Mini laser scan series. Indoor & outdoor, ideal for above-ceiling/below-floor detection, rooftop, wall, gate, or perimeter. RLS-2020S: 97.5ft radius, 95° detection, outdoor/indoor. RLS-2020i: 65 x 65ft, 95° detection. |
| RLS-3060 Series | High Security | REDSCAN laser scan series. Detects object size, speed, and distance for high-reliability detection with minimal false alarms. 190° detection arc, vertical & horizontal mounting. RLS-3060SH: up to 165ft h. coverage. RLS-3060L: up to 100ft h. coverage. |
| SL-350QFRi | Perimeter | 350ft wireless battery-powered point-to-point perimeter detection powered by Inovonics. Quad-beam active infrared with 4–8 years battery life, super-low infrastructure cost, eliminates trenching/wiring. |
| HX High Mount Series | High Mount Spot Protection | Stable outdoor dual PIR detector for accurate human presence detection while avoiding false alarms from nuisance animals. HX-40 Series: 40 x 50ft, mounting height 8–10ft. HX-80 Series: 80 x 6ft, mounting height 8–10ft. |
| BX Shield Series | Immediate Boundary | Quad PIR sensors for protecting windows and immediate building/site boundaries. 2 PIRs per side, up to 80ft detection range (40ft per side, independently adjustable). |
| Fitlink Series | Short Range Low Mount | Dual PIR providing chimes, events, notifications, and standard intrusion alarms with 5-year battery life. Communicates with most residential & small-business security systems. Resistant to false alarms from weather/pets. |

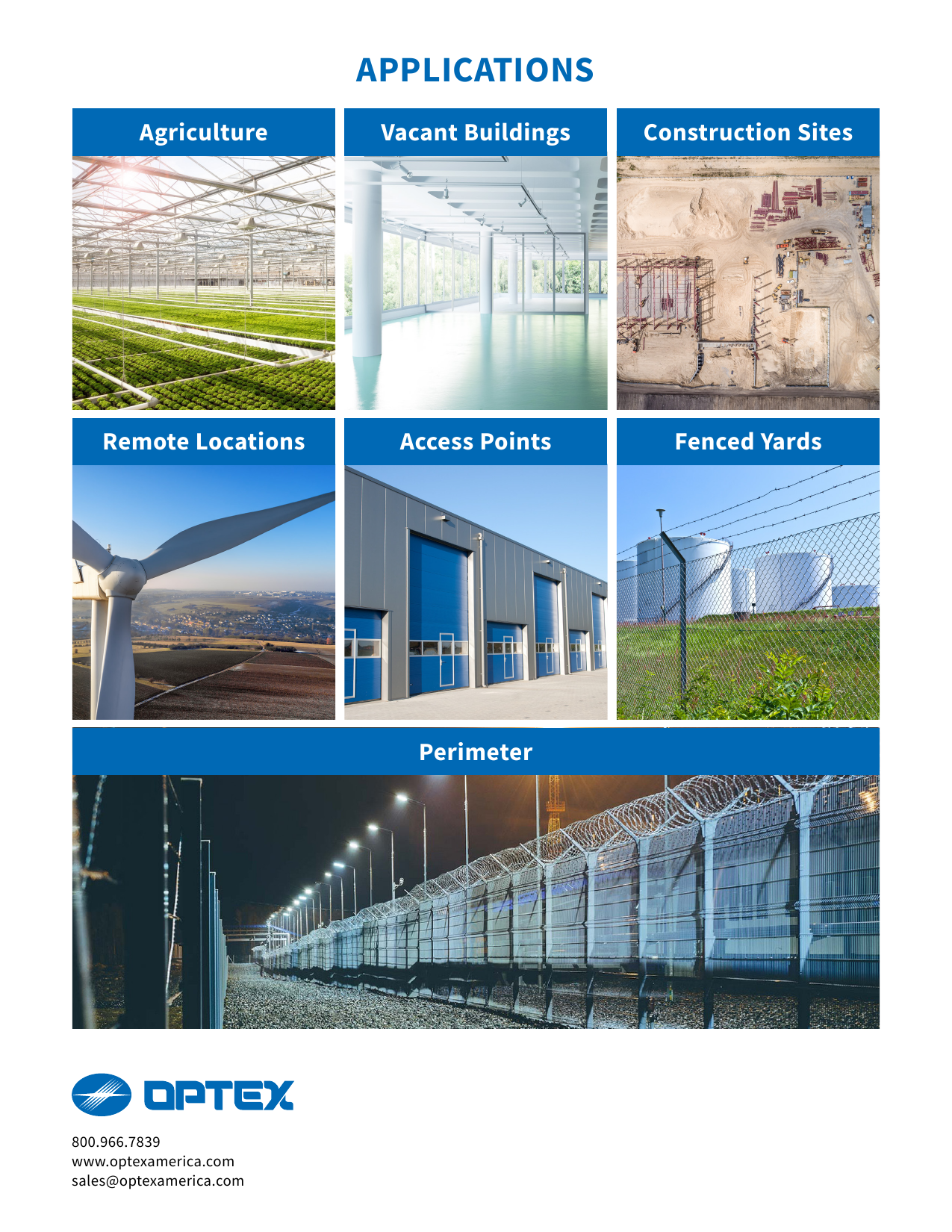

Typical Applications
- Agriculture (greenhouses, farms)
- Vacant buildings
- Construction sites
- Remote locations (utility/infrastructure sites)
- Access points (loading docks, entrances)
- Fenced yards / storage areas
- Perimeter / high-security border fencing
