    On-Q/Legrand Dual-Purpose In-Wall Enclosure, 17" — Dimensional Drawing

    September 08, 2026 1 min read

    Dimensional drawing for the On-Q/Legrand Dual-Purpose In-Wall Enclosure, 17" (P/N ENP1700-NA) — full construction dimensions for structured wiring installations.

    💾 Download Original PDF 🛒 View Product
    Full text manual (for reference)

    Dimensional drawing for the On-Q/Legrand 17" Dual Purpose In-Wall Enclosure (P/N ENP1700-NA) — showing overall dimensions and multi-view construction details.

    Overview

    This dimensional drawing (drawing number ENP1700-NA, Rev A) documents the physical construction of Legrand's 17" In-Wall Enclosure, a dual-purpose structured wiring box used to house home network, audio, video, and telecom equipment behind a wall-mounted cover.

    Key Dimensions

    Overall Height/Width Envelope 17.02 in (432.26 mm)
    Body Width 14.37 in (364.90 mm)
    Depth 8.28 in (210.29 mm)
    Cover/Bezel Height 18.52 in (470.42 mm)
    Front Clearance 3.88 in (98.43 mm)
    Wall Cutout Width 13.91 in (353.43 mm)
    Body Height 15.87 in (403.06 mm)
    Wall Thickness Callout 0.39 in (10 mm) / 0.59 in (15 mm)

    Dimensions are in inches unless otherwise specified. Drawing is 3rd angle projection.

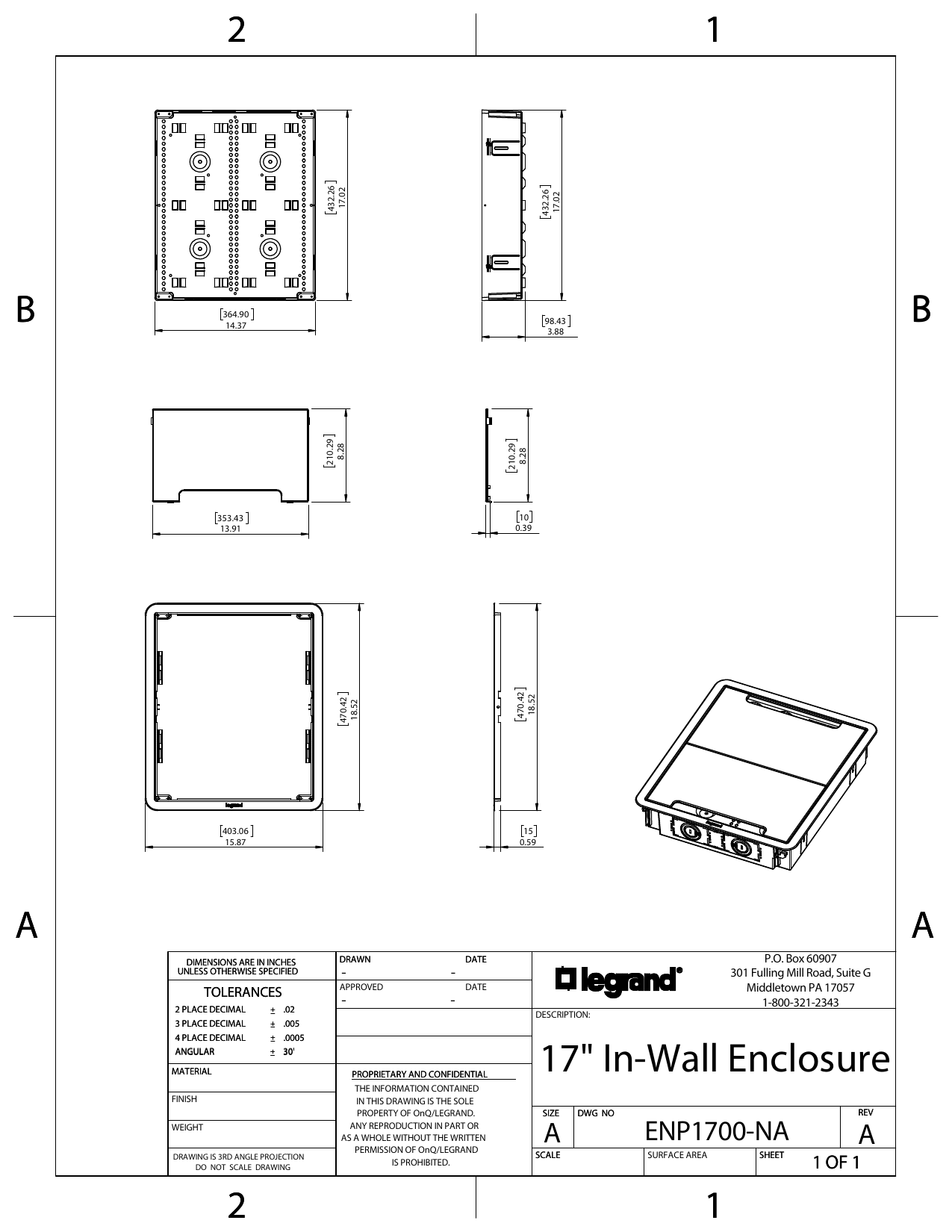

    On-Q/Legrand 17-inch dual-purpose in-wall enclosure dimensional drawing showing multi-view orthographic projections and isometric render
    Full dimensional drawing (ENP1700-NA) with orthographic views (top, front, side) plus an isometric render of the enclosure box and cover assembly.

    Notes

    This drawing is proprietary and confidential information of On-Q/Legrand. Any reproduction in part or as a whole without written permission is prohibited. For installation instructions and mounting hardware compatible with this enclosure, refer to the associated On-Q/Legrand structured wiring product documentation.

    Support

    On-Q/Legrand: P.O. Box 60907, 301 Fulling Mill Road, Suite G, Middletown PA 17057 | 1-800-321-2343
