Keen Home Smart Zoning System — Product Overview (Smart Vent, Bridge, Temp Sensor, Filter)
Product overview booklet for the Keen Home Smart Zoning System — Smart Vents, Temp Sensor, Smart Bridge hub, and Smart Filter.
Full text manual (for reference)
Product overview booklet for the Keen Home Smart Zoning System — a room-by-room temperature control ecosystem built around Smart Vents, a Temp Sensor, a Smart Bridge hub, and optional Smart Filters. This is a marketing/product booklet rather than a step-by-step installation manual; the diagrams below and full downloadable PDF cover product features, compatibility, and specifications for each component.
How Keen Home Zoning Works
"The Perfect Temperature In Any Room." A traditional HVAC system pushes the same amount of air to every room regardless of need, leaving some rooms too hot and others too cold. The Keen Home system replaces (or supplements) regular vents with Smart Vents that individually regulate airflow per room, paired with a Temp Sensor per zone and a Smart Bridge hub — letting each room hold its own target temperature instead of one thermostat setting for the whole house.

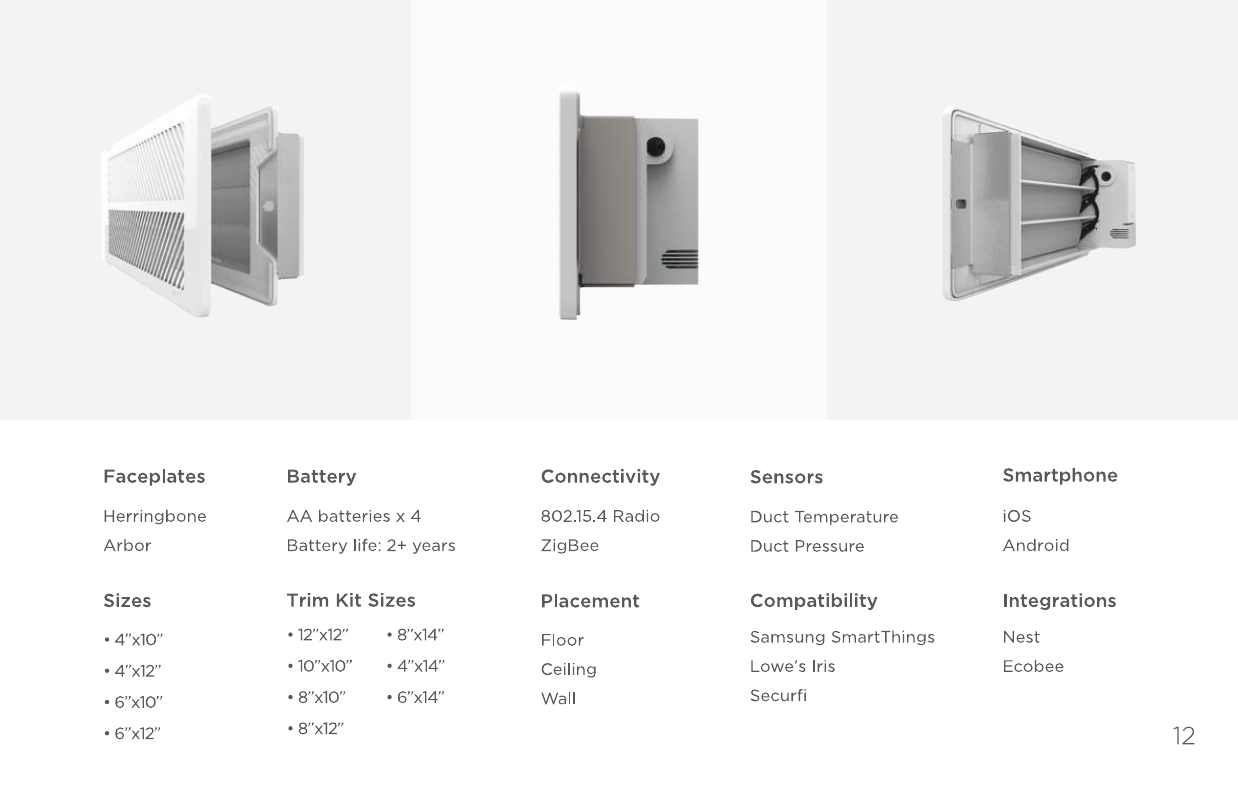

The Smart Vent™
- Pressure Safety: vent sensors detect air pressure and temperature to ensure safe airflow regulation.
- Faceplates: interchangeable, paintable, and removable faceplates for easy cleaning (Herringbone and Arbor styles available).
- Quiet Operation: a novel louver system ensures quiet operation with variable airflow occlusion.
- Battery Life: advanced control algorithms extend battery life to 2+ years on 4x AA batteries.
| Faceplates | Herringbone, Arbor |
| Sizes | 4"x10", 4"x12", 6"x10", 6"x12" |
| Trim Kit Sizes | 12"x12", 10"x10", 8"x10", 8"x12", 8"x14", 4"x14", 6"x14" |
| Battery | 4x AA batteries, 2+ year life |
| Connectivity | 802.15.4 Radio, ZigBee |
| Placement | Floor, Ceiling, Wall |
| Sensors | Duct Temperature, Duct Pressure |
| Smart Home Compatibility | Samsung SmartThings, Lowe's Iris, Securifi |
| Smartphone | iOS, Android |
| Thermostat Integrations | Nest, ecobee |

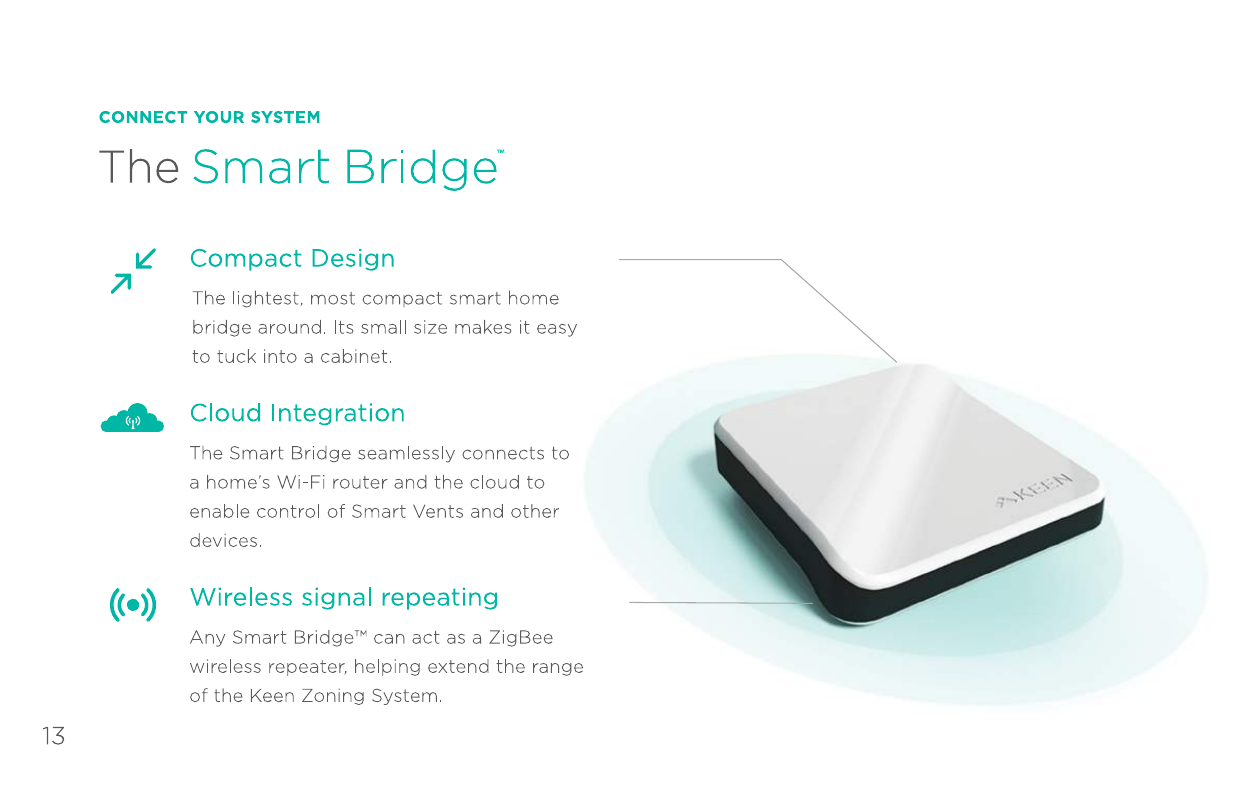

The Smart Bridge™
The Smart Bridge is the system's central hub: a compact device with cloud integration (WiFi) and wireless signal repeating that extends the ZigBee mesh network throughout the home.
| Power | Power Adapter |
| Connectivity | ZigBee |
| Ports | Ethernet |
| Integrations | Nest, ecobee |
| Repeater Functionality | Power only required |
The Temp Sensor™
A compact wall- or surface-mounted sensor (adhesive backing) that detects air temperature and humidity, enabling individual room temperature control when paired with Smart Vents.
| Battery | CR2032, 2+ year life |
| Transmit Distance | > 100 ft indoors |
| Connectivity | ZigBee |
| Placement | Wall or any surface |
The Smart Filter™
- Uncompromising Tech: HAF technology from 3M™ filters allergens, germs, and air pollutants without sacrificing heating/cooling performance.
- Real-Time Monitoring: automatically receive refill notifications based on analysis of HVAC usage.
- Magnetic Fit: makes changing filters quick and easy — antimicrobial, electrostatic 3M™ High Airflow Filter with an active carbon layer and custom fit snap-seal.

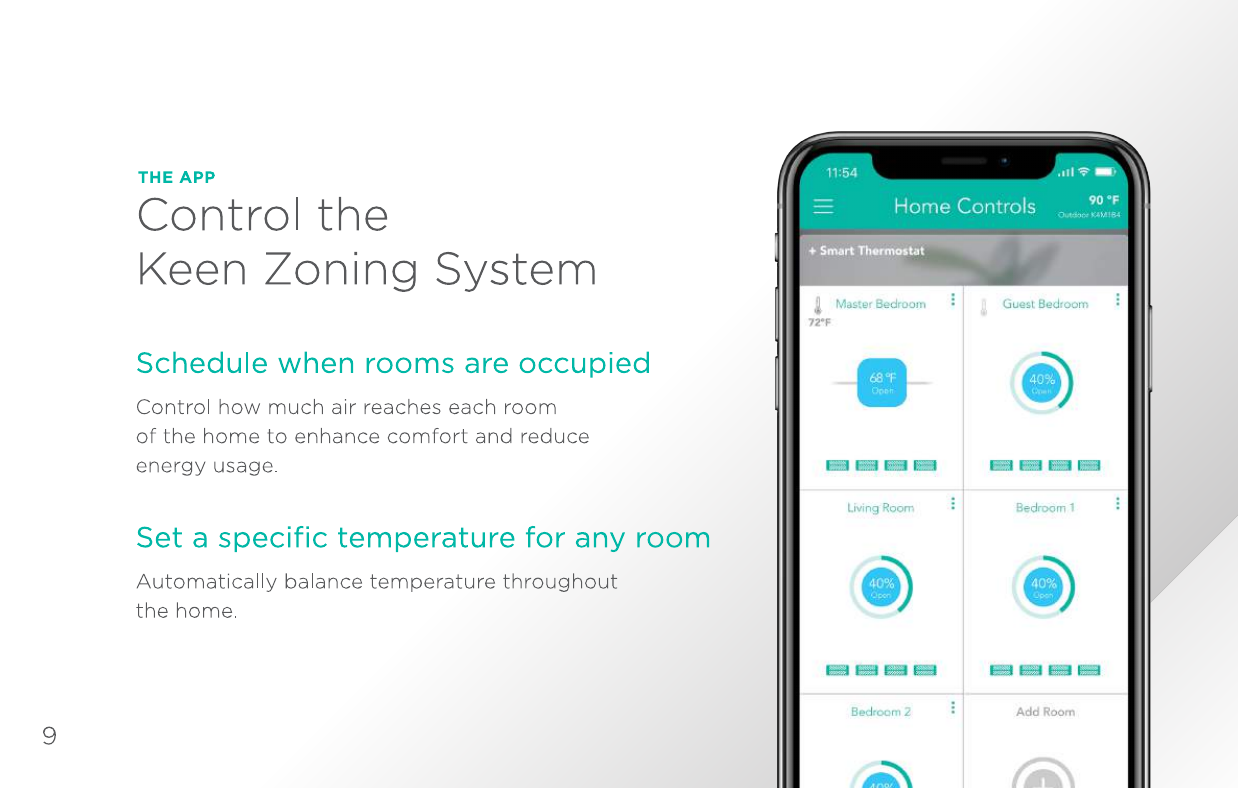

The App
The Keen Home app lets you control the whole zoning system from your phone:
- Schedule when rooms are occupied — control how much air reaches each room to enhance comfort and reduce energy usage.
- Set a specific temperature for any room — automatically balances temperature throughout the home.

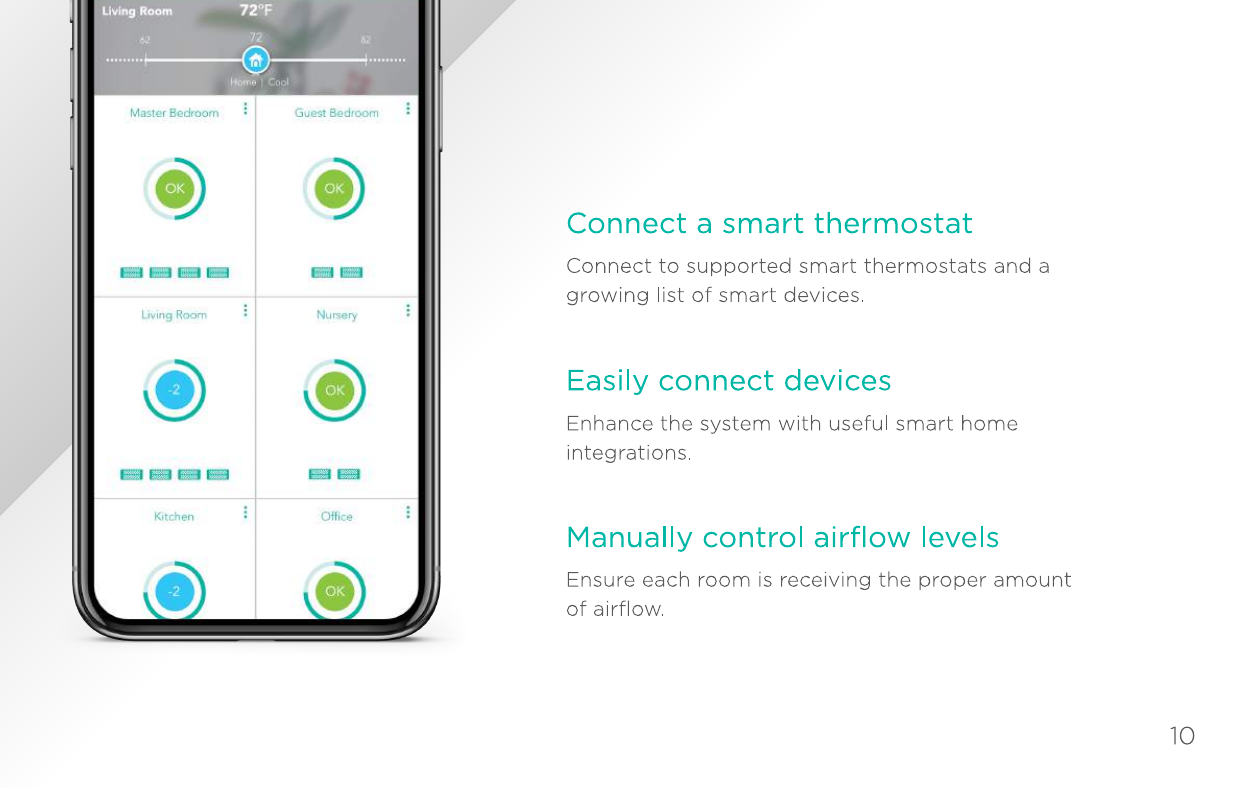

- Connect a smart thermostat — supports Nest and ecobee (ecobee4, ecobee3, ecobee3 lite, and room sensors), plus a growing list of smart home integrations.
- Manually control airflow levels per room to ensure proper ventilation.
Manufacturer
Keen Home — www.keenhome.io
