JascoPro Series In-Wall Smart Paddle Dimmer (59383) — Product Specifications

Product specifications for the JascoPro Series In-Wall Smart Dimmer, Paddle style (Model 59383) — a Z-Wave Plus 700 series in-wall smart dimmer with full-range brightness control, S2 security, and SmartStart support.

Specifications

• Power: 120VAC, 60Hz
• Signal Frequency: 908.4/916MHz
• Maximum Loads: 600W (single), 500W (2-gang), or 400W (3-gang) incandescent; 360W or 3A CFL/LED
• Range: Up to 150 ft. from controller or closest Z-Wave device
• Operating Temperature: 32-104°F (0-40°C)
• Z-Wave Module: 700 series
• Warranty: 5-year limited product warranty
• Requires a neutral wire. Dimmer must be mounted indoors.
• Dimensions: 4.13" x 2.63" (body); 1.75" and 1.13" reference depths

Design Features

• QuickFit — improved components reduce housing depth by up to 20% vs. previous models and eliminate the need for heat tabs
• SimpleWire auto-sensing line-load terminals — detects line and load wires and configures the dimmer accordingly; dual ground ports support daisy-chaining in multi-switch setups
• Remote monitoring from any mobile device* and voice control with Amazon Alexa or Google Home when used with a compatible hub*
• May be used single-pole or with up to four JascoPro Series add-on switches in 3, 4, 5, or 6-way wiring configurations
• Works with most dimmable LED, CFL, halogen, and all incandescent bulbs
• Full-range dimmability — adjust brightness 0-100% in 1% increments
• Screw-terminal installation requiring line (hot), load, neutral, and ground connections; traveler wire required for 3-way installation
• Uses a standard rocker-style wallplate for single-gang installations (not included); interchangeable white and light-almond rocker paddles included
• Multicolor LED indicates switch location in a dark room; LED status can be inverted (always OFF or always ON)
• In-line traveler circuit protection; UL listed to work with dimmable LED and CFLs; Z-Wave Plus certified
• Can be included in multiple groups and scenes; supports the Z-Wave firmware update meta-data command class for over-the-air updates
• Advanced configuration supported: dim rates, LED status, minimum/maximum dim levels, alternate exclusion

Z-Wave Plus with S2 Security and SmartStart

• QR codes provide unique, industry-standard secure key exchange for 128-bit encryption
• Effortless device pairing to Z-Wave S2 and SmartStart certified gateways
• Backward compatible with all generations of Z-Wave devices
• 250% faster processor, 400% more memory, 50% more energy efficient vs. prior generation
• Supports wireless upgrades to future-proof your home; up to 50% greater wireless range and improved battery life

* Requires Z-Wave hub or controller; functions may vary depending on brand.

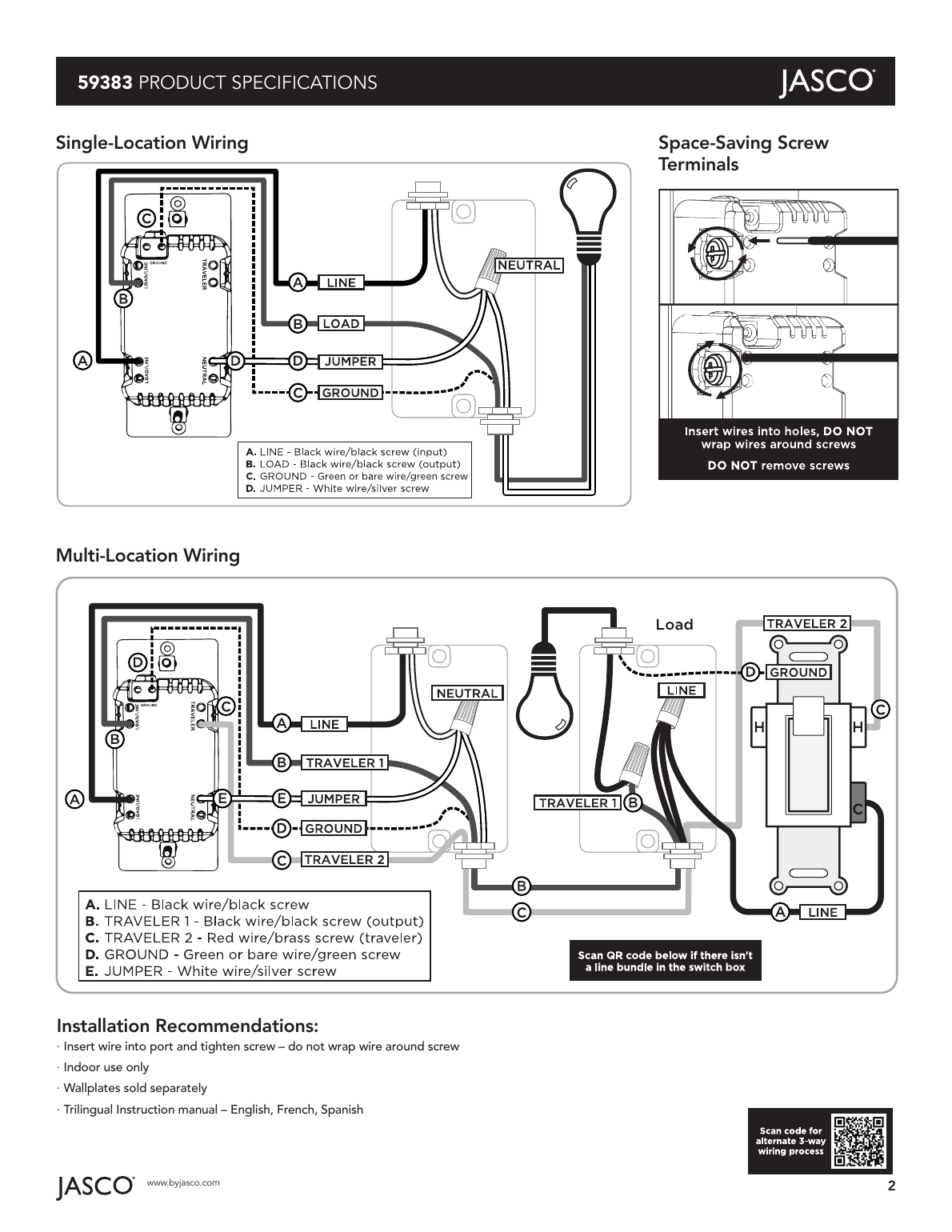

Wiring Diagrams

• Single-Location Wiring: LINE (black wire/black screw, input), LOAD (black wire/black screw, output), GROUND (green or bare wire/green screw), JUMPER (white wire/silver screw).
• Multi-Location (3-way) Wiring: LINE (black/black), TRAVELER 1 (black wire/black screw, output), TRAVELER 2 (red wire/brass screw, traveler), GROUND (green or bare wire/green screw), JUMPER (white wire/silver screw). Connects a JascoPro smart switch to a traditional toggle switch via traveler wires.

Installation Recommendations

• Insert wire into the port and tighten the screw — do not wrap the wire around the screw, and do not remove the screws.
• Indoor use only. Wallplates sold separately.
• Trilingual instruction manual: English, French, Spanish.
• Scan the QR code on the packaging for the alternate 3-way wiring process if there isn't a line bundle in the switch box.

Device Configuration

Adding your device to a Z-Wave network

1. Follow the instructions for your Z-Wave certified controller to add a device to the network.
2. Once the controller is ready to add your device, press the top or bottom of the rocker.

Once added, you have full control to turn the fixture ON/OFF and adjust brightness according to groups, scenes, schedules, and interactive automations programmed by your controller. If your controller features remote access, you can control the lamp from mobile devices. If prompted for the S2 security code, refer to the QR code/security number on the side of the box or the QR code label on the product; enter the 5-digit code.

To remove and reset the device

1. Follow the instructions for your Z-Wave certified controller to remove a device from the network.
2. Once the controller is ready to remove your device, press the top or bottom of the rocker.

To return to factory defaults

1. Pull up the air gap switch.
2. While pressing the OFF (bottom) button, push in the air gap and continue pressing OFF. The LED flashes through eight colors once.

Note: Factory reset should only be used if your network's primary controller is missing or otherwise inoperable. SmartStart-enabled products can instead be added by scanning the QR code on the product with a controller providing SmartStart inclusion — no further action is needed; the product is added automatically within 10 minutes of being switched on in the network vicinity.
