    Ezlo Plus — Z-Wave & Zigbee Smart Home Controller Specifications

    September 08, 2026 2 min read

    Product specification sheet for the Ezlo Plus, a Z-Wave and Zigbee smart home controller/hub built on the Ezlo platform.

    💾 Download Original PDF
    Full text manual (for reference)

    Product specification sheet for the Ezlo Plus, a Z-Wave and Zigbee smart home controller/hub built on the Ezlo platform.

    Overview

    Compact enough for a living room but powerful enough for a rack room, the Ezlo Plus leverages the newer Ezlo platform for a faster, more efficient, highly customizable smart home controller. It controls Z-Wave and Zigbee devices as well as over 27,000 Wi-Fi devices paired to Amazon Alexa or Google Assistant through the Ezlo VOI platform — positioned as a single hub for the whole smart home.

    Key Features

    • Controls the latest Z-Wave and Zigbee devices — lights, thermostats, door locks, sensors, and more — from multiple manufacturers
    • Controls over 27,000 Wi-Fi devices via Amazon Alexa or Google Assistant using Ezlo VOI™
    • Z-Wave Smart Start learning mode for faster device pairing, plus S2 framework for enhanced security
    • Personalized scenes with grouped triggers and actions
    • Local control for ultra-fast responsiveness and increased privacy (stays off the cloud when home)
    • EzloCast controls groups of devices simultaneously (e.g. all first-floor lights)
    • Remote access and push notifications via the Vera App (iOS/Android)
    • Supports VistaCam indoor, outdoor, and doorbell cameras
    • Open API for developers to build custom experiences

    Specifications

    Wireless Z-Wave Plus 700 Series; Zigbee 3.0/1.2; Wi-Fi 802.11 a/b/g/n/ac (2.4 & 5GHz)
    Processor Quad-Core Cortex-A7 ARM CPU
    Flash Memory EMMC 4GB
    RAM DDR3 512MB
    Connectors 1x USB 2.0 host port, 1x WAN 10/100 Ethernet port
    Dimensions (H x W x D) 4.17 x 4.12 x 1.45 in (106 x 104.66 x 36.95 mm)
    Power Supply Input: AC 100–240VAC, 50–60Hz; Output: DC 5V/2A

    What's in the Box

    • Ezlo Plus Controller
    • Power Supply
    • Ethernet Cable
    • Quick Start Guide

    Physical Details

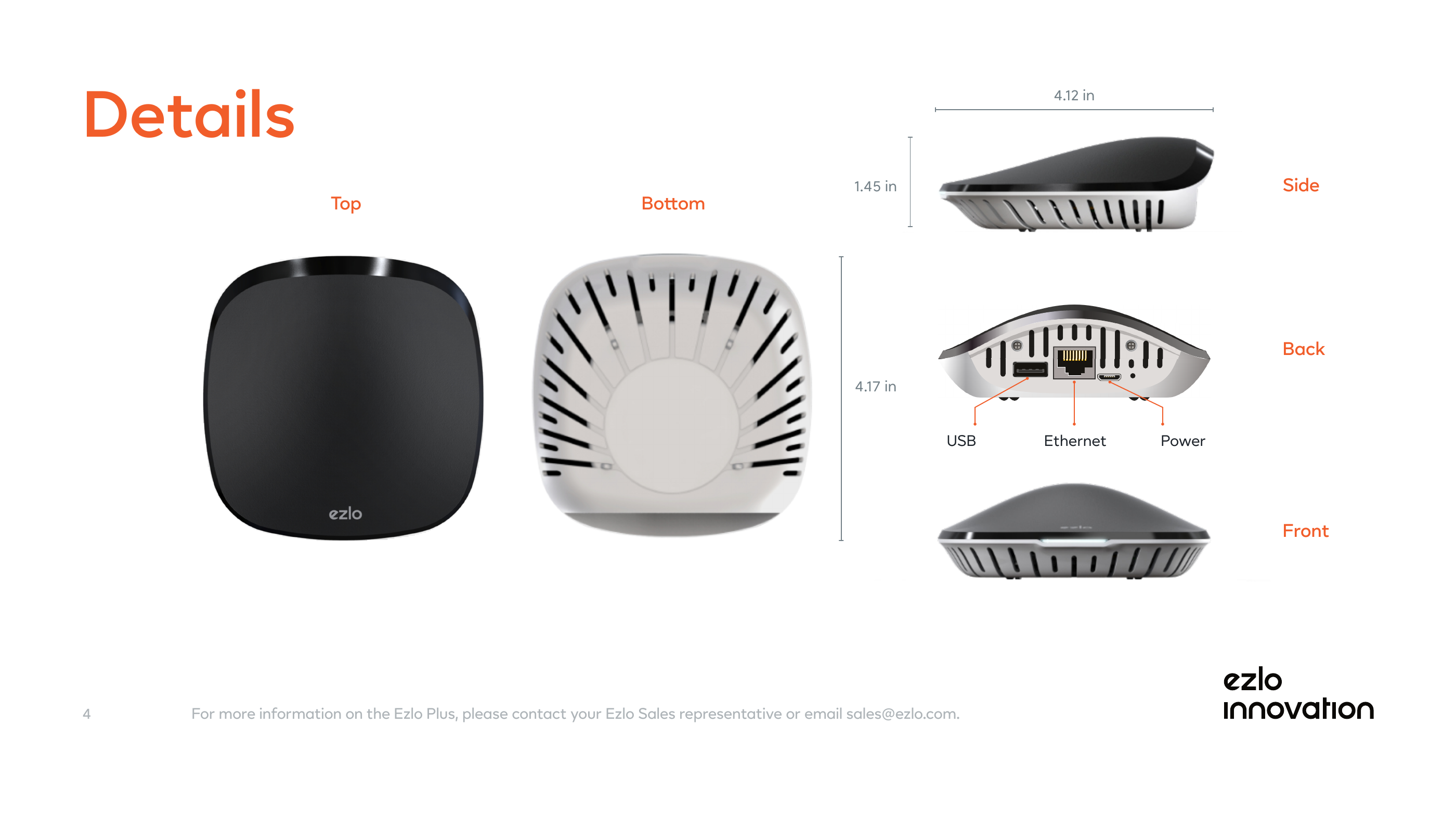

    Ezlo Plus dimensions and port layout diagram
    Ezlo Plus physical dimensions (4.17 x 4.12 x 1.45 in) and back-panel port layout: USB, Ethernet, Power.

    For more information, contact your Ezlo sales representative or email sales@ezlo.com.
