DoorBell Fon DP28-NxF Door Station (F-Series) — Product Cutsheet

Product cutsheet for the DoorBell Fon DP28-NxF Door Station (F-Series) — a flush-mount door-to-phone entry station used with the DP28-C Door Station Controller.

Overview

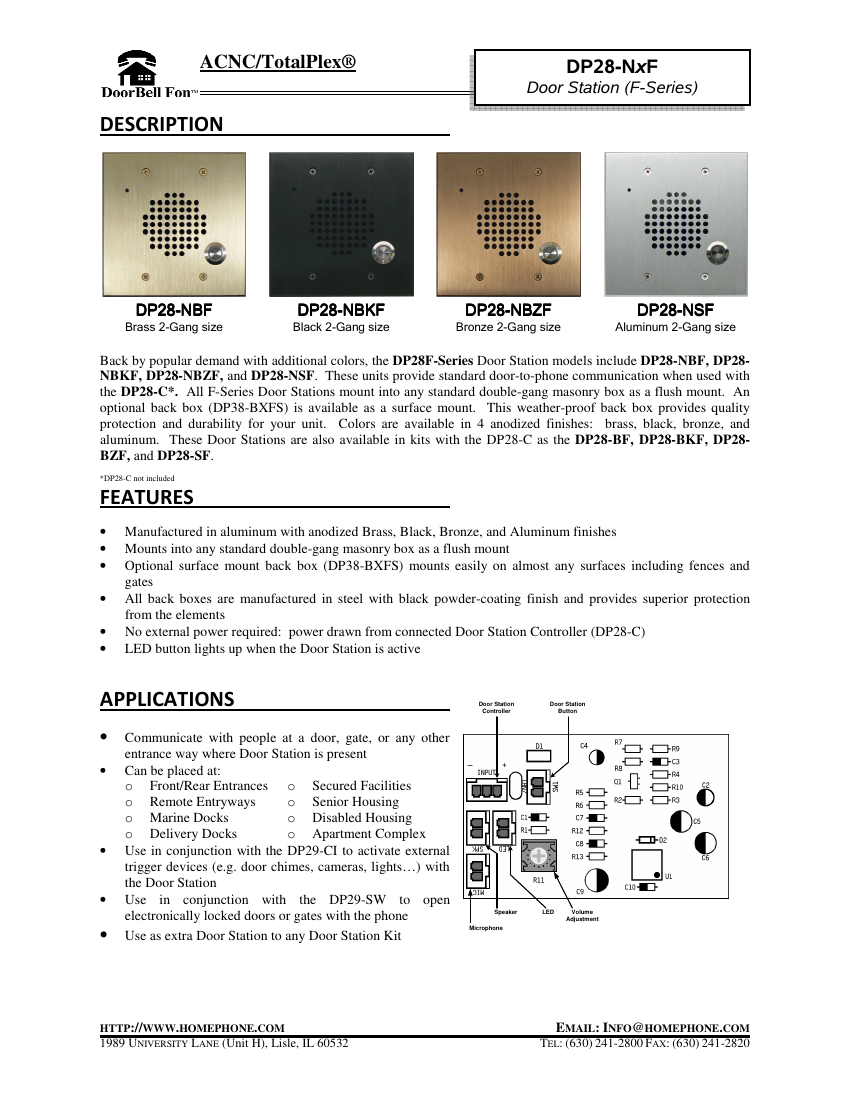

The DP28F-Series Door Station provides standard door-to-phone communication when paired with the DP28-C controller. It mounts into any standard double-gang masonry box as a flush mount, or into the optional DP38-BXFS weatherproof back box for surface mounting. Available in four anodized finishes: brass (DP28-NBF), black (DP28-NBKF), bronze (DP28-NBZF), and aluminum (DP28-NSF). Also sold in kits bundled with the DP28-C as DP28-BF, DP28-BKF, DP28-BZF, and DP28-SF.

Note: the DP28-C controller is not included with the standalone door station — it must be purchased separately or as part of a kit.

Features

• Manufactured in aluminum with anodized Brass, Black, Bronze, and Aluminum finishes
• Mounts into any standard double-gang masonry box as a flush mount
• Optional surface-mount back box (DP38-BXFS) mounts on almost any surface, including fences and gates
• All back boxes are steel with a black powder-coating finish for superior weather protection
• No external power required — power is drawn from the connected Door Station Controller (DP28-C)
• LED button lights up when the Door Station is active

Applications

• Communicate with visitors at a door, gate, or other entrance
• Front/rear entrances, remote entryways, marine docks, delivery docks
• Secured facilities, senior housing, disabled housing, apartment complexes
• Use with the DP29-CI to trigger external devices (door chimes, cameras, lights) from the Door Station
• Use with the DP29-SW to remotely unlock electronic doors or gates via phone
• Add as an extra Door Station to any existing Door Station Kit

Specifications

Mounting

Screw-hole dimensions are standard 2-gang. The LED button on the front lights up when the Door Station is active, and the circuit board cover box provides extra protection for the internal electronics.
