    Chief THINSTALL TS525TU Swing Arm Wall Mount — Technical Drawings

    September 08, 2026 1 min read

    Technical dimensional drawings for the Chief THINSTALL TS525TU medium dual swing arm wall mount — mounting pattern, extension, tilt, and range of motion.

    💾 Download Original PDF 🛒 View Product
    Full text manual (for reference)

    Technical dimensional drawings for the Chief THINSTALL TS525TU medium dual swing arm wall mount — mounting pattern, extension, tilt, and range-of-motion specs for installers.

    Overview

    The Chief TS525TU is a THINSTALL Series dual swing arm display mount designed for TVs up to 125 lbs, with maximum extension of roughly 25.67" from the wall and a low collapsed profile of 1.4"–1.5". It swivels asymmetrically (45° one direction, 65° the other) for corner mounting and off-angle viewing.

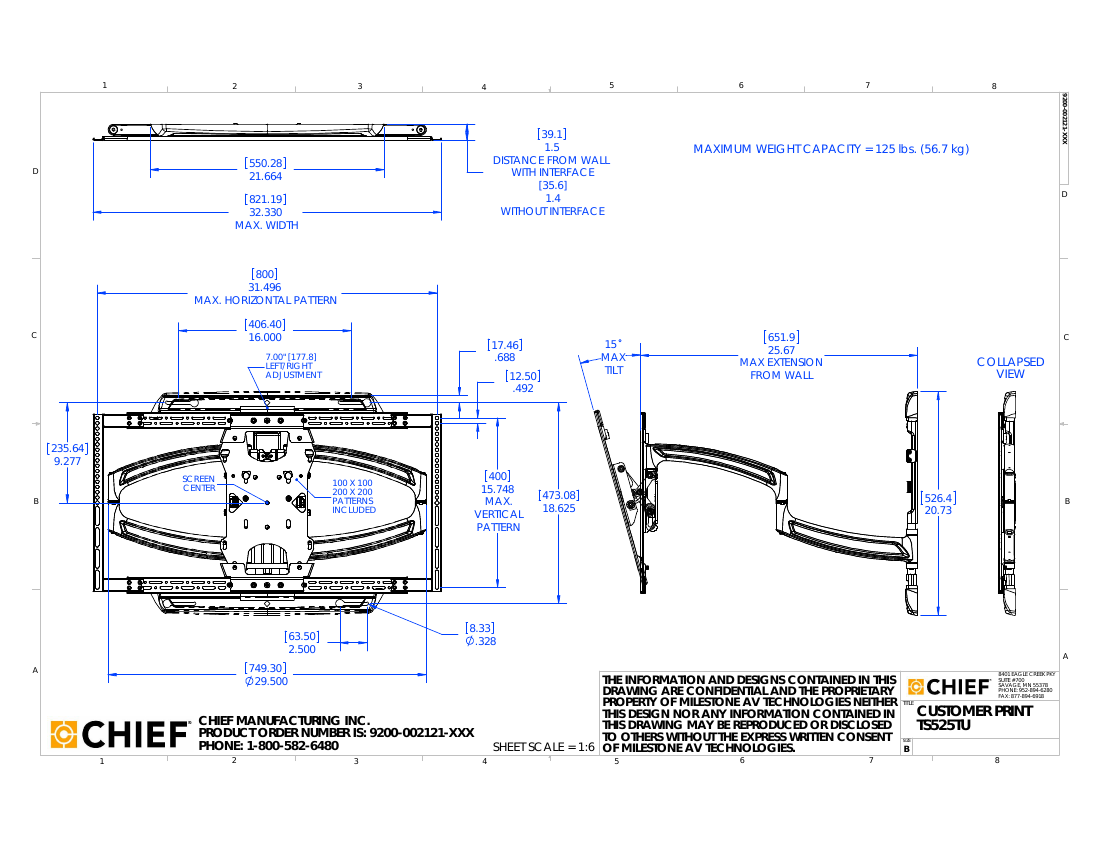

    Chief TS525TU customer print showing overall dimensions, VESA mounting patterns, and wall clearance
    Customer print — overall dimensions, VESA pattern, and wall clearance

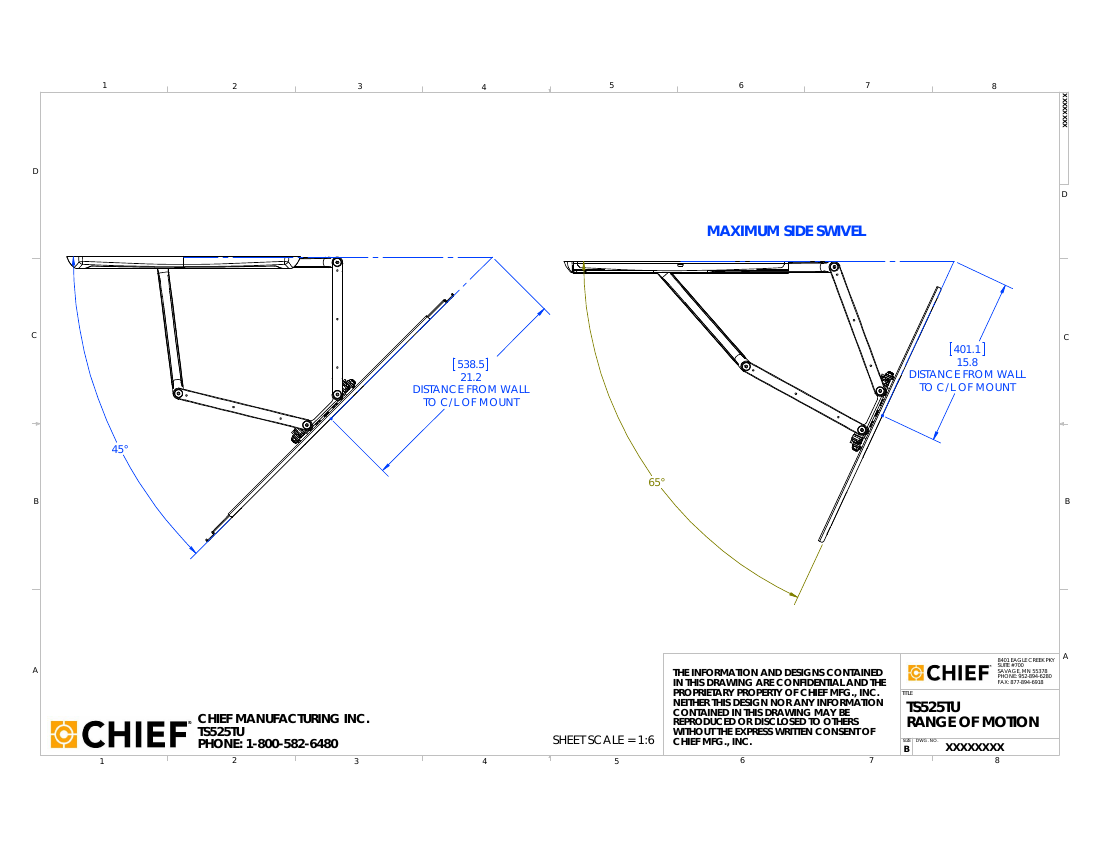

    Chief TS525TU range of motion diagram showing side swivel angles and distance from wall at full swing
    Range of motion — side swivel angles and distance from wall

    Key Specifications

    Spec Value
    Maximum Weight Capacity 125 lbs (56.7 kg)
    Distance from Wall (with interface plate) 1.5" (39.1 mm)
    Distance from Wall (without interface plate) 1.4" (35.6 mm)
    Max Extension from Wall 25.67" (651.9 mm)
    Max Width 32.33" (821.19 mm)
    Max Horizontal Mounting Pattern 31.5" (800 mm)
    Max Vertical Mounting Pattern 15.75" (400 mm)
    Included VESA Patterns 100x100mm and 200x200mm
    Left/Right Adjustment 7.00" (177.8 mm)
    Max Tilt 15°
    Side Swivel 45° in one direction, 65° in the other
    Distance from Wall to Centerline of Mount 15.8"–21.2" depending on swivel angle

    These dimensions are intended for installers and integrators verifying TV compatibility (VESA pattern and weight), wall clearance, and swing-arm articulation before installation. Confirm exact TV fit against the full technical print above.
