    Chief THINSTALL TS118SU Swing Arm Wall Mount — Product Specifications

    September 08, 2026 2 min read

    Product specification sheet for the Chief THINSTALL TS118SU, a 10"-32" ultra-low-profile swing arm wall mount.

    💾 Download Original PDF 🛒 View Product
    Full text manual (for reference)

    Product specification sheet for the Chief THINSTALL TS118SU — a 10"–32" ultra-low-profile swing arm wall mount.

    Overview

    The TS118SU is a THINSTALL Series swing arm wall mount for 10"–32" TVs, collapsing to an ultra-low 1.5" (38mm) profile while extending up to 18" (457mm) from the wall for full viewing flexibility.

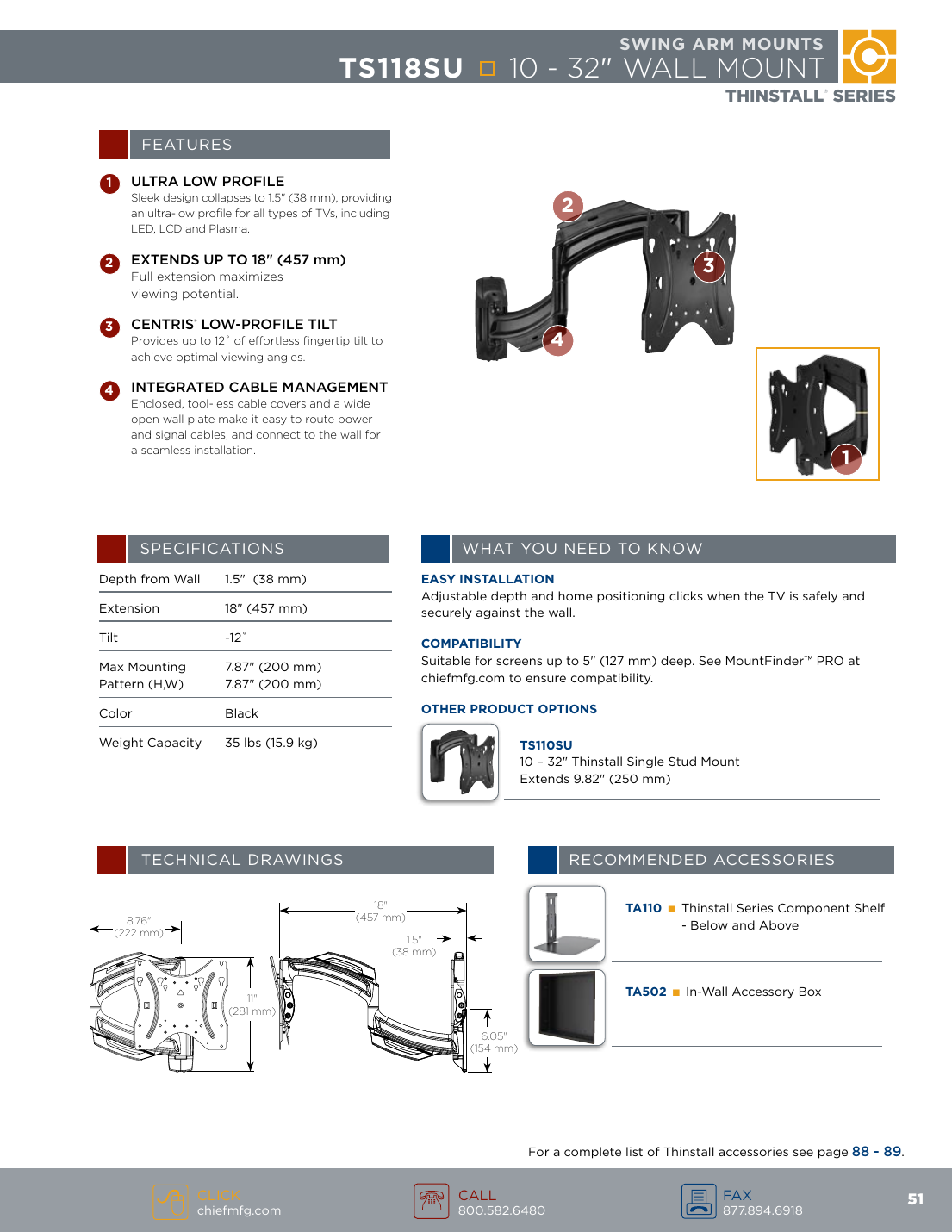

    Chief TS118SU Thinstall swing arm wall mount spec sheet with feature callouts and technical drawings
    TS118SU feature callouts, dimensions, and accessories

    Features

    • Ultra Low Profile — collapses to 1.5" (38mm), an ultra-low profile suitable for LED, LCD, and Plasma TVs.
    • Extends up to 18" (457mm) — full extension maximizes viewing potential.
    • Centris® Low-Profile Tilt — up to 12° of effortless fingertip tilt to achieve optimal viewing angles.
    • Integrated Cable Management — enclosed, tool-less cable covers and a wide open wall plate make it easy to route power/signal cables and mount to the wall.

    Specifications

    Spec Value
    Depth from Wall 1.5" (38 mm)
    Extension 18" (457 mm)
    Tilt -12°
    Max Mounting Pattern (H,W) 7.87" x 7.87" (200mm x 200mm)
    Color Black
    Weight Capacity 35 lbs (15.9 kg)

    What You Need to Know

    • Easy Installation — adjustable depth and home-positioning clicks when the TV is safely and securely against the wall.
    • Compatibility — suitable for screens up to 5" (127mm) deep. See MountFinder™ PRO at chiefmfg.com to confirm compatibility.

    Other Product Options & Accessories

    • TS110SU — 10"–32" Thinstall Single Stud Mount, extends 9.82" (250mm)
    • TA110 — Thinstall Series Component Shelf (mounts above or below)
    • TA502 — In-Wall Accessory Box

    For the full list of Thinstall accessories, see chiefmfg.com or call 800-582-6480.
