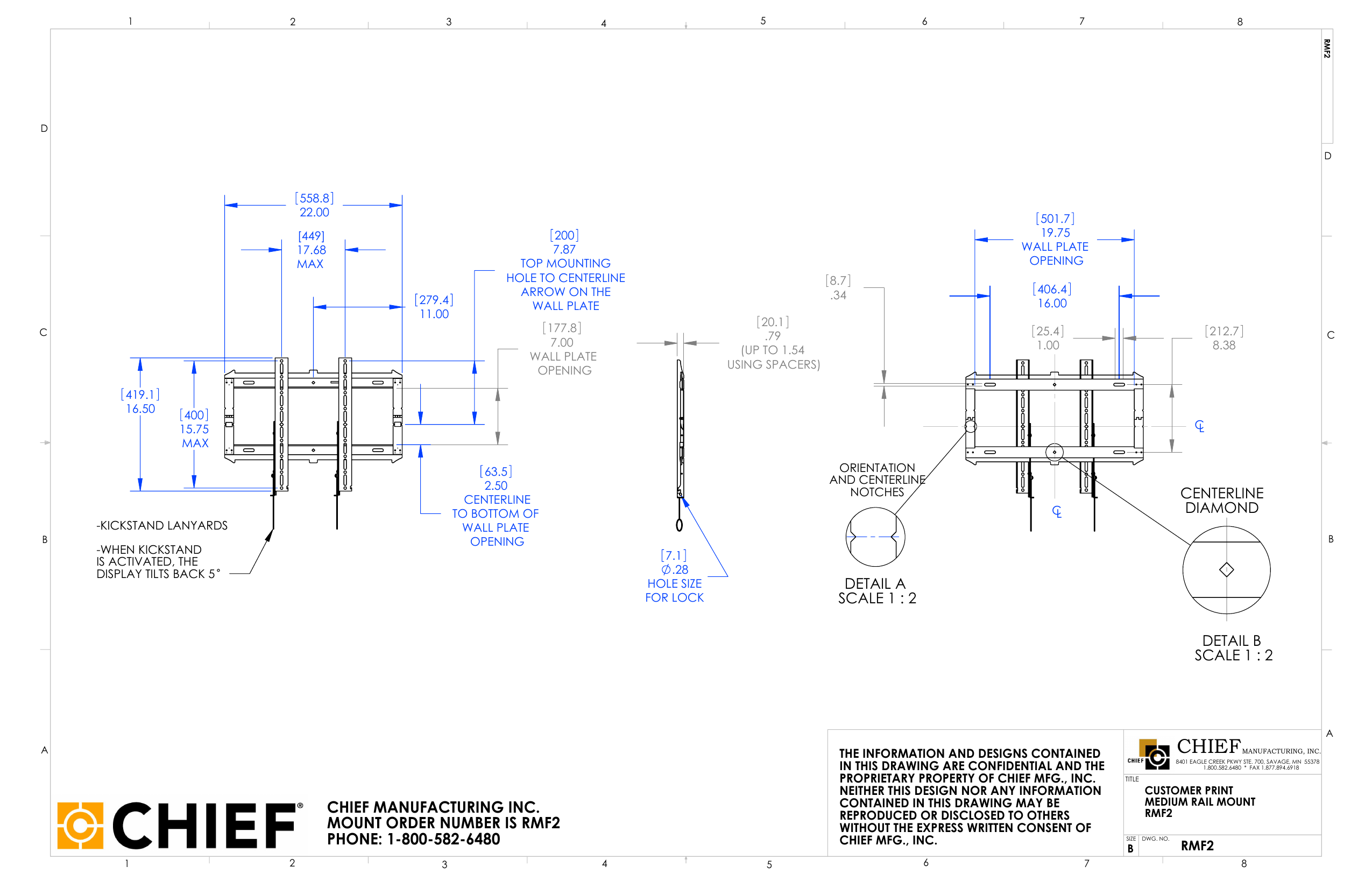

Chief RMF2 — Medium Rail Mount Technical Drawing

Customer technical drawing for the Chief RMF2 Medium Rail Mount (Chief Manufacturing, Inc.). This CAD-generated print gives the exact wall plate opening dimensions, mounting hole locations, and kickstand tilt detail needed to plan an installation.

What This Drawing Shows

• Overall wall plate opening dimensions and mounting hole-to-centerline measurements
• Top mounting hole location relative to the wall plate arrow/orientation marker
• Centerline notches and orientation detail (Detail A) at 1:2 scale
• Centerline diamond and lock hole detail (Detail B) at 1:2 scale
• Kickstand lanyard note: when the kickstand is activated, the display tilts back 5°

Key Dimensions

• Model / Mount order number: RMF2
• Overall height: 22.00" (558.8 mm), max 17.68" (449 mm) at reduced height option
• Wall plate opening width: 19.75" (501.7 mm)
• Wall plate opening height: 16.00" (406.4 mm)
• Top mounting hole to centerline arrow: 7.87" (200 mm)
• Centerline to bottom of wall plate opening: 2.50" (63.5 mm)
• Max mounting height with spacers: up to 1.54" additional (spacer-dependent)
• Lock hole size: 0.28" (7.1 mm)
• Kickstand tilt-back angle: 5° when activated

Manufacturer

Chief Manufacturing, Inc., 8401 Eagle Creek Pkwy Ste. 700, Savage, MN 55378 — Phone: 1-800-582-6480, Fax: 1-877-894-6918
