    2GIG Vario Plastic Accessory Box — Installation Instructions

    September 08, 2026 2 min read

    Installation instructions for the 2GIG Vario Plastic Accessory Box, for mounting Vario expander modules.

    💾 Download Original PDF
    Full text manual (for reference)

    Installation instructions for the 2GIG Vario Plastic Accessory Box (part 10013363 A) — an enclosure for mounting 2GIG Vario zone/output expander modules.

    Overview

    The 2GIG Vario Plastic Accessory Box houses one or more Vario expander modules near a device location. Note: The accessory box is only suitable for devices powered by voltages below 60VDC or 42.4VAC.

    Technical Specifications

    Spec Value
    Dimensions 192 mm x 150 mm x 57 mm
    Max. accessories 2 expander modules
    Compatible modules 2GIG Vario 8*70mA Output Expander; 2GIG Vario 4* Relay Output Expander

    Installation Holes Map

    The box provides different mounting hole sets depending on how many and which expander modules you're installing:

    • Two expanders (maximum configuration): Use connection holes 1, 2, 13, 14 and/or 3, 4, 15, 16.
    • Single 16-zone expander: Use connection holes 7, 10, 17, 18.

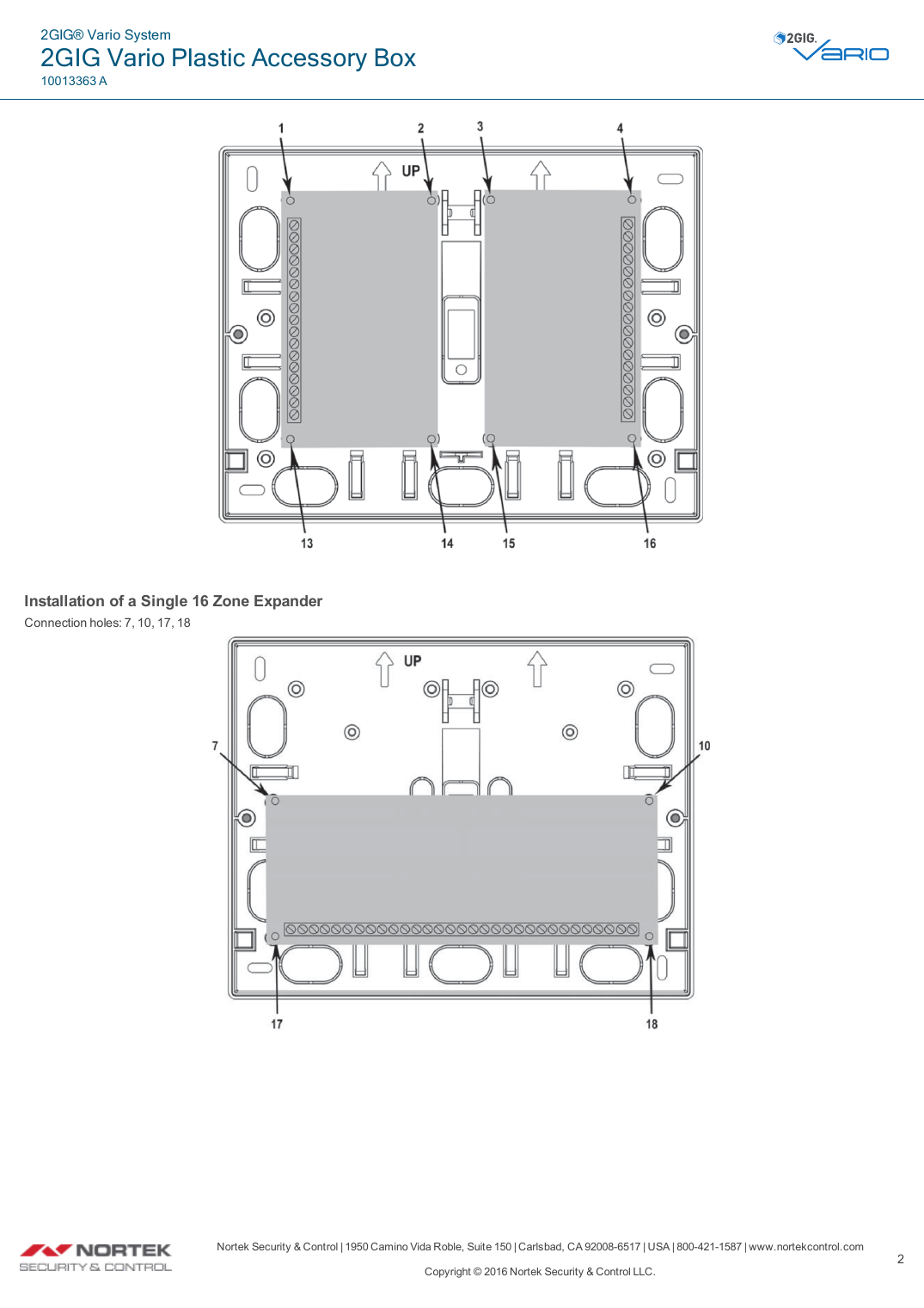

    2GIG Vario Plastic Accessory Box installation holes map — mounting hole layout for dual expander and single 16-zone expander configurations
    Installation holes map: dual-expander layout (holes 1, 2, 3, 4, 13, 14, 15, 16) and single 16-zone expander layout (holes 7, 10, 17, 18).

    Limited Warranty

    This Nortek Security & Control product is warranted against defects in material and workmanship for two (2) years, extending only to wholesale customers who buy direct from Nortek Security & Control LLC or through its normal distribution channels — not a consumer warranty. Consumers should inquire with their selling dealer about applicable warranty terms. No liability for consequential damages related to loss of property, revenue, profit, or cost of removal/installation/reinstallation. All returns require a Return Authorization Number (RA#) — contact Returns at 1-855-546-3351.

    Inquiries: Nortek Security & Control, 1950 Camino Vida Roble, Suite 150, Carlsbad, CA 92008-6517, USA · 800-421-1587
