2GIG Vario Elegant Keypad — Installation Instructions
Installation instructions and specifications for the 2GIG Vario Elegant Keypad, a slim touch-responsive keypad for the 2GIG Vario System.
Full text manual (for reference)
Installation instructions and technical specifications for the 2GIG Vario Elegant Keypad — a slim, touch-responsive keypad compatible with the 2GIG Vario System.
Introduction
Compatible with the 2GIG Vario System, the Elegant Keypad is a slim and reliable keypad which is responsive to touch.
Technical Specifications
| Current Consumption | 12V ± 15%, 150 mA max. |
| Main Panel Connection | 4-wire BUS, up to 300 m (1000 ft) from main panel |
| Dimensions | 177 x 129 x 24 mm (6.9 x 5.0 x 0.9 in) |
| Operating Temperature | –10°C to 50°C (14°F to 122°F) |
| Prox. RF Frequency | 13.56 MHz |
Installation Overview

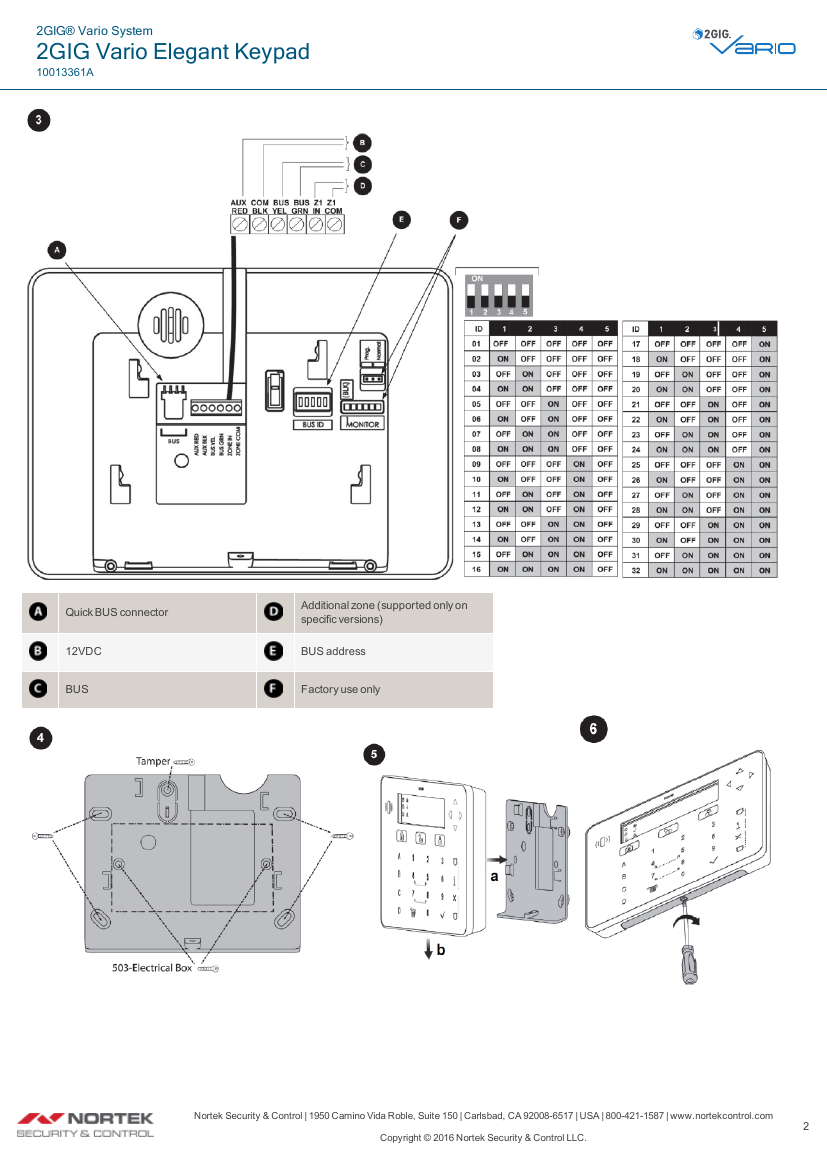

Installation involves wiring the keypad to the main panel via the 4-wire BUS (AUX/RED, COM/BLK, BUS/YEL, BUS/GRN terminals), setting a unique BUS address using the onboard DIP switches (32 possible addresses via a 5-position switch), mounting the back plate to a standard 503 electrical box (noting the tamper switch location), attaching the bracket assembly, and securing the front keypad panel to the wall-mounted bracket.
Regulatory Information
FCC Notice
This device complies with Part 15 of the FCC's Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules, providing reasonable protection against harmful interference in a residential installation. This product complies with FCC radiation exposure limits for an uncontrolled environment — avoid operating at a distance less than 20 cm from the user.
Industry Canada (IC) Compliance
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the condition that the device may not cause interference and must accept any interference received. Repairs to certified equipment should be made by an authorized Canadian maintenance facility.
Limited Warranty
This Nortek Security & Control product is warranted against defects in material and workmanship for two (2) years — extending only to wholesale customers who buy direct from Nortek Security & Control LLC or through its normal distribution channels, not a consumer warranty. All returns require a Return Authorization Number (RA#) — contact Returns at 1-855-546-3351.
Inquiries: Nortek Security & Control, 1950 Camino Vida Roble, Suite 150, Carlsbad, CA 92008-6517, USA · 800-421-1587
