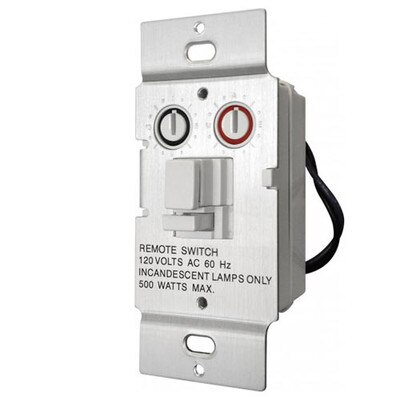

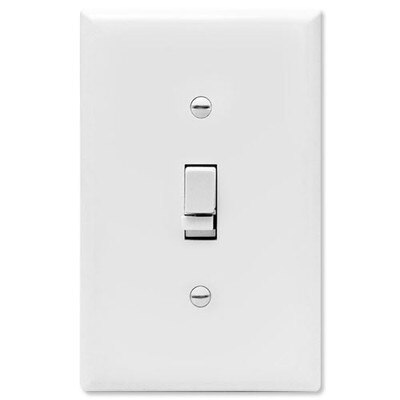

X10 Dimmer Wall Switch

Provides Local & X10 Control

The X10 Dimmable Wall Switch replaces an existing light dimmer switch to provide both local and X10 control of the connected light. This module controls dimmable incandescent lights rated between 40W and 500W.

NOTE: Incandescent lights rated below 40W might flicker or operate erratically. Module cannot be used to control appliances, low voltage lamps, or fluorescent lamps.

The X10 Dimmable Wall Switch is an X10 Wired-In Receiver

A basic X10 system includes a Transmitter and a Receiver – both sold separately. Transmitters are control devices that send X10 signals through your home's electrical wiring to X10 Receivers. When a Receiver receives a command, it responds by turning a light, appliance or other electrical device On or Off, and sometimes Dim or Bright.

It's So Easy To Automate Your Home!

X10 started manufacturing home automation and security products in the late 70s and has been one of the smart home standards since its inception. X10 utilized powerline language to transmit control signals anywhere in your house over your existing 110V electrical lines, so you can control lights and appliances throughout your home without running new wires! Simply add a controller (transmitter) at one electrical outlet and add another module (receiver) at any other outlet and you have remote control of that module. Choose from plug-in, wired-in and wireless models. This enables you to have the remote and automated control of lights and appliances from anywhere on your property. The convenience and security of controlling all your lights and appliances from anywhere in your house is simple and inexpensive.

• Compatibility: Use with X10 compatible transmitters and any standard toggle trim plate (each sold separately).
• Load Range: 40W to 500W
• Compatible Load Type: Incandescent only
• Color: White

»X10 WS467 Dimmer Wall Switch Installation Manual (.pdf)
