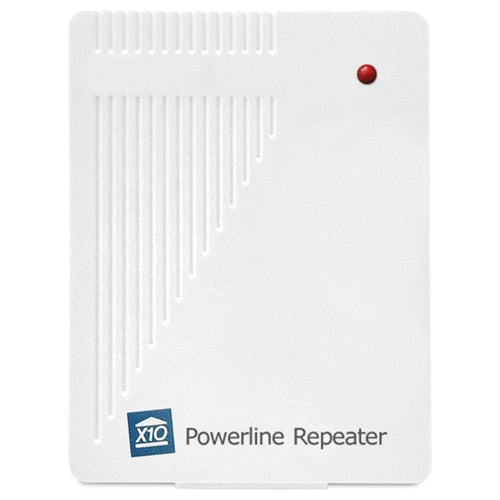

X10 Powerline Command Repeater

SKU: XPPLC01

Order now and we'll ship same business day (if ordered before 3 pm PST).

$34.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Extend X10 Powerline Signal Range

Make sure your X10 powerline signals get to their destinations reliably by adding the X10 Powerline Command Repeater to your system. The module simply plugs into an outlet and immediately begins repeating any X10 signals that pass through it over the powerline, extending signal range.

  • Repeats X10 powerline signals to extend range
  • Plugs into any standard power outlet
  • Built-in outlet on bottom for other plug-ins

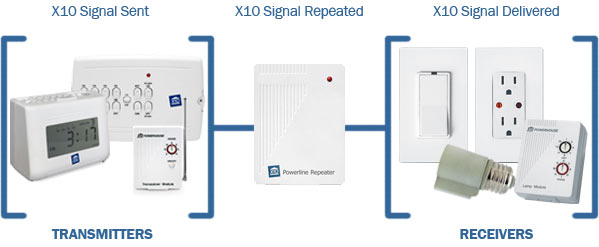

Because the X10 Powerline Command Repeater plugs into an outlet, it features a built-in pass-through outlet at the bottom (not X10 controlled), so you don't lose a power outlet. The repeater should be installed in the approximate center between your X10 RF transmitters and receivers.

NOTE: The outlet on the bottom of the module is not X10 controlled. It serves as a traditional pass-through power outlet only.

X10 Makes It So Easy To Automate Your Home!

X10 began manufacturing home automation and security products in the late 70s, establishing X10 as a smart home standard. X10 utilizes powerline technology to transmit control signals anywhere in your house over your existing electrical lines, so you can control lights and appliances throughout your home without running new wires! Have complete, automated control over lights and appliances from anywhere in your home with X10.

Specifications

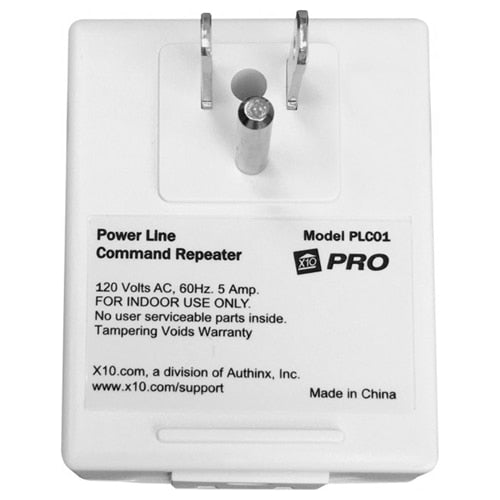

  • Manufacturer Part #: PLC01
  • Color: White
  • Control: Active repeating of X10 powerline commands
  • Power Requirements: 120 VAC, 60Hz, 5A
  • Environmental Conditions: Indoor use only
  • Dimensions: 2.94(L) x 2.06(W) x 1.3(D) inches
  • Warranty: 2 Years

Downloads
