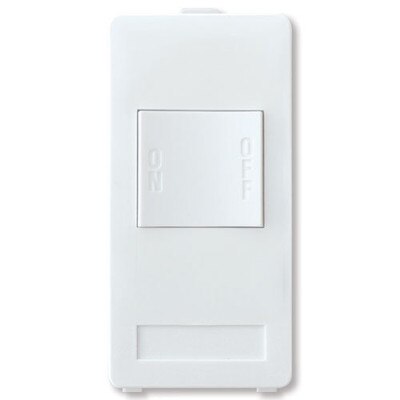

X10 PRO 1-Button Keypad (All On/All Off)


Please Select Option To View Availability


WARNING: Cancer and Reproductive Harm –


Turn On/Off An Entire Group Of X10 Receivers

Quickly turn On/Off all the X10 lamp modules in your home with the X10 PRO 1-Button Keypad (All On/All Off). This keypad attaches to the front of an X10 PRO Wall Transmitter Base Module (XPT, sold separately) to create a custom X10 wall switch. Once installed, the keypad sends All Lights On/All Units Off commands to every X10 receiver set to the same House Code.

  • Attaches to the front of an XPT transmitter base
  • Controls all X10 receivers set to same House Code
  • True rocker action (left and right)
  • Fits standard Decora wallplates

Attaching the Keypad

Place the keypad onto the XPT transmitter base by inserting the tab on top of the keypad under the notch on the base. Gently, but firmly press the bottom of the keypad into place so that the pins on the back enter into the XPT base socket.

NOTE: The keypad must be attached to the front of an X10 PRO Wall Transmitter Base Module (XPT, sold separately). Wallplate not included.

The X10 PRO 1-Button Keypad is an X10 Wired-In Transmitter

A basic X10 system includes a Transmitter and a Receiver – both sold separately. Transmitters are control devices that send X10 signals through your home's electrical wiring to X10 Receivers. When a Receiver receives a command, it responds by turning a light, appliance or other electrical device On or Off, and sometimes Dim or Bright.

X10 Makes It So Easy To Automate Your Home!

X10 began manufacturing home automation and security products in the late 70s, establishing X10 as a smart home standard. X10 utilizes powerline technology to transmit control signals anywhere in your house over your existing electrical lines, so you can control lights and appliances throughout your home without running new wires! Have complete, automated control over lights and appliances from anywhere in your home with X10.


  • X10 Control: All On/All Off
