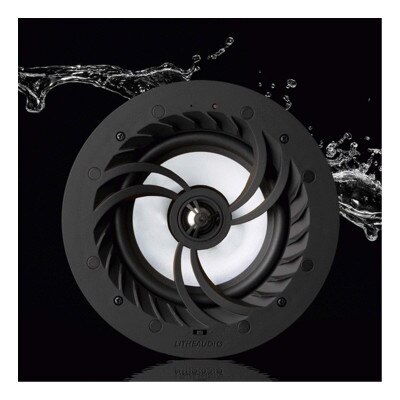

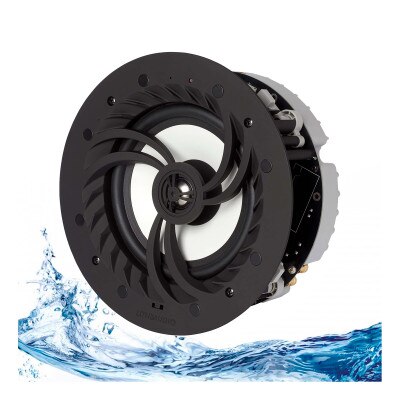

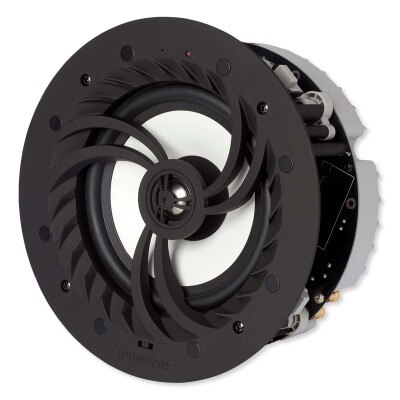

Lithe Audio All-In-One Wi-Fi and Bluetooth IP44 Bathroom Ceiling Speaker (Single)

Install A Speaker, Amplifier, and Receiver Into One Location

Add a wireless ceiling speaker anywhere within your home with the Lithe Audio All-In-One Wi-Fi and Bluetooth IP44 Bathroom Ceiling Speaker (Single). This Wi-Fi and Bluetooth connected speaker is designed with a built-in amplifier and Wi-Fi receiver so you can enjoy high resolution audio anywhere in your home for multi-channel or whole home audio setups. This in-ceiling speaker is water resistant with an IP44 rating, allowing for installation of the speaker within bathrooms or other high humidity rooms. Its built-in 60W RMS Class D amplifier, polypropylene cone, and titanium tweeter can deliver audio at 192 KHz at 24 bits, allowing the speaker to emit the highest possible quality from any connected source. The All-In-One Wi-Fi Ceiling Speaker supports wireless input via Wi-Fi and Bluetooth, as well as RCA connections. The speaker is fully certified with Apple AirPlay 2, Google Chromecast, and Spotify Connect for wireless audio streaming of popular sources such as Spotify, Pandora, Napster, Deezer, Tidal, Amazon Music, and more!

• Master single speaker with built-in 60W RMS Class D amplifier and Wi-Fi receiver for all-in-one premium audio solution
• 2.4GHz and 5GHz Wi-Fi and Bluetooth connectivity enables wireless streaming from paired devices, plus RCA wired connection

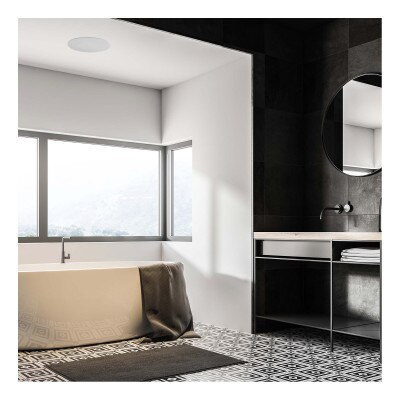

• IP44 water resistance lets you bring your music into your bathroom, no more acapella karaoke
• Apple AirPlay 2, Google Chromecast, and Spotify Connect certified
• Scalable with audio configurations between 2.0 to 7.1 Channels with Lithe Audio and third-party speakers
• Polypropylene cone and titanium cone produce high quality audio and pin sharp clarity
• Setup, pair devices and audio zones and adjust settings via the Lithe Audio mobile app for Android or iOS devices
• Integrates into smart home systems and is controllable with 3rd party remotes including AVA, ELAN, and more
• Optional WiSA compatibility for Dolby Atmos support, WiSA module (06521) sold separately
• Supports Control4, Elan, KNX, FIBARO & Loxone Drivers

Lithe Audio and ELAN Smart Home Integration

Lithe Audio Pro Series and Wi-Fi Active ceiling speakers are compatible with the Nice/ELAN smart home platform. This FREE driver software enables Lithe Audio Pro Series Speakers and Indoor Wi-Fi Ceiling Speakers (iO1 series not supported) to be controlled by an ELAN smart home system. This breakthrough integration brings every feature of Lithe Audio Wi-Fi speakers into ELAN smart home systems, enhancing the already premium smart home platform with superior audio quality and performance. Up to 5 pairs of Lithe Audio Wi-Fi speakers can be integrated into an ELAN system. Click the link here to download the driver from Lithe Audio.

Installation Details

The All-In-One Bluetooth & Wi-Fi Ceiling Speaker fits into ceilings with included mounting hardware and uses lighting circuits as its primary power supply out of the box. Simply cut holes in the desired locations in your ceiling, connect the speaker to the included Power Driver and your existing lighting circuit, and secure the speaker. If installing the All-In-One speaker in a bathroom or other high humidity room, do not install directly over a shower or bathtub.

The All-In-One speaker is configured from the Lithe Audio app, from where you connect the speaker to your Wi-Fi network, adjust settings, and connect other Lithe Audio speakers into audio zones. Once initial setup is complete, the speakers can also be selected via Google Home, or Apple Airplay, or Chromecast compatible sources.

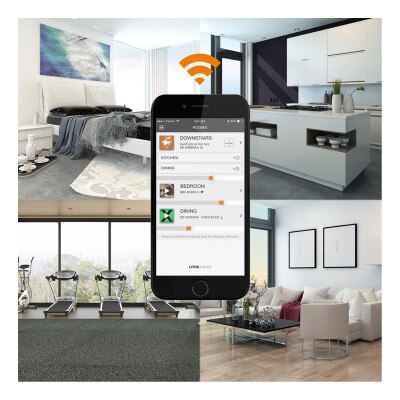

Lithe Audio App

The Lithe Audio app for iOS and Android devices lets you effortlessly control the music throughout your home from a single interface. It's simple and easy to set up thanks to automatic detection of all Wi-Fi speakers that are connected to your network. Easily drag and drop rooms into groups to play the same music in multiple spaces, or keep rooms separate to enjoy different music in each area simultaneously. You can fully personalize your zones, allowing speakers to be independently renamed, switched between Left and Right speaker output, and volume controlled.

Contents

• All-In-One Bluetooth & Wi-Fi Ceiling Speaker
• Power Driver
• Cutting Template
• Instruction Manual

Notes

Innovative Audio Products

As an innovative audio company based in the United Kingdom, Lithe Audio specializes in wireless audio technologies for the residential and hospitality markets. They offer an extensive selection of active ceiling speakers, each designed with cutting-edge innovation. Their expertise lies in Wi-Fi and Bluetooth technologies, seamlessly integrating with leading smart home brands like Apple, Amazon, Google, and Control4. This enables customers around the world to fully embrace the evolving audio landscape of today and the future.

• Manufacturer Part #: 06601
• EAN: 5060544555270
• Network Connection: Wi-Fi certified 2.4Ghz / 5Ghz (802.11a/b/g/n/ac)
• Connectivity:
• Wi-Fi Certified (2.4Ghz or 5Ghz)
• Bluetooth
• DLNA/uPnP connections
• Line in (RCA input)
• Apple AirPlay 2 certified
• Google Chromecast certified
• Spotify Connect certified
• WiSA with optional bolt-on module (06521 sold separately)
• Recommended Routers:
• Archer MR600 (TP-Link)
• UDM (Ubiquiti)
• 2866AC-K (Draytek)
• Woofer: 6.5" Polypropylene Cone
• Tweeter: 0.75" Titanium Cone
• Switch: Mono/Stereo
• RMS Power: 60W RMS
• Impedance: 8 Ohms nominal
• Sound Quality: THD+N 0.009%, 65Hz-20kHZ (± 3dB)
• Sensitivity (1W/1m): 90dB
• Audio Sample Rate: 8Khz
• Amplifier: Class D (Digital)
• Cut-Out Diameter: 210mm
• Power Input Supply: 100 – 240V, 50/60Hz / 2A
• Transformer Output Supply: DC24V / 2.5A
• Standby Power: 1.3W / 0.02A
• Connected Power: 1.5W / 0.03A
• Playing Music: 2.8W – 10.5W / 0.03A – 0.09A
• IP Rating: IP44
• Dimensions: 9.05 W x 3.66 D inches (230 W x 95 D mm)
• Operating Temperature: 32 – 104°F (0 to 40°C)
• Storage Temperature: -4 – 158°F (-20 to 70°C)
• Weight: 3.7kg
• Warranty: 2-Year Limited
