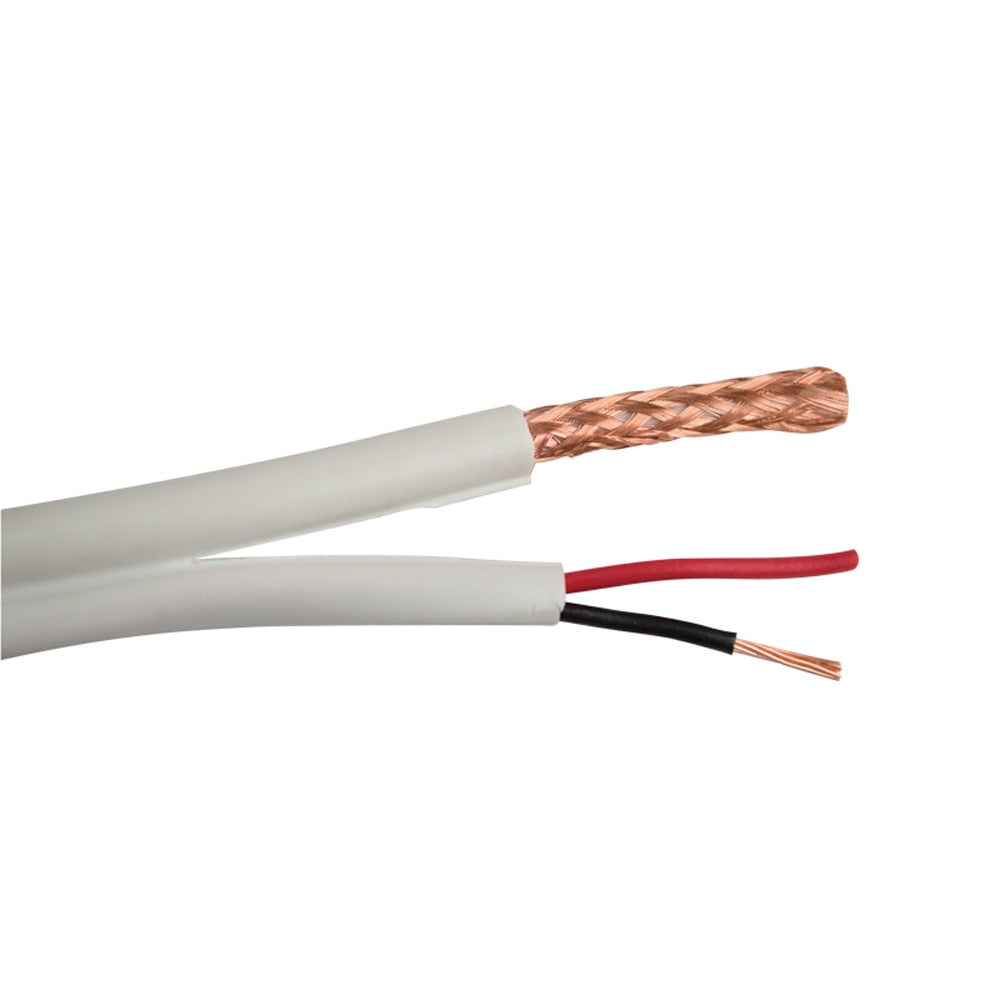

Siamese Cable (1 RG59/U Single Shield Coax, 1 Power 18/2), Plenum Rated, 1,000 Ft.
WR182RG59PL10
$623.95
Coax & Power Cable for CCTV Applications
Perfect for video surveillance installations, this Siamese Cable (Plenum Rated, 1,000') has one RG59/U Single Shield Coax Cable and one 18/2 Power Cable bonded together for convenient, single-run wiring. Use the coaxial cable for video and the 18/2 cable to power your cameras. Plenum rated for use in air circulation spaces, each cable's co-polymer jacket meets low smoke and low flame requirements to reduce the spread of flames in the event of fire. It comes in spools of 1,000 feet.
- 18 AWG/2C power cable bonded to RG59/U coax cable
- Ideal for commercial or residential CCTV applications
- Plenum rated jackets meet low smoke and low flame requirements
- Coax with solid copper center conductor (20 AWG, 75 Ohm)
- Foam polyethylene dielectric insulation surrounds conductor
The coax cable is single-shield with a 20 AWG solid copper center conductor
