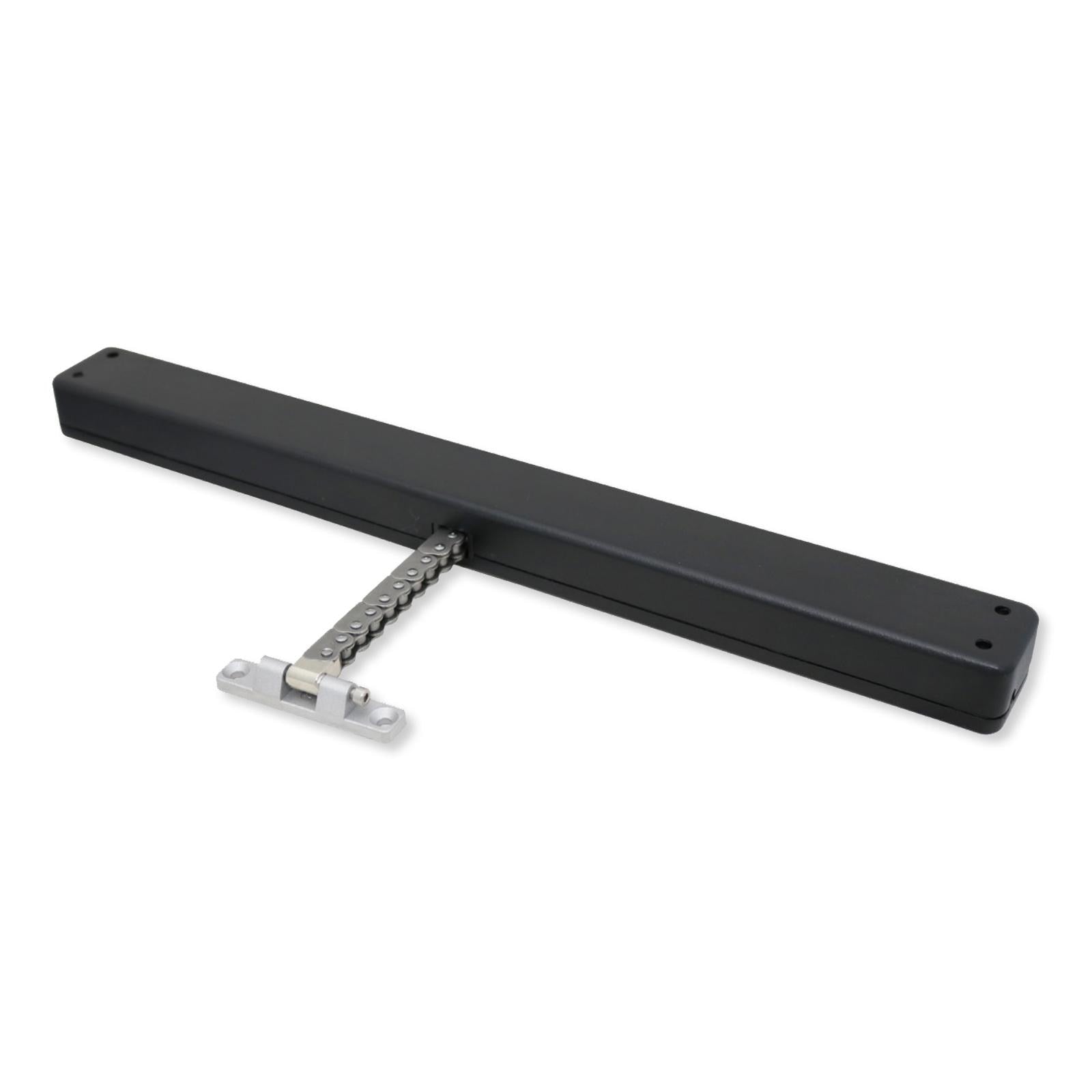

  • UCS Vega Window Motor System, DC, Black

    UC41149UUL

    Notify me when this product is available:

    Chain Self-Adjusts For Proper Closing

    Easily Open/Close your windows, skylights, or awnings with the UCS Vega Window Motor System, DC, Black. This electric motorized system includes a 12-inch chain operator for skylights and awning or hopper windows. The automatic blinds motor connects directly to the sash. This actuator features a double-link stainless steel chain, with a chrome-plated brass terminal. Multiple motors can be wired in parallel. This electric curtain motor is UL Listed.

    • Motorized actuator for skylights, awnings or hopper windows
    • Connects direct to sash; no operator needed as with other brands
    • Double-link stainless steel chain with chrome-plated brass terminal
    • Chain electronically self-adjusts for proper closing at installation
    • Operate several openings simultaneously by wiring motors in parallel

    Installation Details

    The motor system moun

    • Manufacturer Part #: 41149UUL
    • Opening: 12" (300 mm) maximum opening chain stroke
    • Dimensions: 1-3/4" H x 1-1/4"W x 17-3/4" L (45 x 32 x 450 mm)
    • Force: 66 lbs. (300 N) in push and pull
    • Speed: 0.375 inch (9 mm) per second
    • Min. Height: Minimum 10" sash height if using pivoting brackets; minimum 35-1/2" (900 mm) if brackets are not used
    • Remote: see Vega RF with remote control, or use Vega below with CRM and remote
    • Warranty: 2 Year
