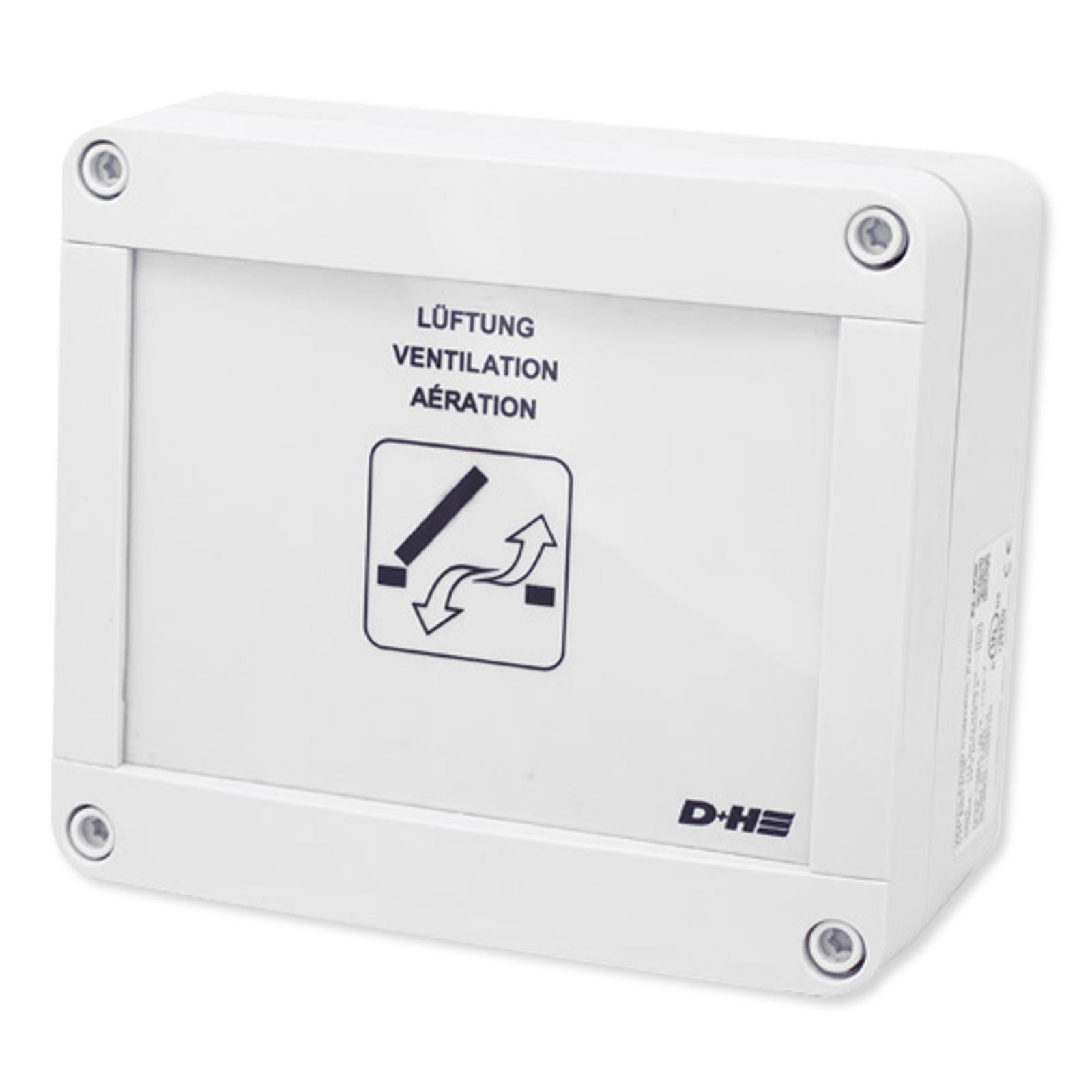

D+H Compact Ventilation Control Panel, Single Group

Power Your Automated Awnings and Windows

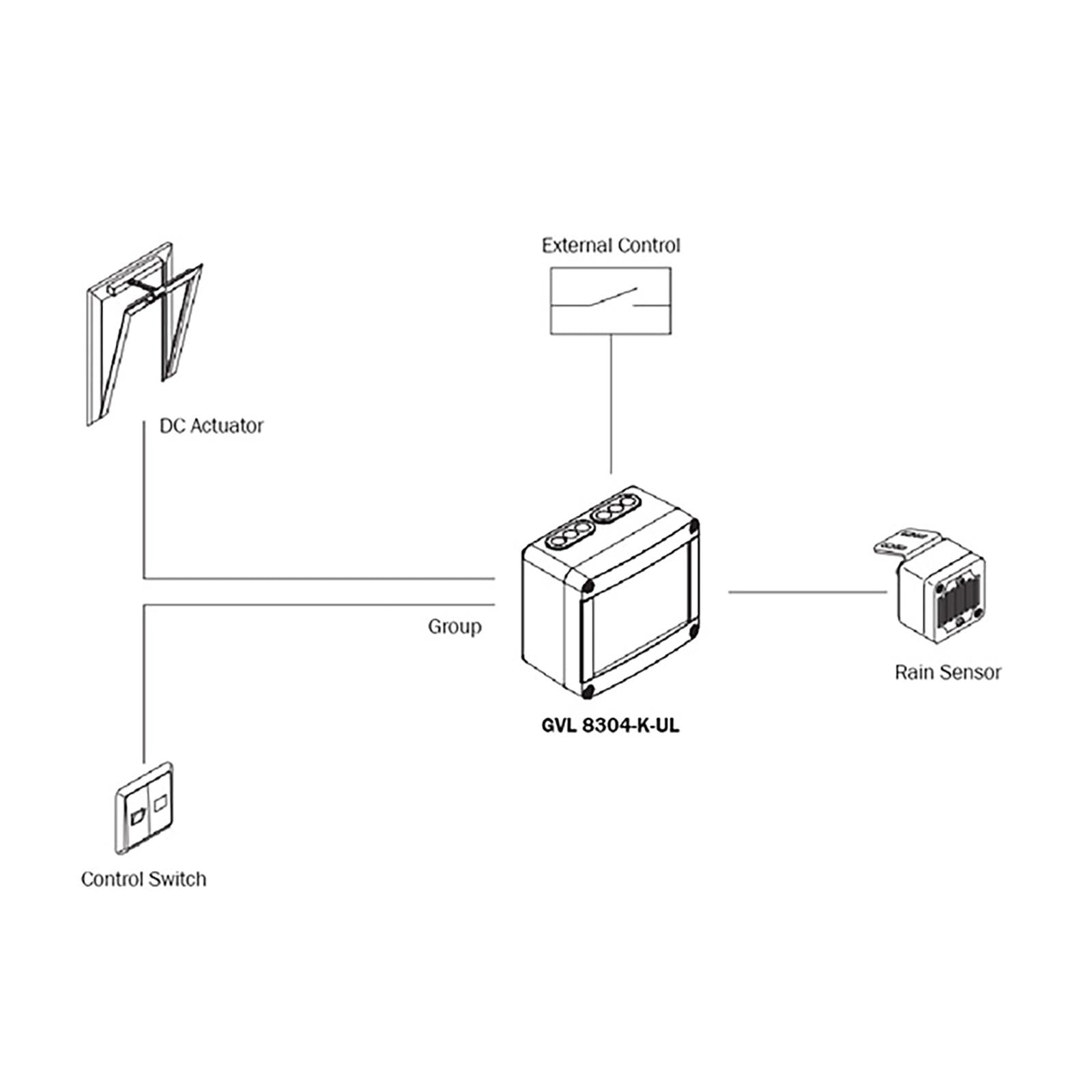

Power a VDC actuator for motorized windows, skylights, or large ventilation panels along with compatible accessories with the D+H Mechatronic Compact Ventilation Control Panel, Single Group. This self-contained control panel provides power for a single VDC actuator and compatible accessories with a combined load of 4 amps for various applications. The Control Panel acts as the interface between VDC Actuators (motorized windows and awnings), sensors, and external controllers or switches. Quick connect input and output mounting terminals make installation fast and easy. The Control Panel is compatible with almost any type of window or awning opening including top-hinged awnings, bottom-hinged hoppers, side-hinged casements, hung, sliding, or parallel windows, skylights, curtain walls and other vents.

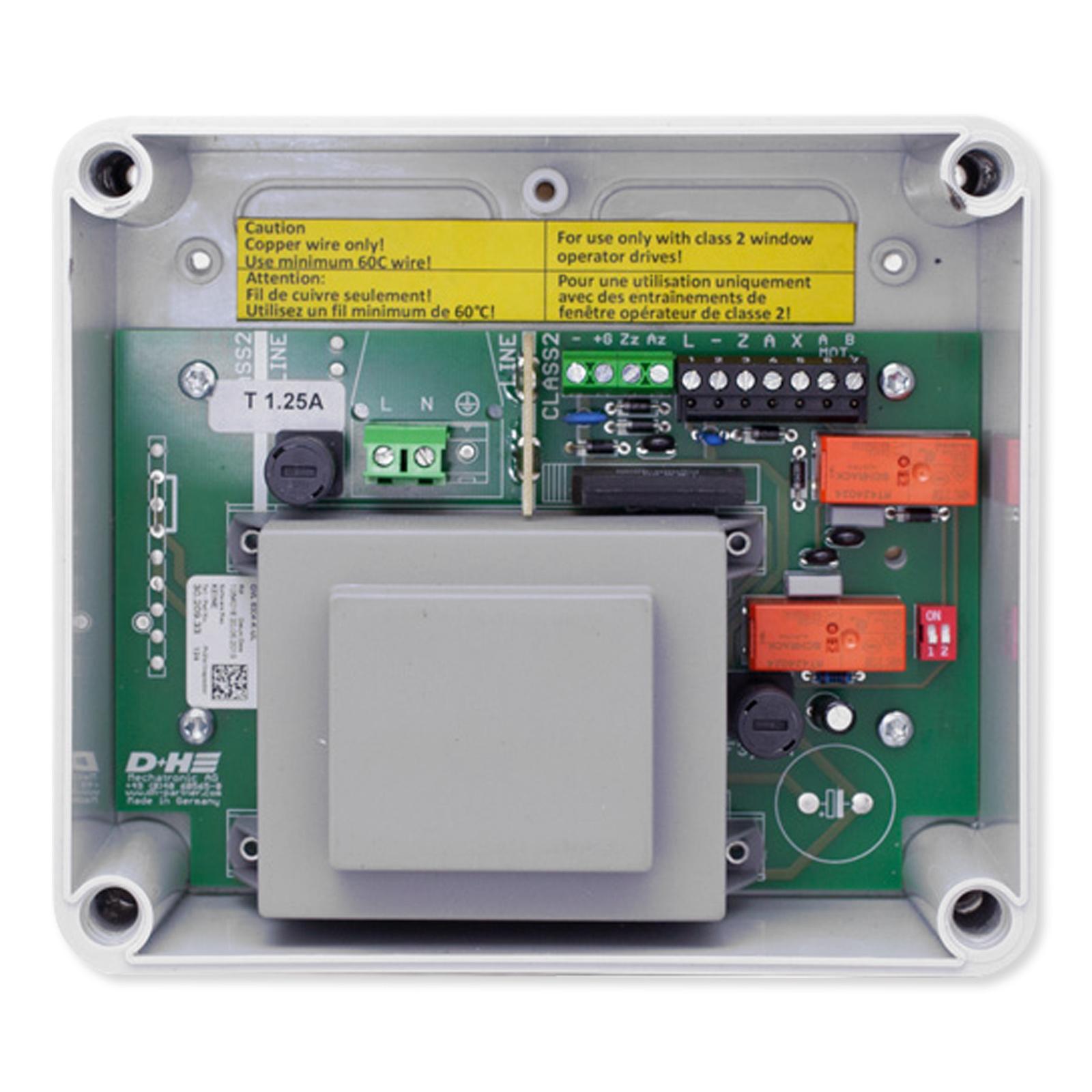

• Self-contained, powered control panel for 24VDC actuators
• 24VDC output with up to 4A t
