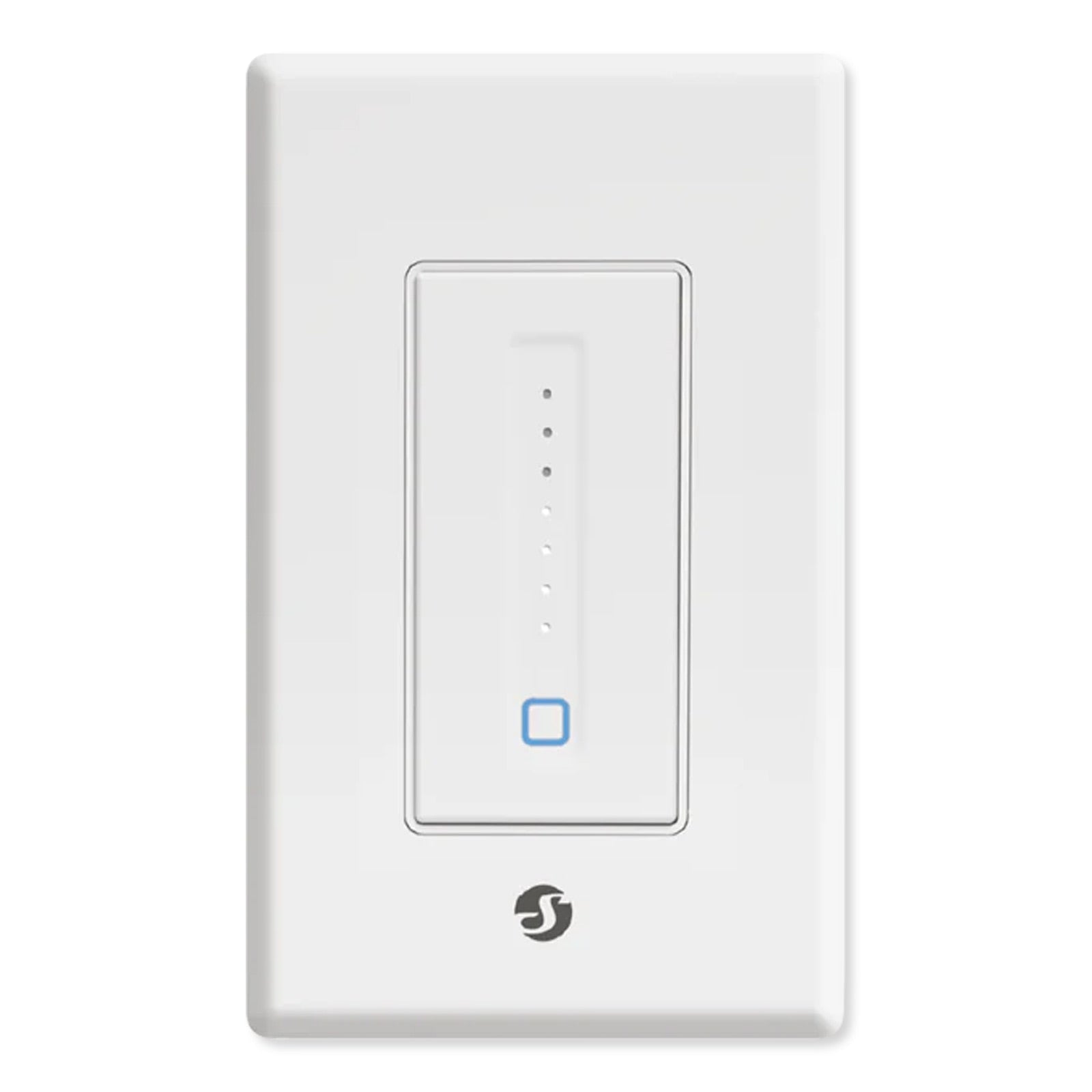

Shelly Wi-Fi Plus Wall Dimmer

Add Remote Wi-Fi Control And Dim/Brighten to Your Lighting

Easily adjust the brightness of your lights remotely via Wi-Fi technology with the Shelly Plus Wi-Fi Wall Dimmer. This smart Wi-Fi dimmer provides a range of up to 100 ft (30m) indoors and 160 ft (50m) outdoors and supports a maximum load of 400W for incandescent bulbs and 150W for dimmable LED and CFL lights at 120 VAC. Remote control of the Shelly Plus Wi-Fi Wall Dimmer is conducted via the Shelly Smart Control App, which will allow you to set up and monitor the connected light from any place you have Internet connectivity, as long as the device is connected to a Wi-Fi router and the Internet. This smart wall dimmer is designed with LED buttons for power (Blue LED) and the slider (White LED), which indicate Wi-Fi connectivity status and brightness levels. Additionally, the dimmer includes built-in direct compatibility with Samsung SmartThings, and Amazon Alexa and Google Assistant, which allows it to be controlled with voice commands without needing a smart home hub or dedicated smart assistant device.

• Wi-Fi connected dimmer switch enables local and remote On/Off and Dim/Brighten control of most dimmable bulb types
• Range of up to 100 ft (30m) indoors and 160 ft (50m) outdoors
• Designed with Blue LED power button and slider with white LED for increase/decrease brightness
• Other features include a night mode, weekly schedules, and auto on/off timers
• Remote Wi-Fi control via the Shelly Smart Control App for iOS and Android
• Voice control compatible with Amazon Alexa and Google Assistant, and works with Samsung SmartThings – no hub required

Installation Details

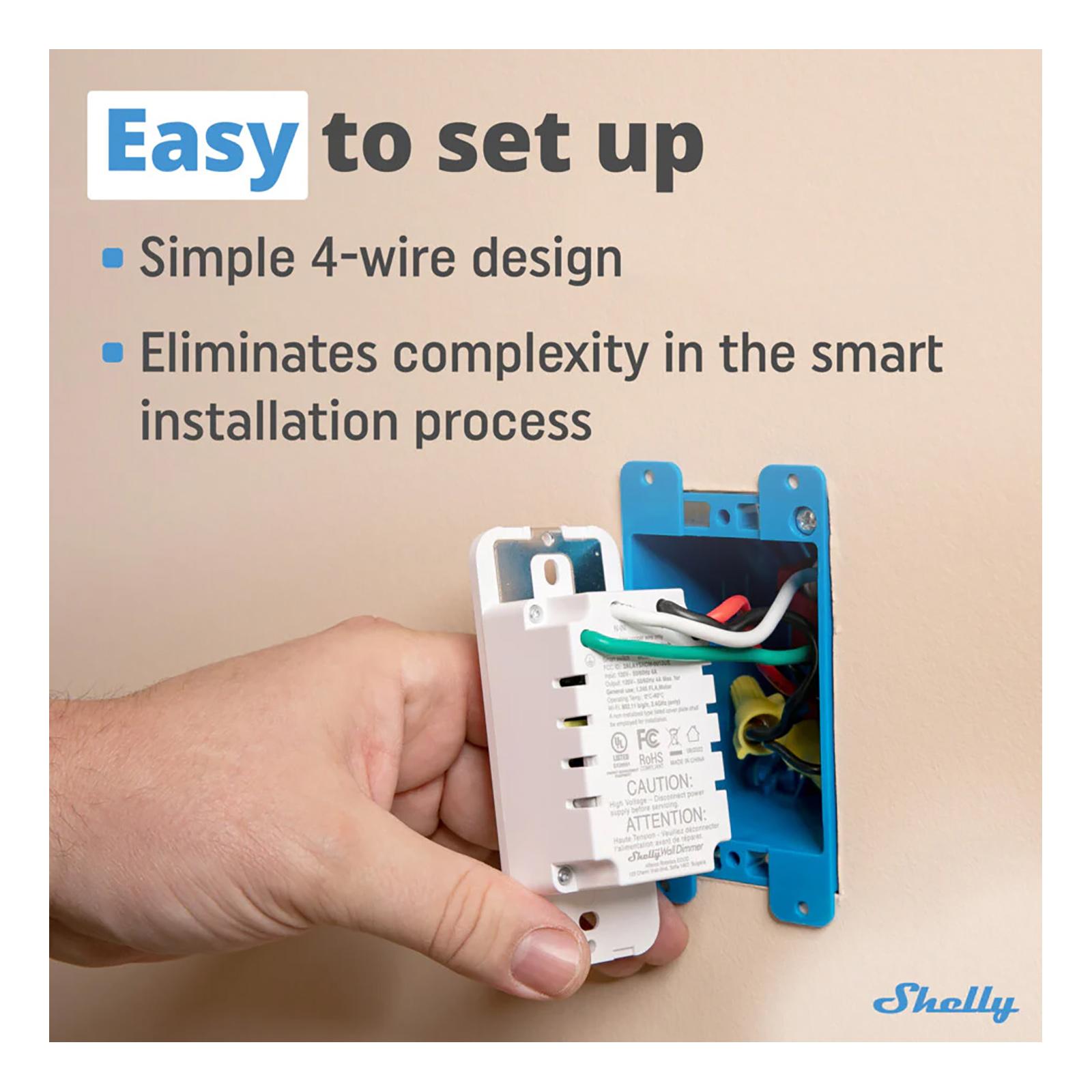

The Shelly Plus Wi-Fi Wall Dimmer supports a maximum load of 400W for incandescent bulbs and 150W for dimmable LED and CFL lights at 120 VAC. It has a range of up to 100 ft (30m) indoors and 160 ft (50m) outdoors and can easily replace an existing light switch. The dimmer switch requires standard screw terminal installation with wiring connections for Live (Hot), Load, Neutral, and Ground.

Shelly Smart Control App – Everything at Home Connected

Enjoy enhanced home automation control and precise monitoring of your Shelly devices no matter where you are with the Shelly Smart Control app. The app connects to Shelly's cloud service to help you control your connected devices remotely and send notifications for all automated events in your home directly to your smart device. You can easily configure devices and manage their settings individually, or you can create personalized scenes by combining Shelly devices to trigger certain actions in your home automation. The Shelly Smart Control App supports real-time power metering with power management (PM) devices, smart plugs, and smart bulbs in order to allow you to build complex automation solutions for improved energy efficiency and lower electricity bills.

• Easy Inclusion and Control: Include and name new devices in the Shelly Smart Control app, assign them to the rooms they are located in, and group them into scheduled or automated scenes.
• Custom Dashboard: Create multiple dashboards for quick access to your preferred devices, rooms, and scenes. Issue commands using your dashboards or your preferred voice assistant towards individual devices or a group of devices.
• Smart Scenes: Combine multiple devices into one smart scene with pre-set triggered actions. Lower the lights when the TV is turned on for a "Movie night". Cut off the power and send a notification when a space heater has been left past 9am while you are "Away at Work".
• Custom Schedules and Timers: Teach your home how to make you more comfortable by setting custom schedules based on your agenda. You can set a Shelly controlled switch to turn on the outdoor lights at 7:00 PM on workdays, or turn on your heater an hour before you return from work.
• Energy Monitoring: An energy consumption panel gives you a detailed view of your live and recorded energy usage from devices controlled by Shelly products. The information is stored in a free cloud and fully accessible to you for further analysis of your energy consumption habits.
• Works with Alexa: The Shelly Smart Control app is natively compatible with Amazon Alexa.

Contents

• Plus Wi-Fi Wall Dimmer
• Manual

NOTE: Requires connection to a Wi-Fi network.

Shelly Provides A 100% Wireless Smart Home

Shelly creates innovative and affordable smart home devices for residential and business applications. Shelly, formerly Qubino, now focuses on providing Wi-Fi and Z-Wave compatible smart home solutions. Shelly devices are among the smallest automation control devices in the world, allowing them to find their place in nearly any sized smart home installation. Shelly utilizes the latest technologies to deliver superior automation, safety, and energy efficiency to their customers without breaking down their walls or bank accounts.
