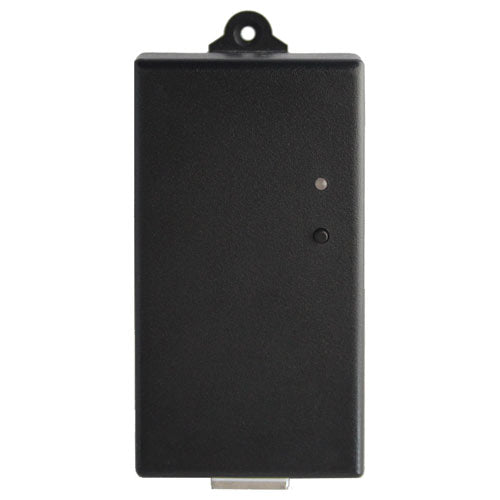

  • PCS PulseWorx UPB Gateway

    PCPGW

    All-In-One UPB Interface for Remote Access

    PulseWorx by Powerline Control Systems (PCS) Logo

    Featuring a built-in IP web server as well as a Timed Event Controller, the PCS PulseWorx Gateway is an all-in-one UPB interface that enables remote access to a UPB network through any web-enabled device, such as your smartphone, tablet, or PC. The interface connects your UPB network to a free mobile app, giving end-users remote control from anywhere. The UPB interface also gives installers remote programming capabilities through the app by connecting to UPStart Configuration Software. From system programming to turning lights On/Off, the PCS PulseWorx Gateway gives you remote control for everything UPB.

    • Enables IP remote control for a UPB network
    • Connects to free app for i

    Technical Details

    • Manufacturer Part #: PGW

    Electrical

    • Power Requirements: Primary: 120 Volts AC, 50/60Hz
    • Transmission Channels: 256 individual timed events over 4 schedules
    • Standby Power Consumption: > 0.8 Watts
    • Connections/Power Wire: 3-pin grounded outlet
    • Network Connection: RJ45 Connector; 100/10 Mbp Ethernet protocol; Adheres to TCP, DHCP and HTTP standards
    • TCP Port: 2101
    • Telnet Port: 2001
    • Secure TCP Port: 2601
    • Baud Rate: 4800
    • Data Bits: 8
    • Parity: None
    • Stop Bits: 1
    • Flow Control: None
    • Environmental Conditions: Indoor Use Only
    • Temp

    »PCS PulseWorx PGW UPB Gateway Specifications (.pdf)»PCS PulseWorx PGW UPB Gateway User Guide (.pdf)»PCS PulseWorx PGW UPB Gateway Quick Start Guide (.pdf)

    UPStart UPB Software

    This Windows-based application, along with a PCS PulseWorx UPB Gateway, allows you to program, configure and test your UPB smart home automation system. »Free download here
