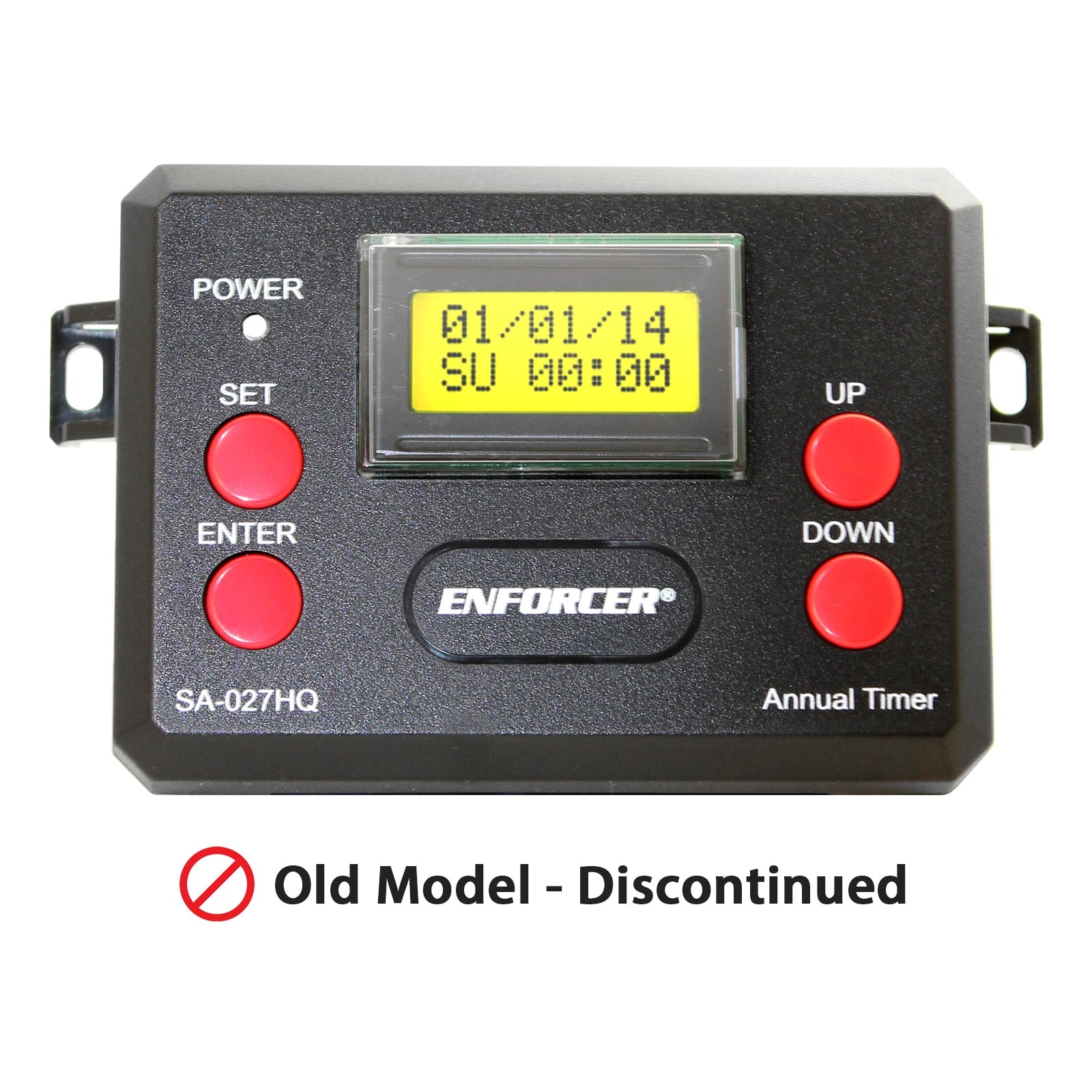

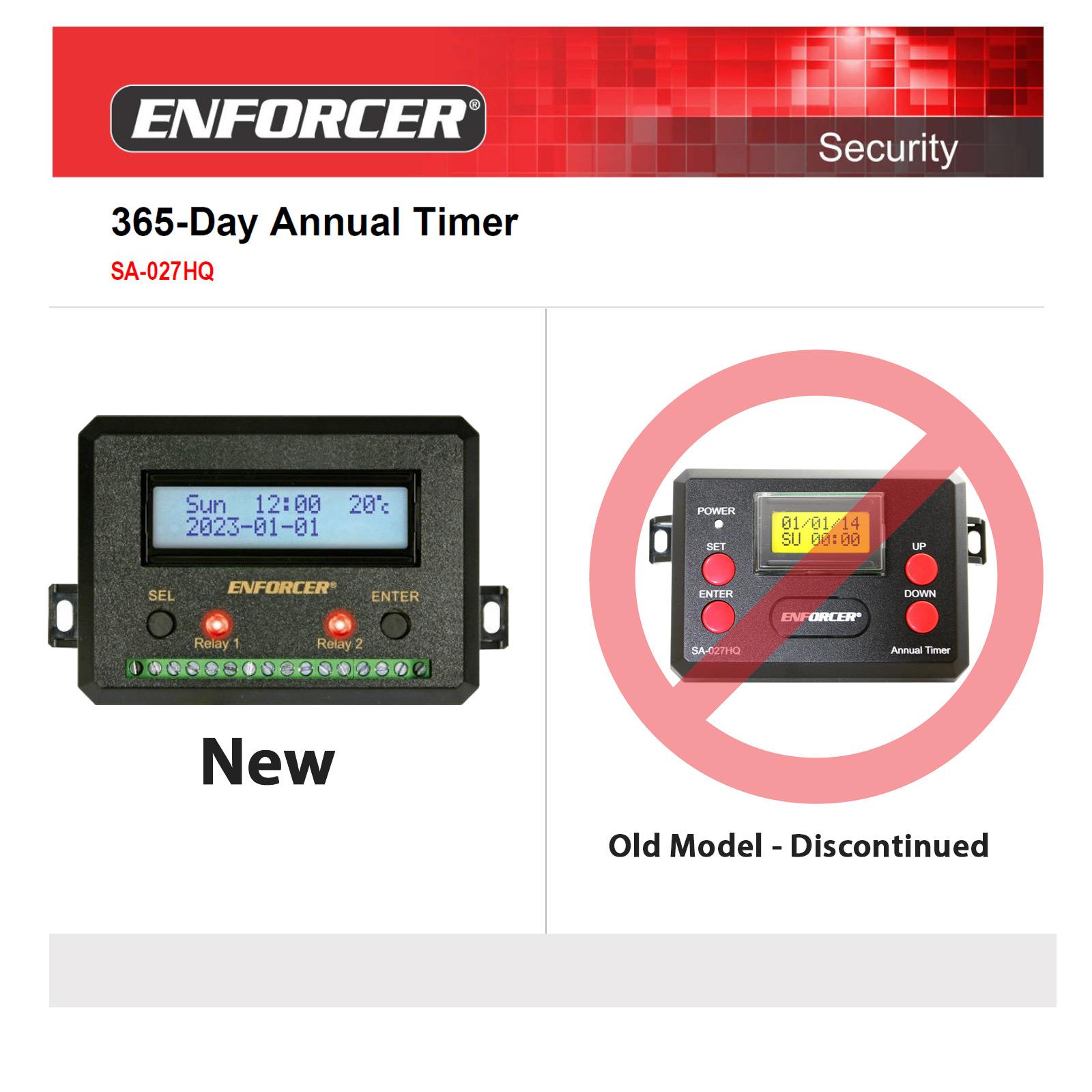

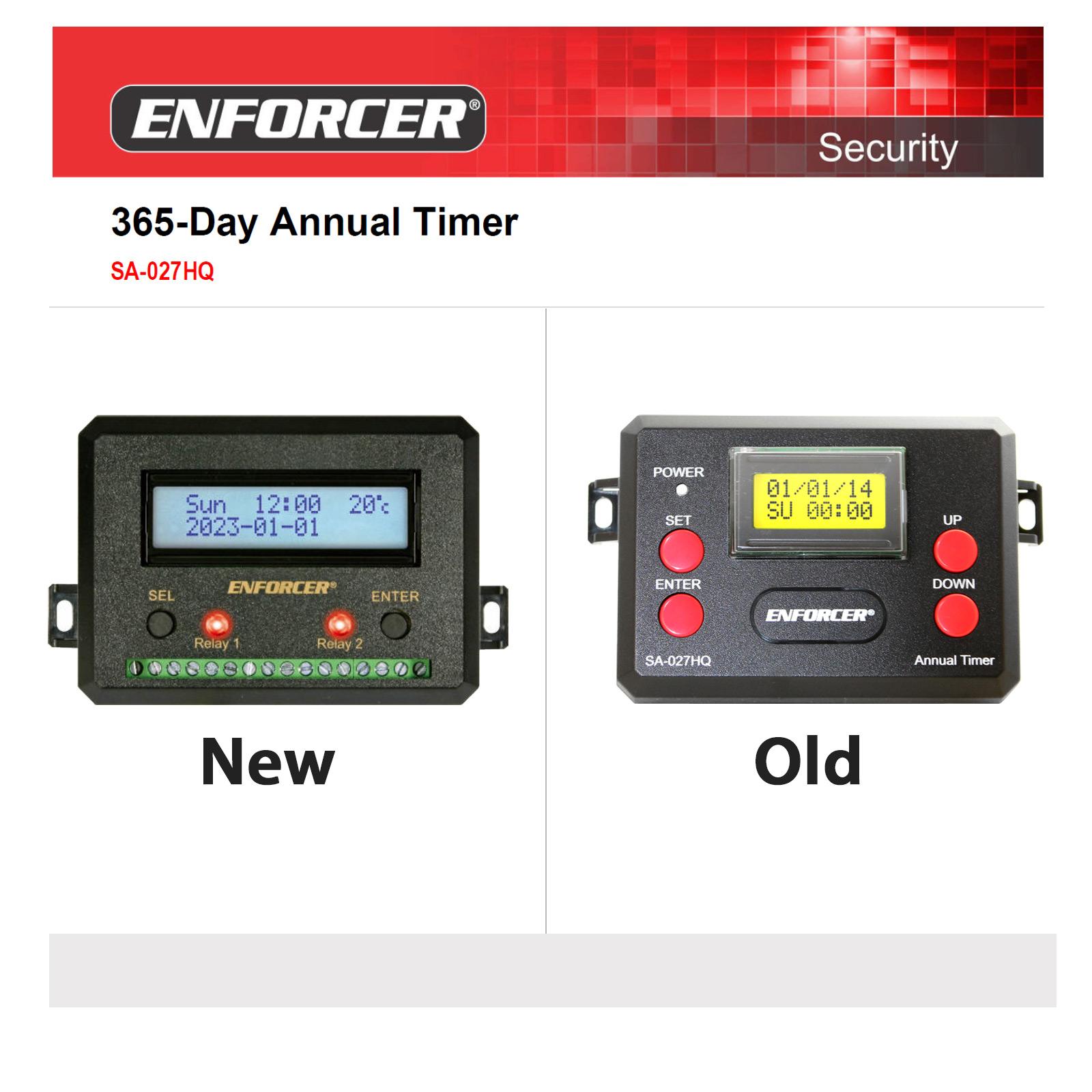

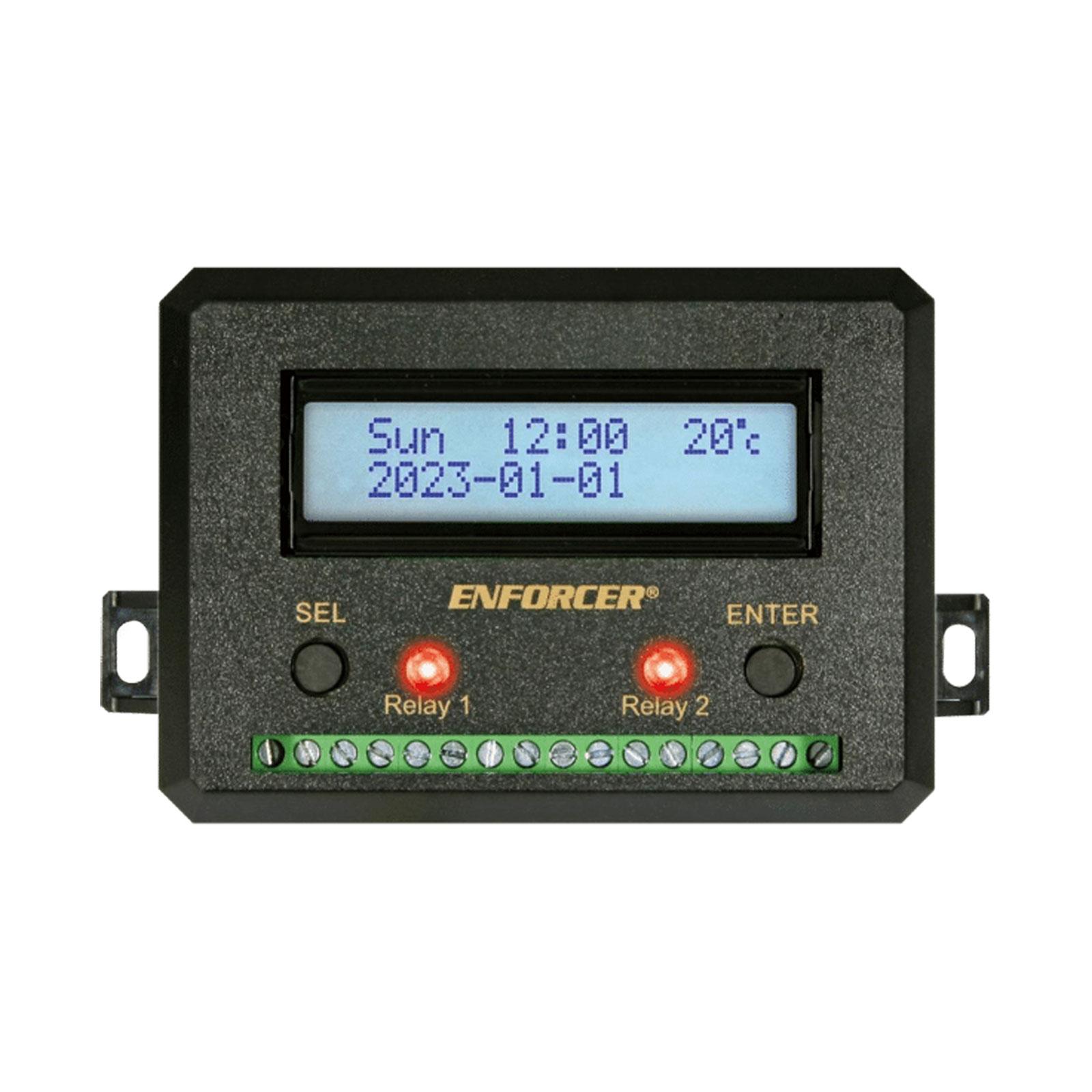

  • Seco-Larm Enforcer Annual Timer Module

    SESA027HQ

    Notify me when this product is available:

    Program Hundreds of Schedules for 2 Relays

    Create comprehensive automatic schedules for almost any N.O. or N.C. relay device with the Seco-Larm Enforcer Annual Timer Module. The timer has two Form C relays, allowing you to program two devices independently to operate on weekly, daily, or hourly schedules throughout the year. It's perfect for a variety of applications, including security, lighting control, climate control, and access control.

    • Schedules weekly, daily, or hourly events for two relays
    • Stores up to 99 events for each relay (198 total)
    • Relays operate independently or in tandem
    • Backlit LCD screen makes programming easy
    • Full backup options ensure reliable operation

    Advanced Scheduling Options for Precise Control

    The Annual Timer Module features an alphanumeric backlit LCD screen and a few simple buttons to make programming easy. Each relay can we progr

    • Manufacturer Part #: SA-027HQ
    • UPC: 676544015581
    • Relay: Dry Form C x2 10A@24VDC
    • Connection: 16 pins
    • Operating Voltage: 10-48 VDC, 12~24VAC
    • Egress Input: Yes
    • First Man Input: Yes
    • Backup Battery Type: 12VDC Battery (Not included)
    • LCD Display: 16x2 Standard module
    • Program Switch: 2
    • LED Indicator: 2x Relay Red LED Indicator
    • Backlight: Yes, White LED
    • Tandem: Yes, disable/enable (by program)
    • Timer Backup Battery: Super capacitor
    • Memory Backup During Power Failure: Yes
    • Clock Format: 24 Hour
    • Security Code: 4-digits, numeric, ON/OFF
    • Setting Time: Visual
