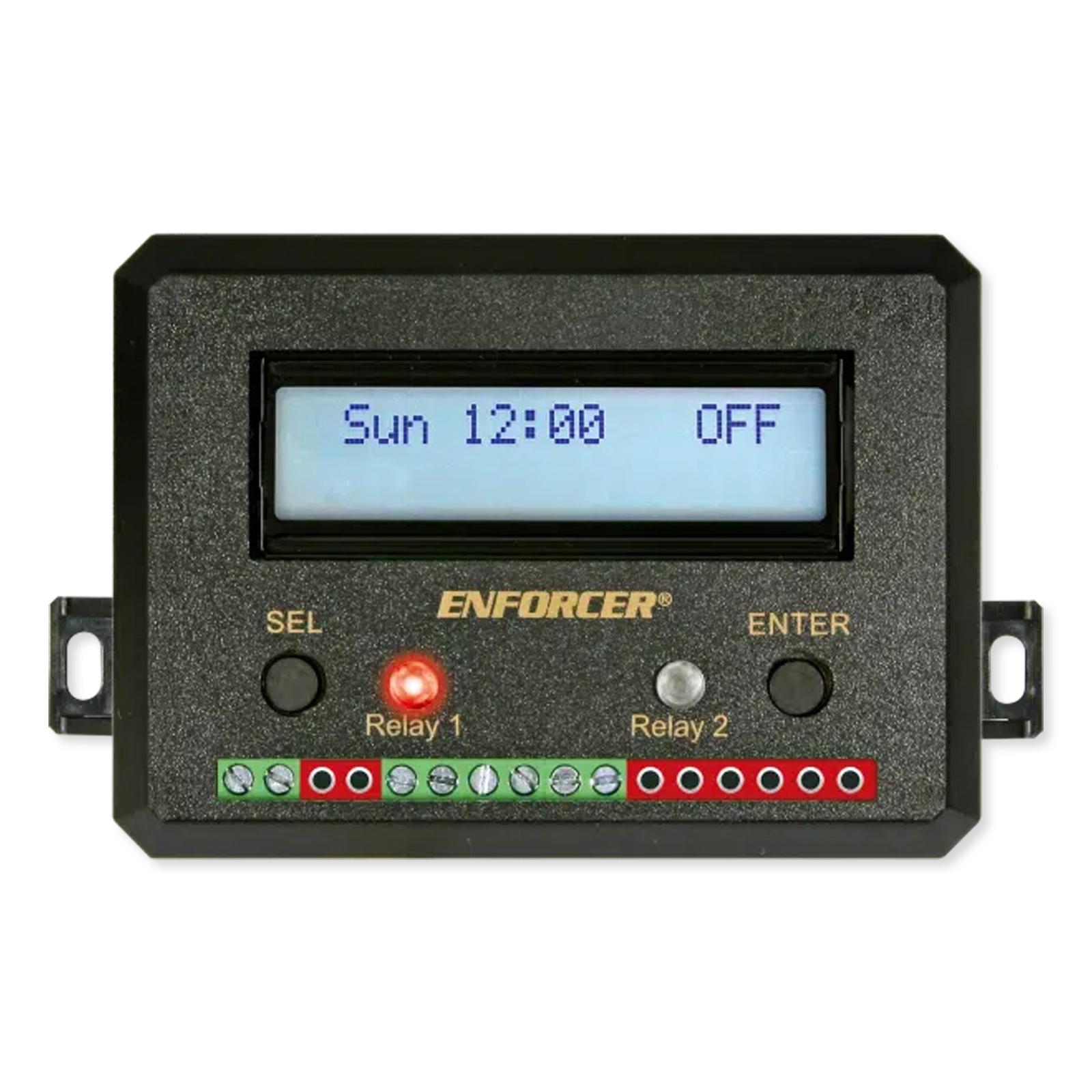

  • Seco-Larm Enforcer 7-Day Timer Module

    SESA027WQ

    Notify me when this product is available:

    Program Up To 60 Flexible Events

    Create automatic schedules for almost any N.O. or N.C. relay device with the Seco-Larm Enforcer 7-Day Timer Module. The timer has a one Form C relay, allowing you to program a device independently to operate on a weekly, daily, or hourly schedule throughout the year. Schedule a gate, for example, to open and close on a daily schedule. Or create the appearance that you're home while away on vacation by scheduling your lights to turn on during the day and off at night. It's perfect for a variety of applications, including security, lighting control, climate control, and access control.

    • Schedule appliances and devices to turn on/off at certain times
    • Integrated, backlit LCD display for easy viewing and programming
    • Program up to 60 flexible events
    • Holiday Function disables the timer for a single day weekly
    • Preserves scheduled times during a power failure

    Other Product Features

    • One (1) N.O. or N.C. Form C relay, 10A@14VDC, with an egress input
    • EEPROM Memory for safe data protection in case of power failure
    • Easy troubleshooting status checks – relay test, power input voltage
    • Event outputs can be programmed to disable, ON, OFF, shunt, or momentary (1 to 99 seconds)
    • Enable/Disable 1-hour offset as a quick setting during Daylight Savings Time

    Technical Details

    • Manufacturer Part #: SA-027WQ
    • UPC: 676544012184
    • Operating Voltage: 10 to 48 VDC / 12 to 24 VAC
    • Number of Relays: 2 Form C
    • Relay Contact Rating: 10A@14VDC
    • Relay Active Current Draw: 110mA@12VDC ±10% (per channel)
    • Standby Current Draw: 14mA@12VDC ±10%
    • Backu
