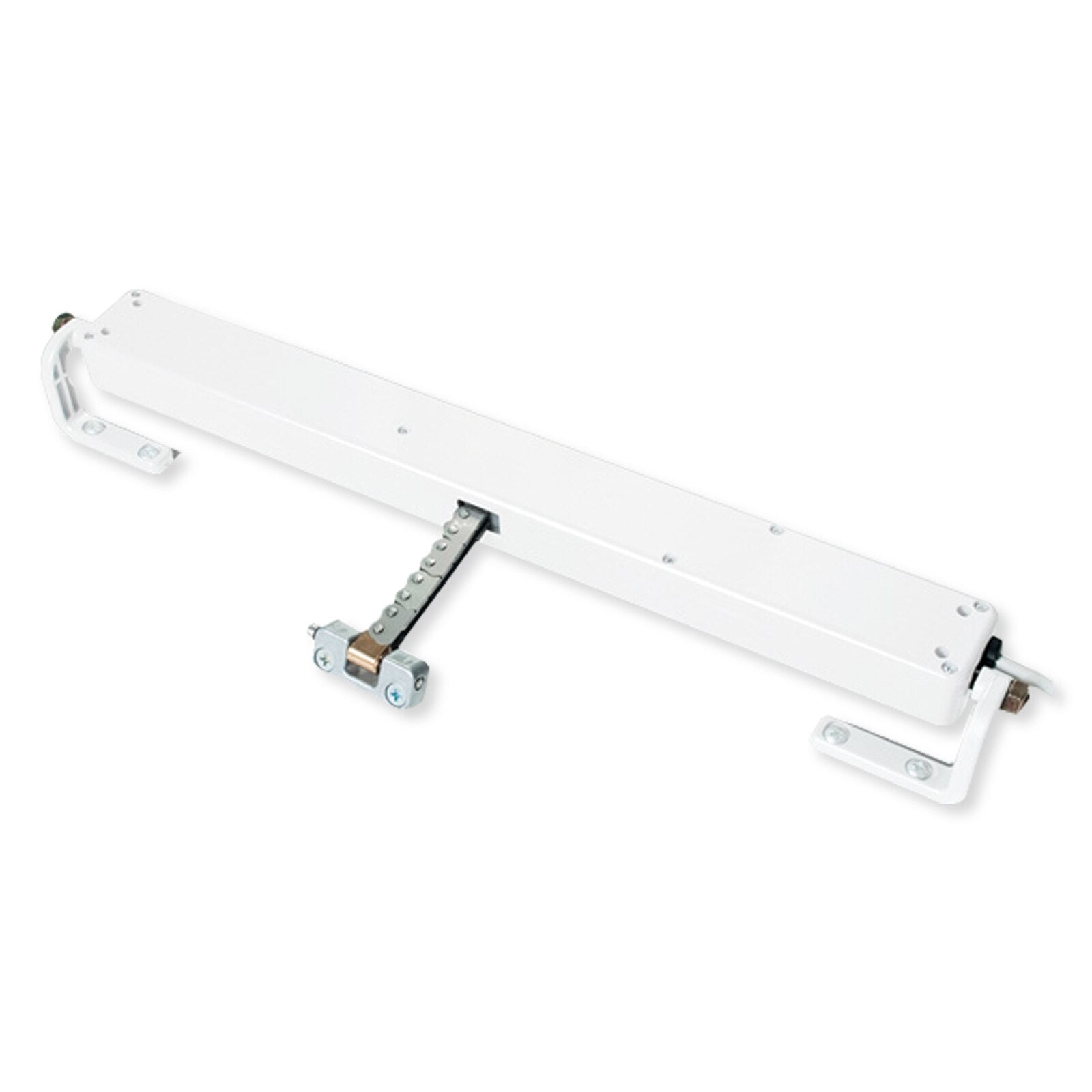

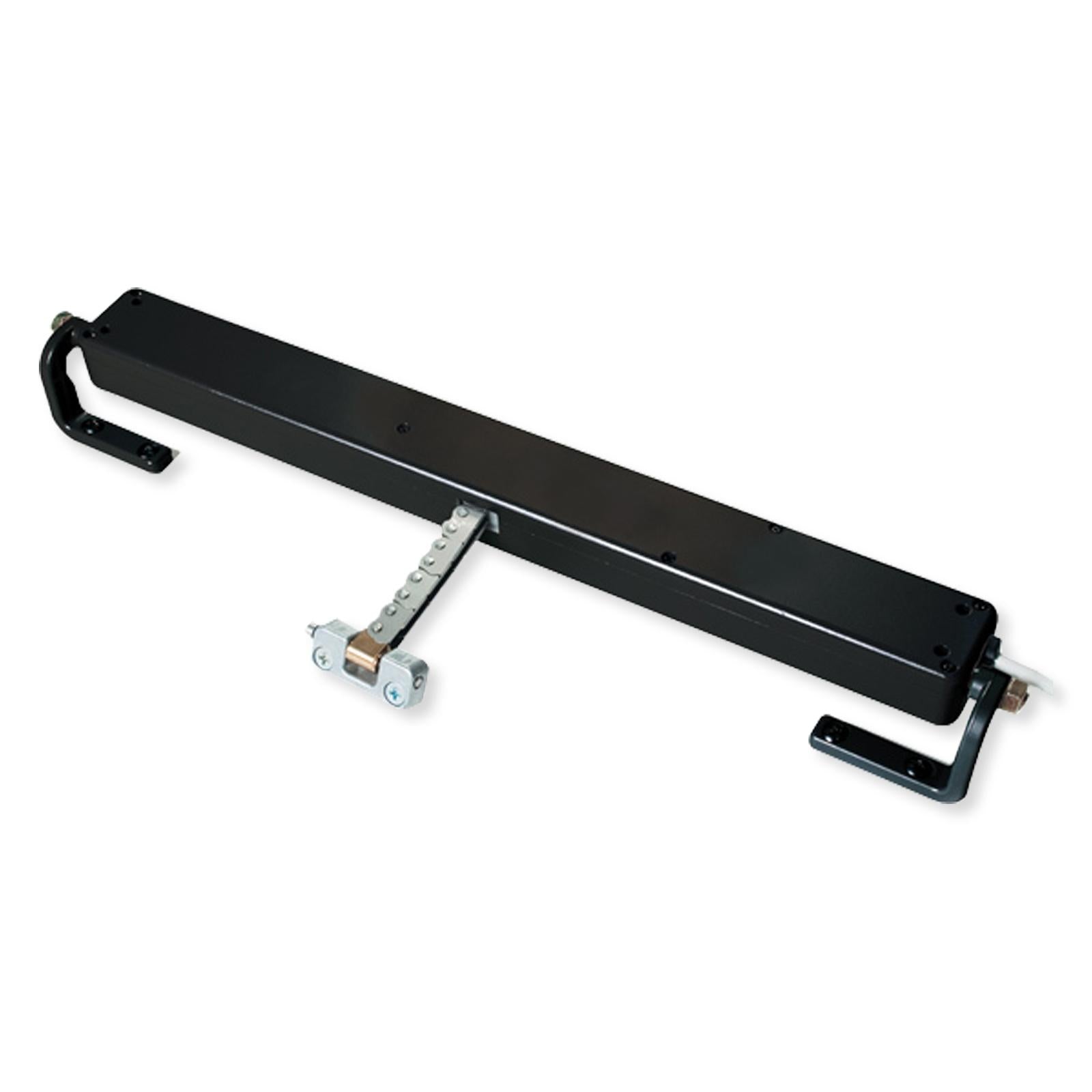

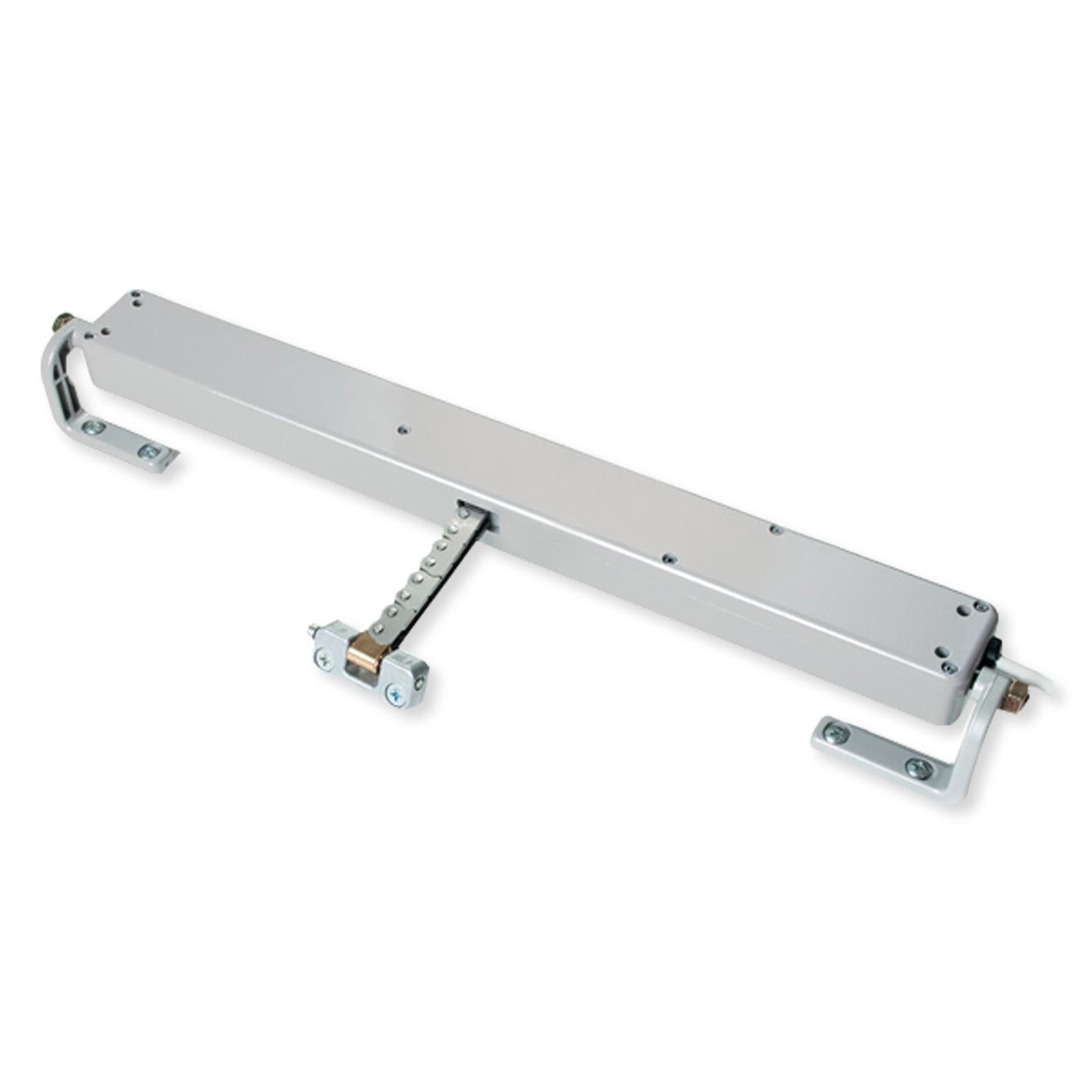

UCS Vega AC Series Centered Chain Orientation Actuator

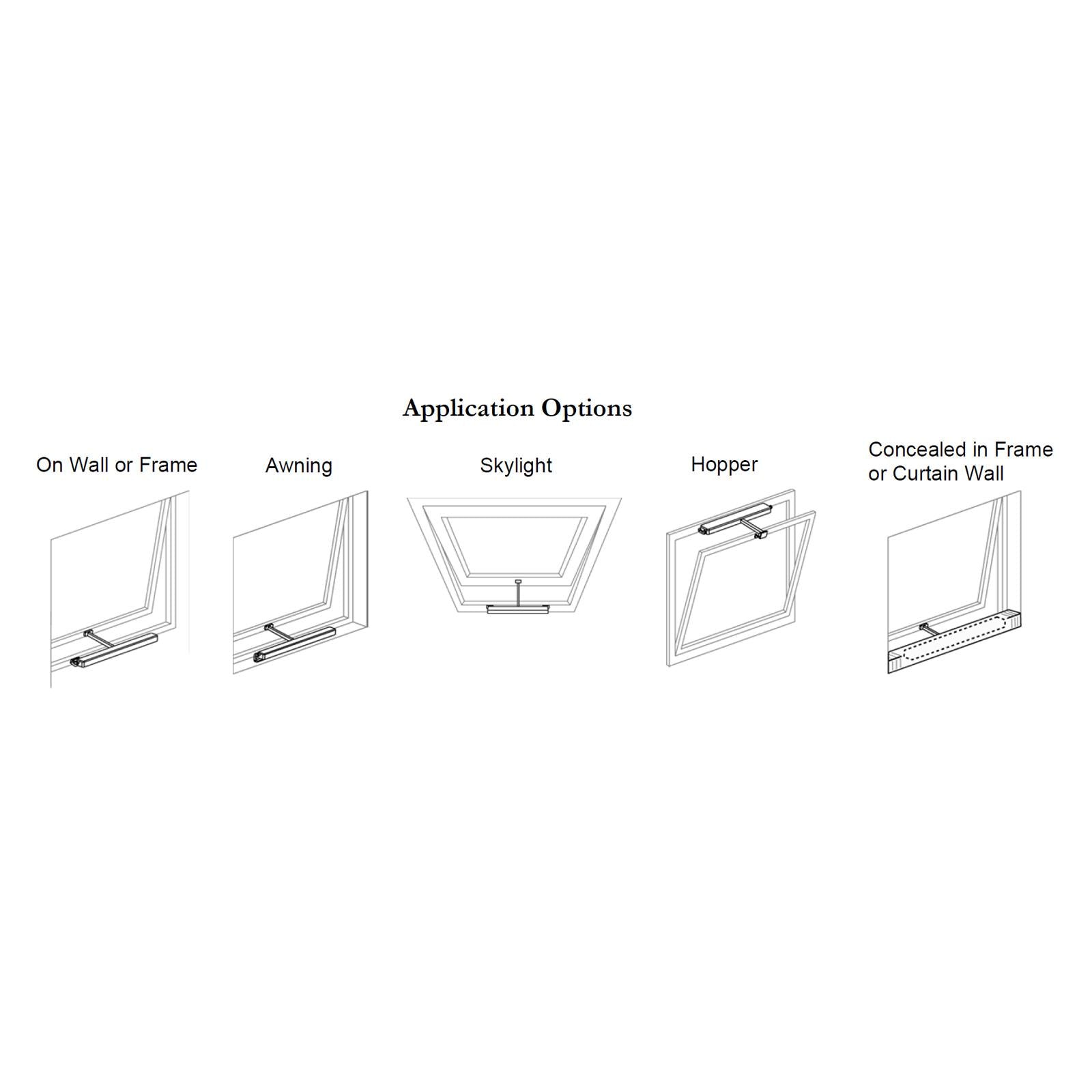

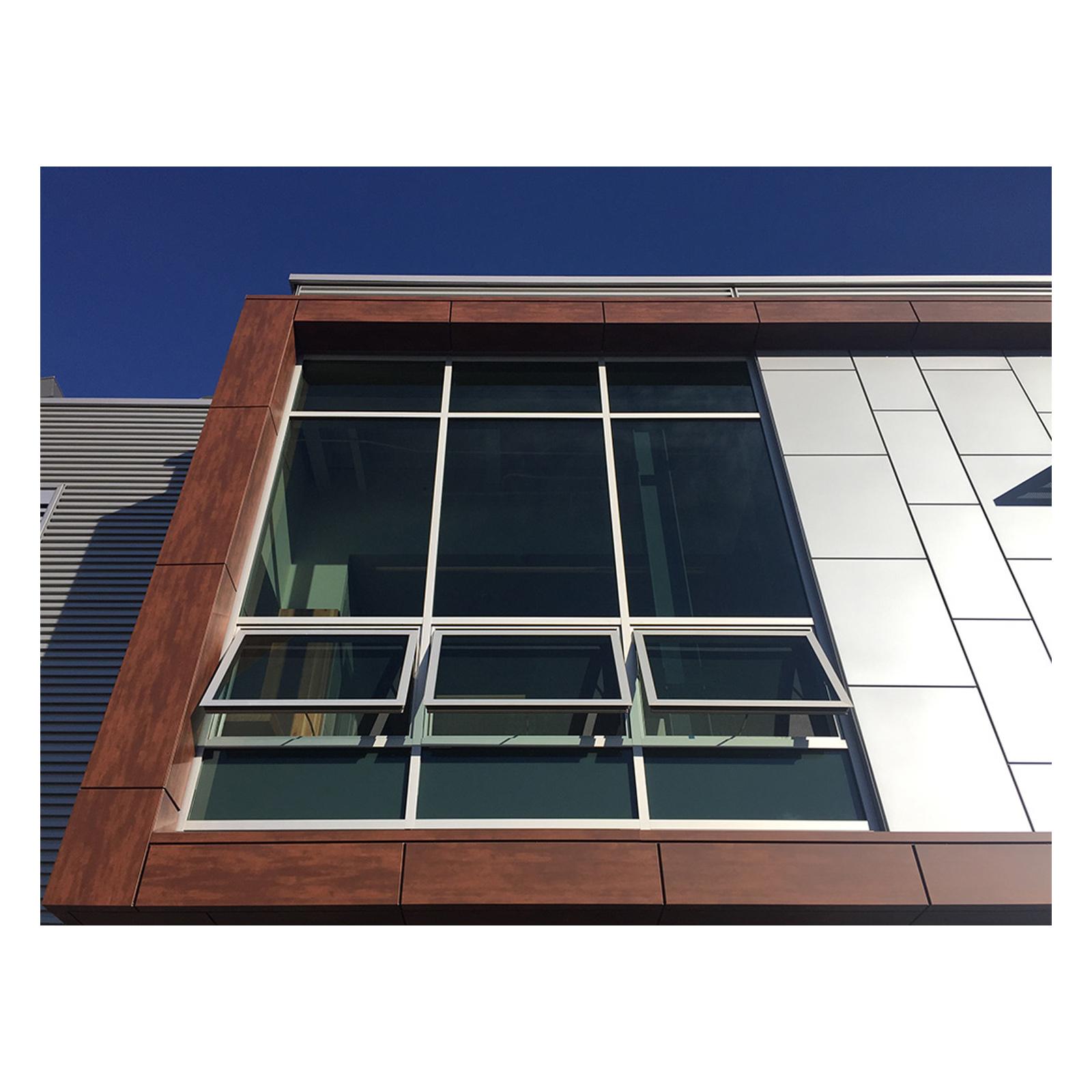

Automate Awning Or Hopper Windows, Skylights, Or Curtain Wall Vents

With a 12-inch chain operation and a push/pull force up to 66 lbs. (300 N), the UCS Vega AC Series Centered Chain Orientation Actuator is ideal for automating a skylight, awning window, hopper, or curtain wall vent. The double-link chain is not only made of stainless steel and centered in an attractive aluminum case but also self-adjusting for proper closure during installation. The design of this actuator provides an opening distance of up to 12-inches (300mm) and even allows for multiple actuators to be linked for simultaneous operation of multiple windows.

• 12-inch (300mm) chain operator for a curtain wall vent, hopper, skylight, or an awning window
• Push/pull force up to 66 lbs. (300 N)
• Self-adjusting chain operator for proper closure during installation
• The operator has a stainless steel, double-link chain for rigidity and durability
• Low-profile, attractive aluminum case
• The minimum sash height is 10 feet
• Two-year UCS manufacturer's warranty

Contents

• Vega AC Chain Actuator
• Manual

NOTE: Do not tamper with the actuator, or the warranty is void. Mounting brackets are sold separately.

UCS Vega Motor System

The UCS Motor System is ideal for skylights, awnings or hopper windows. The motor connects directly, easily to sash; no operator needed as with other brands. The chain is double-link, all stainless steel, and centered in the case; the chain terminal is chrome-plated brass. It can be easily built-in into the frame of curtain walls. Stopping in a closed position is regulated by an internal limit switch. The motor stops in intermediate positions in case of overload.
