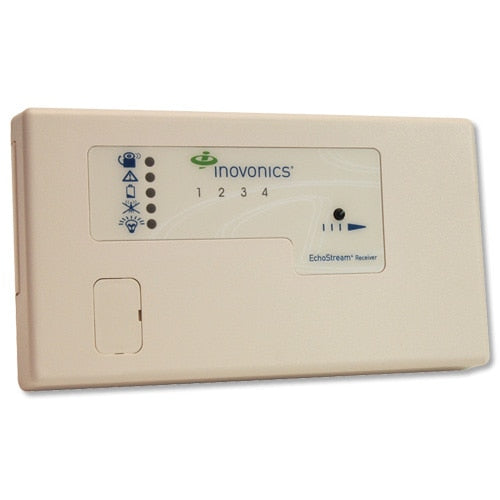

  • Inovonics 4 Zones Add-On Receiver with Relay Outputs

    INEN4204R

    Notify me when this product is available:

    DEALER ONLY ITEM: Not Available Directly to End Users.

    Dealers, log on to see pricing. »Sign up to become an authorized installer.

    Reliable, Versatile Security

    The Inovonics EchoStream Four Zone Add-On Receiver with Relay Outputs programs and supervises up to four Inovonics transmitters in your security system. Relay outputs provide versatility by allowing connection to any hardwire panel or stand-alone wireless application. With diversity reception and advanced signal processing, Inovonics Wireless EchoStream technology minim

    • Platform: EchoStream
    • Housing: 6.38" x 3.60" x 1.10" (162 mm x 92 mm x 28 mm)
    • Operating environment: 32 to 140 degrees F (0 to 60 degrees C), 90 percent relative humidity, non-condensing
    • Power requirement: 11 to 14 VDC; 150 mA (EN4204), 400 mA max (EN4204R with all five relays energized)
    • Current consumption: Approx. 135 mA; approx. 400 mA max (EN4204R with all five relays energized)
    • Output specifications: Open collector, drive down to .4V at 100 mA (EN4204); Form C relay 1A at 28 VDC, 0.5A at 30 VAC resistive load (EN4204R); N/O receiver case tamper contact closure, N/C receiver jam output indication.
    • Input specifications: A low is less than .5 V; a high is greater than 2.5 V.
    • Reset input: Contact closure, momentary low.
    • Receiver type: Frequency hoppi
