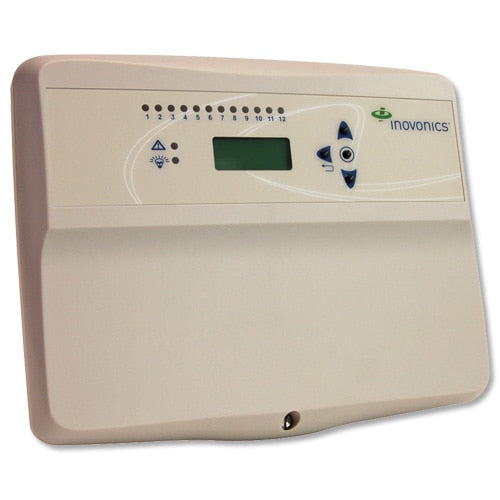

Inovonics 32 Zones Multi-Condition Receiver with Relay Outputs

Full-Featured Receiver For Up To 32 Transmitters

The Inovonics EchoStream 32 Zone Multi-Condition Receiver with Relay Outputs allows you to add up to 32 single or multi-condition transmitters and 12 outputs to any home security application. Case tamper protection, jam detection, and internal antennas increase wireless security, and with diversity reception and advanced signal processing, Inovonics EchoStream technology minimizes dead spots in transmission areas. The receiver can also be fully supervised when registered with your system.

• Add up to 32 EchoStream wireless transmitters to any installation
• Supports both single and multiple condition transmitters
• 12 Form C relays connect any hardwire panel or stand-alone wireless application
• LED indicators signal the current status of connected transmitters
• Configure outputs in follower, latching, momentary, or toggle modes independently
• Built-in wireless programming routine
• Removable tabs for easy installation

LCD Display Features

The two line text display shows a log of the last 50 events that have occurred, including alarms, tamper faults or inactive faults. The Delete Point option allows you to delete transmitter registration information from all registered points, or from a specific point. Measure and troubleshoot the signal strength of each connected transmitter with the Signal Strength option.

Contents

• Receiver
• Installation anchors and screws

Inovonics Wireless: Developed For Commercial Applications

The Inovonics Commercial Mesh Network has been specifically developed for commercial applications to provide the most cost-effective solution for a wide range of applications, while setting new standards for performance and reliability in a wireless sensor network.

Reliability: Inovonics EchoStream 900MHz radio utilizes a unique frequency hopping, spread spectrum technology to meet the demands of an increasingly cluttered wireless world.

Flexibility: The flexibility of wireless is a necessity in today's dynamic commercial environments. The self-configuring EchoStream Commercial Mesh Network allows you to adapt to changing floor plans and requirements in a matter of minutes. New sensors can be added to the network as fast as they can be mounted.

Scalability: The EchoStream Commercial Mesh Network's backbone of intelligent repeaters can extend coverage to thousands of sensors across entire commercial campuses.
