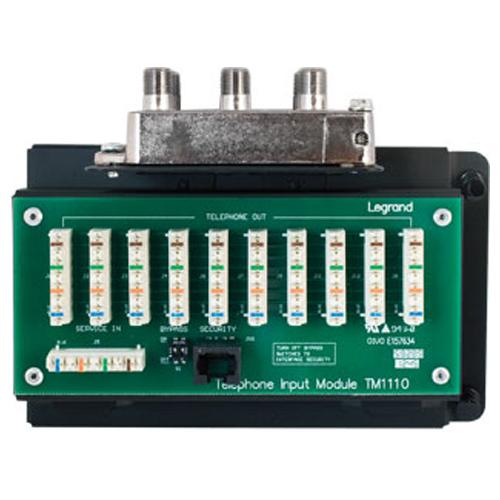

    On-Q/Legrand 10x8 phone & Video Combo Module, 110 with RJ31X (1Ghz)

    On-Q/Legrand 10x8 phone & Video Combo Module, 110 with RJ31X (1Ghz)

    OQCO1110

    $67.57

    Notify me when this product is available:

    Distributes 1 GHz Video to 8 Locations

    Designed to mount in a structured wiring enclosure, the On-Q/Legrand 10x8 Combo Module (110 Punchdown Connections with RJ31X) distributes up to 4 incoming phone lines to 10 locations, and one 1GHz HD video signal to eight locations. The coaxial video splitter supports passive digital HDTV cable signals and features compatibility with existing and future networks such as VoIP and DOCSIS 3.0. In addition to splitters, the module also provides an RJ31X line seizure port for security applications.

    • Distributes four 110 IDC Punchdown telecom lines to 10 locations
    • Distributes one 1 GHz passive digital HDTV video to 8 locations
    • Works with existing and future networks
    • RJ31X line seizure port for security applications
    • Includes mounting bracket with detachable platform

    The 10x8 Combo Module comes ready to install with a mounting bracket that has a detachable pl

    • Manufacturer Part #: CO1110
    • Type: Telecom/Video Module
    • Material: 18 Gauge Cold Rolled Steel
    • Color: Black
    • Mounting: Enclosure
    • Cable Type: Cat5, Cat5e, Cat6, Coaxial
    • Receptacle Type: IDC(10), F Connector(8), RJ31X(1)
    • Number of Receptacles: 19
    • Ohm Value: Splitter: Nominal impedance 75 Ohms
    • Surge Protected: Splitter: Surge Withstand 6 kV Ring Wave Surge per IEEE C62.41 Category A3
    • Operating Temperature: -40° to 140° F (-40° to 60° C)
    • Dimensions: 6.0(W) x 5.0(H) x 3.1(L) inches (15.2 x 12.7 x 7.9 cm)
    • Weight: 1.53 pounds
    • UL Standard: Yes
    • UN SPS C: 43222819

    »On-Q/Legrand 10x8 (C01045) Combo Module / (CO1110) 110 Punchdown Connections with RJ31X CutSheet (.pdf)»On-Q/Legrand 10x8 (C01045) Combo Module / (CO1110) 110 Punchdown Connections with RJ31X Installation Instructions (.pdf)
