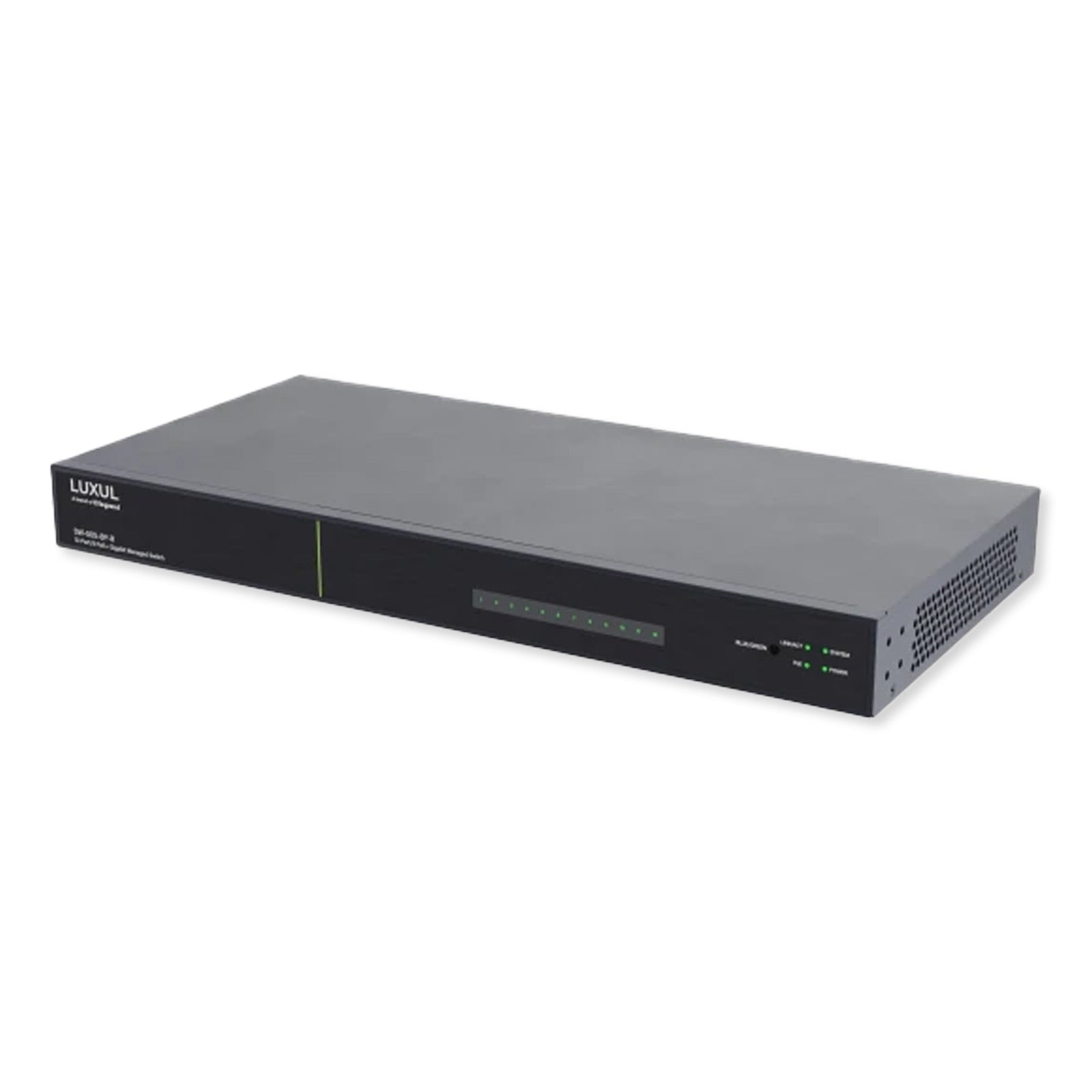

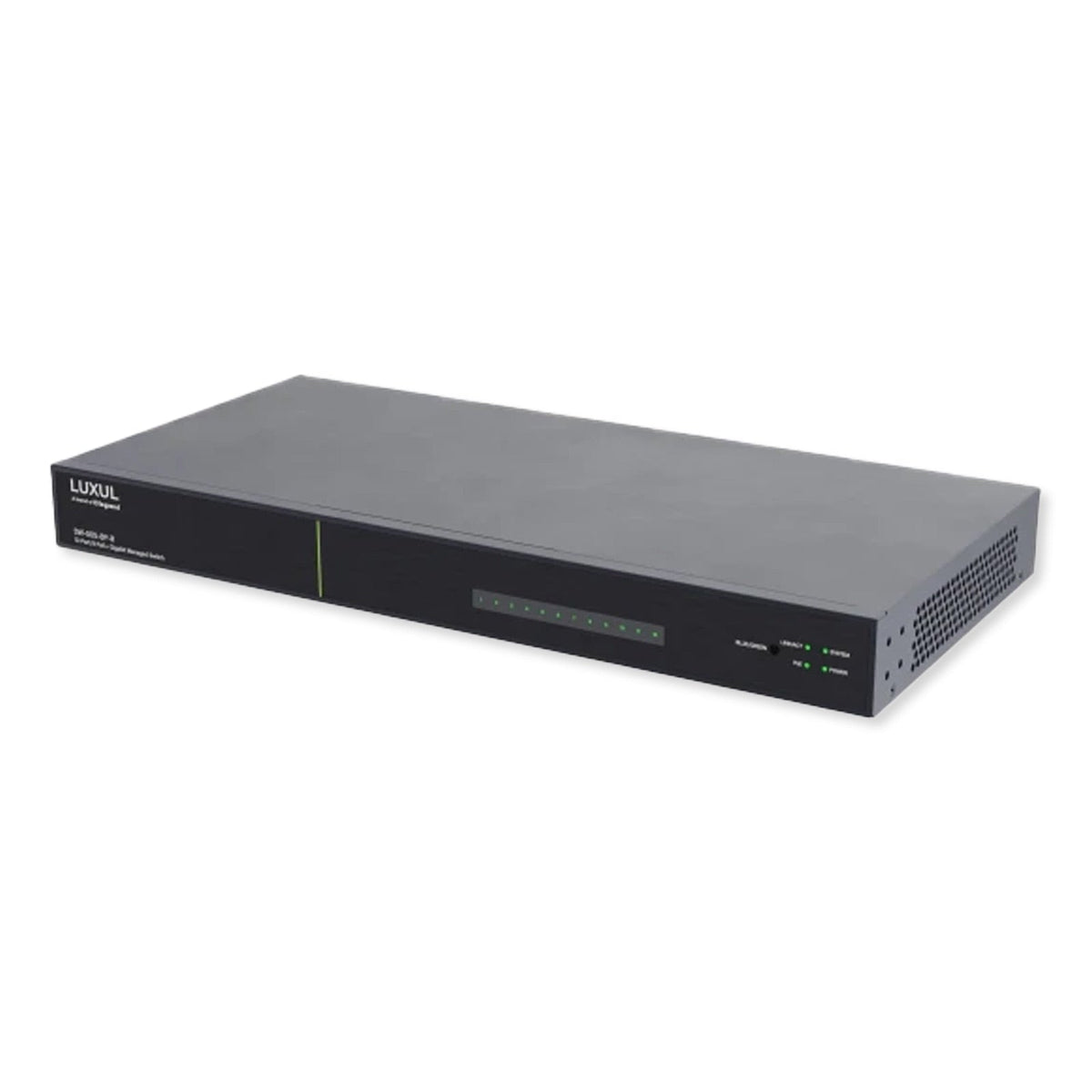

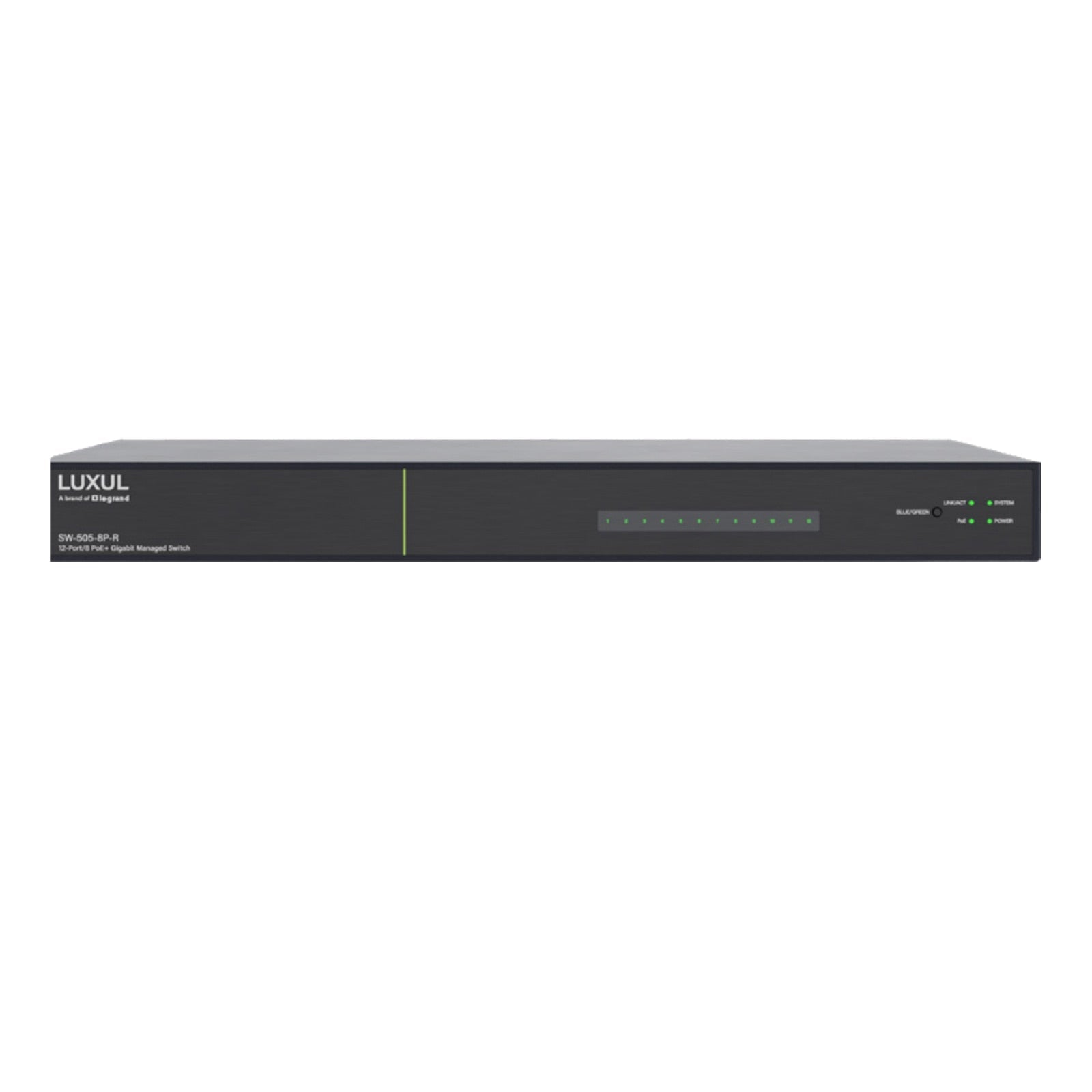

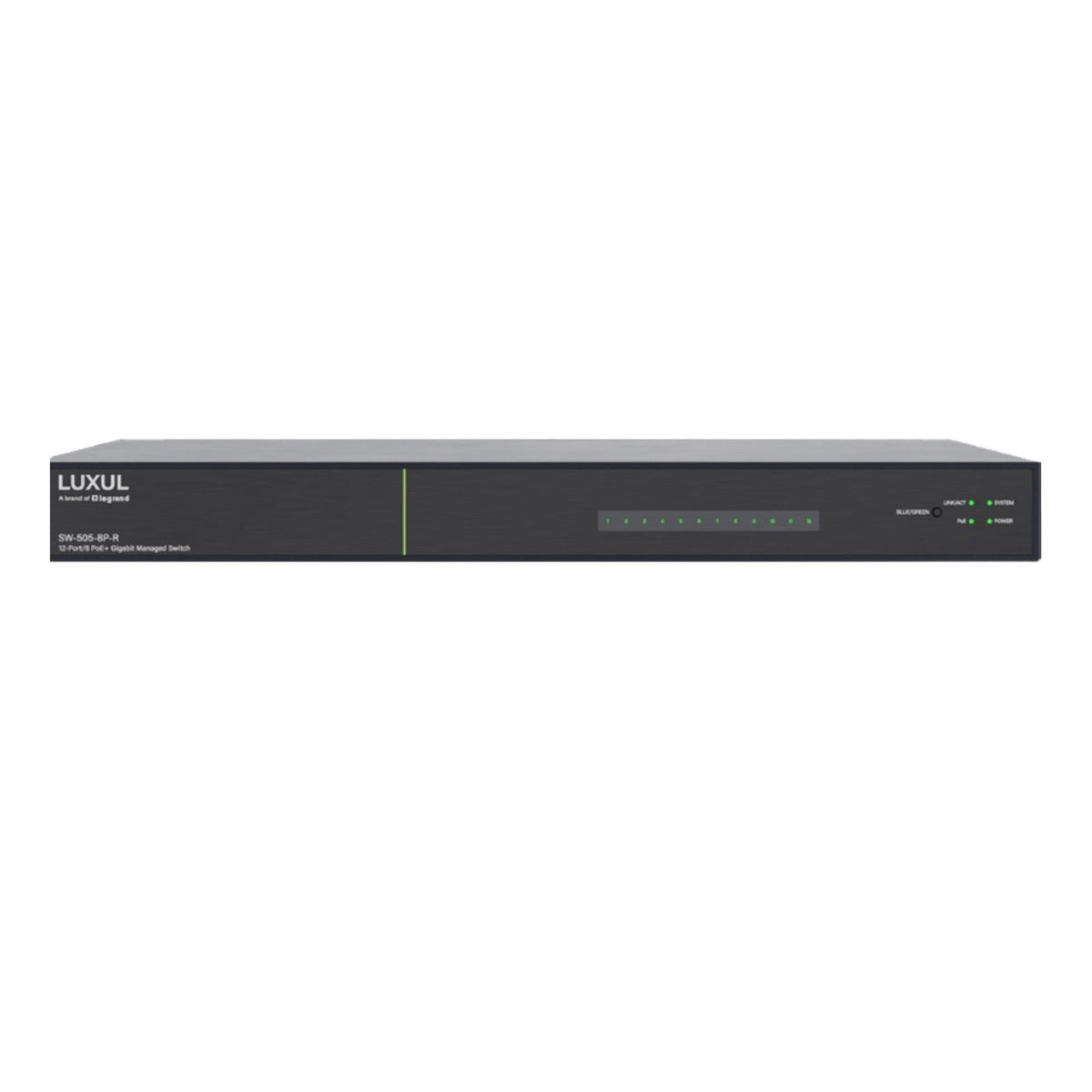

Luxul 12 Port/8 PoE+ Gigabit Managed Switch, Rear Facing

Support 10 Network Devices with Room to Expand Your Network

Easily support a dozen network devices with the Luxul 12 Port/8 PoE+ Gigabit Managed Switch! This fanless rear-facing managed network switch is primarily designed for AV-over-IP (AVoIP) applications; supporting eight 1 Gigabit Power over Ethernet (PoE) ports, two unpowered Ethernet ports, and two Gigabit SFP expansion ports with a 24 Gbps switching capacity and 130W total power budget. Each of the eight PoE ports use a single PoE cable (Cat5 or above) to transmit data and power to 802.11af/at-compliant devices and can handle a max of 30W per port. Devices that are separately powered can use the unpowered Ethernet ports, or can use one of the PoE ports for network connectivity only. Each SFP expansion port allows for connection with additional network switches and both ports can be aggregated together to reach a 2 GB connection speed. The switch includes Layer 2/Layer 3 features and an easy-to-use management interface to simplify configuration from a local computer or controller. Easily setup Internet group management protocol (IGMP) on a per-port basis to customize your local network.

• Gigabit Switch connects up to 12 network devices via Ethernet and SFP connections

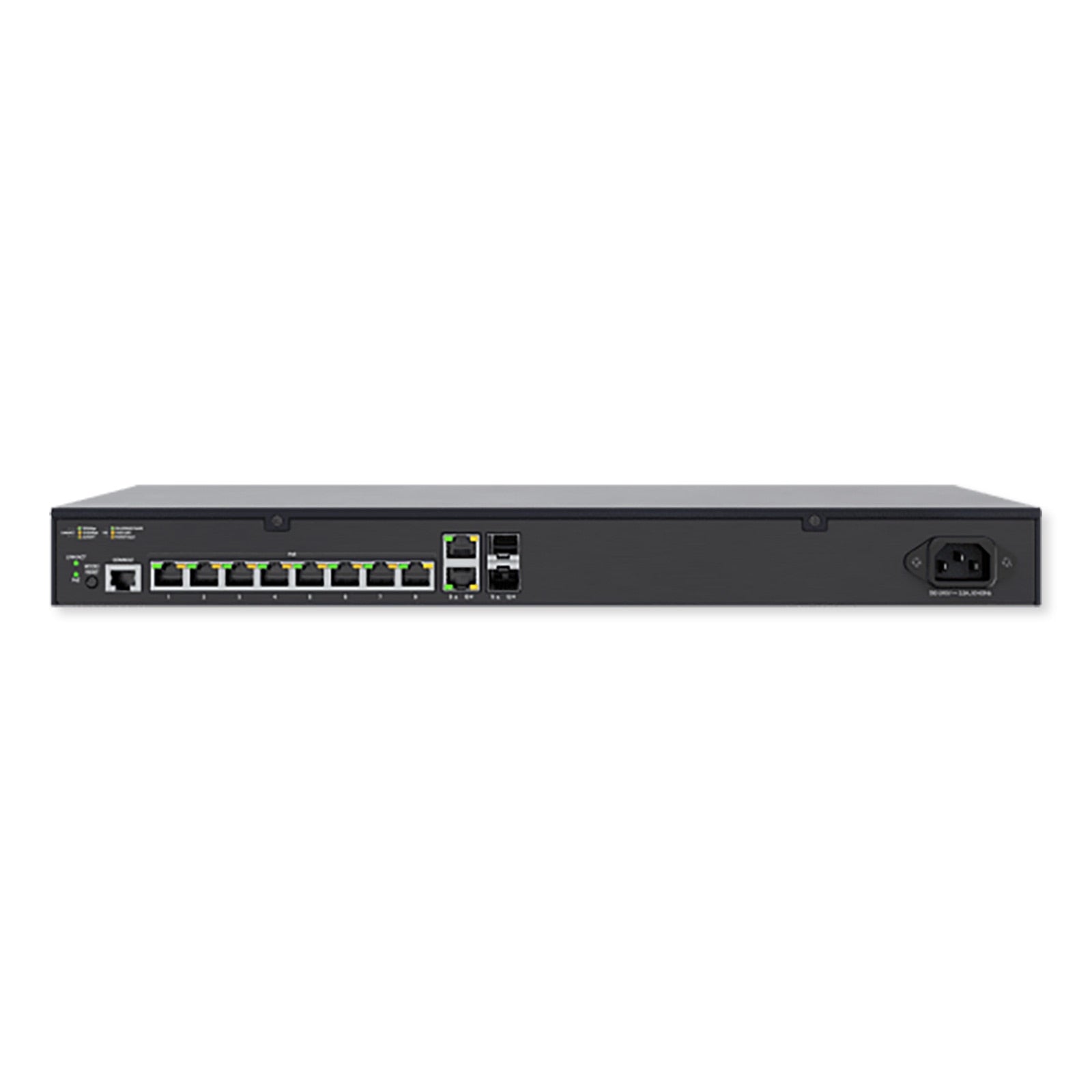

• Supports eight (8) PoE ports, two (2) standard Ethernet ports, and two (2) SFP expansion ports
• 24 GB switching capacity and 130W total power budget, up to 30W per PoE port
• Designed for Audio/Visual-over-IP (AVoIP) applications, video surveillance, automation and security systems, or gaming applications
• Supports PoE monitoring features such as Auto-Recovery and Power Scheduling for live updates of device status
• Layer 2/Layer 3 capabilities (static routing included) and per port configuration allows for Multicast/IGMP snooping, querying, and more networking features
• Fanless design allows for silent operation

Installation Details

The Luxul 12 Port/8 PoE+ Gigabit Managed Switch can be placed atop or within a media cabinet or desktop, or rack mounted with the included 19 inch rack mounting kit.

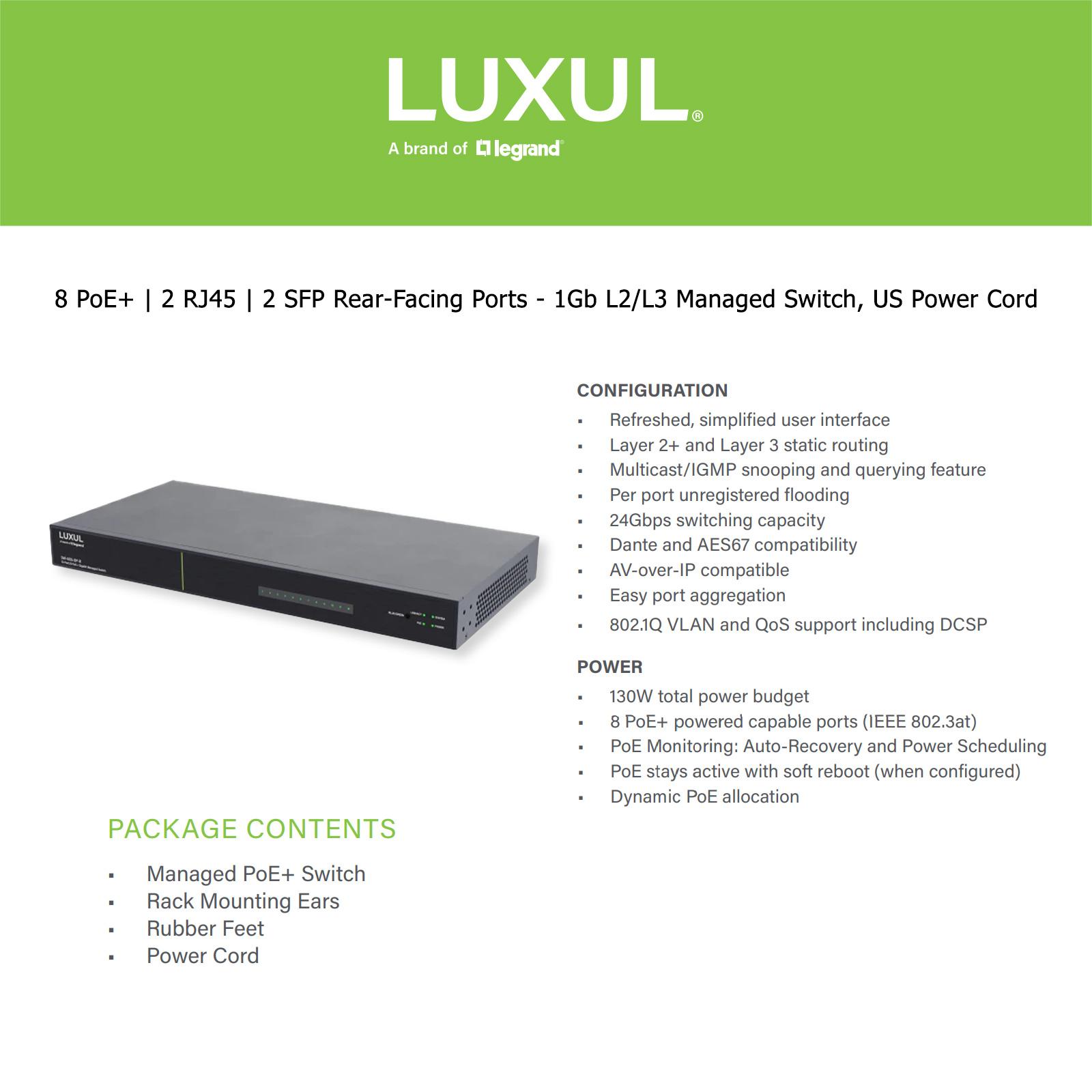

Contents

• SW-505-8P-F Managed PoE+ Switch
• Rack Mounting Ears
• Rubber Feet for Desktop Use
• Power Cord

Simply Connected Network Design

Luxul is a leading innovator of custom IP networking solutions and installations. Luxul provides a complete line of network devices and accessories for residential and commercial applications that serve to streamline network design and functionality. With Luxul, installers can deliver scalable IP networks that are easier to install and configure compared to traditional networking systems.
