    Home / Structured Wiring Media Systems / Leviton Basic Home Networking Plus Panel
    Leviton Basic Home Networking Plus Panel

    Leviton Basic Home Networking Plus Panel

    LV47606BNP

    $139.95

    Notify me when this product is available:

    Voice, Data & Video Distribution

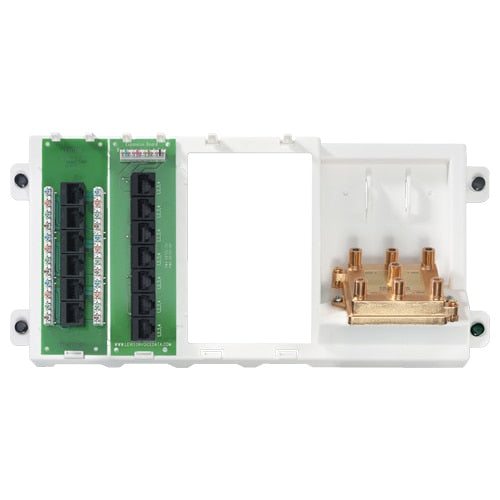

    Leviton’s Basic Home Networking Plus Panel combines a Telephone Patching Expansion Board, Cat5e Voice & Data Board and a 6-way 2 GHz Video Splitter in a dedicated bracket. This offers your connected home essential telephone, video distribution and home networking.

    • Handles up to six 4-line telephone connections and routes video to 6 locations.
    • Provides data or telephone to 6 remote locations.
    • Fits into any Leviton Structured Media enclosure or used as a stand-alone unit.

    Leviton’s pre-configured panels combine the most popular voice, data and radio frequency modules to create an economical, one stop home media distribution point. Some modules are available in expansion styles to fill unused panel slots. Choose the pre-configured combination that best meets your needs and then enhance it with expansion boards or stand alone modules.

    Pre-configured

    • Cat5e Voice Data Module: 1
    • Telephone Patching Expansion Board: 1
    • 6-Way 2 GHz Video Splitter: 1
    • Standards and Certifications: CULUS/FCC/TIA/EIA
    • Warranty: 2 Year Limited

    Design Considerations

    • Determine outlet locations and carefully plan cable routing to ensure the selected unit satisfies requirements. Expansion boards available separately.
    • Install 75 Ohm termination caps on unused outputs of 6-way 2 GHz Video Splitter to reduce signal distortion or ghosting.
    • Use Video Amplifier (48210-VA) for increased signal strength.

    Mechanical Specifications

    • Telephone Patching Expansion: One 110-Type IDC Bridged to 7 8P8C/RJ45 Conn
    • Cat5e Voice Data: 6 Cat5e ports and 6 110-IDC Conn.
    • Video Splitter: 1 F-

    »Leviton 47606-BNP Basic Home Networking Plus Panel Installation Manual (.pdf)
