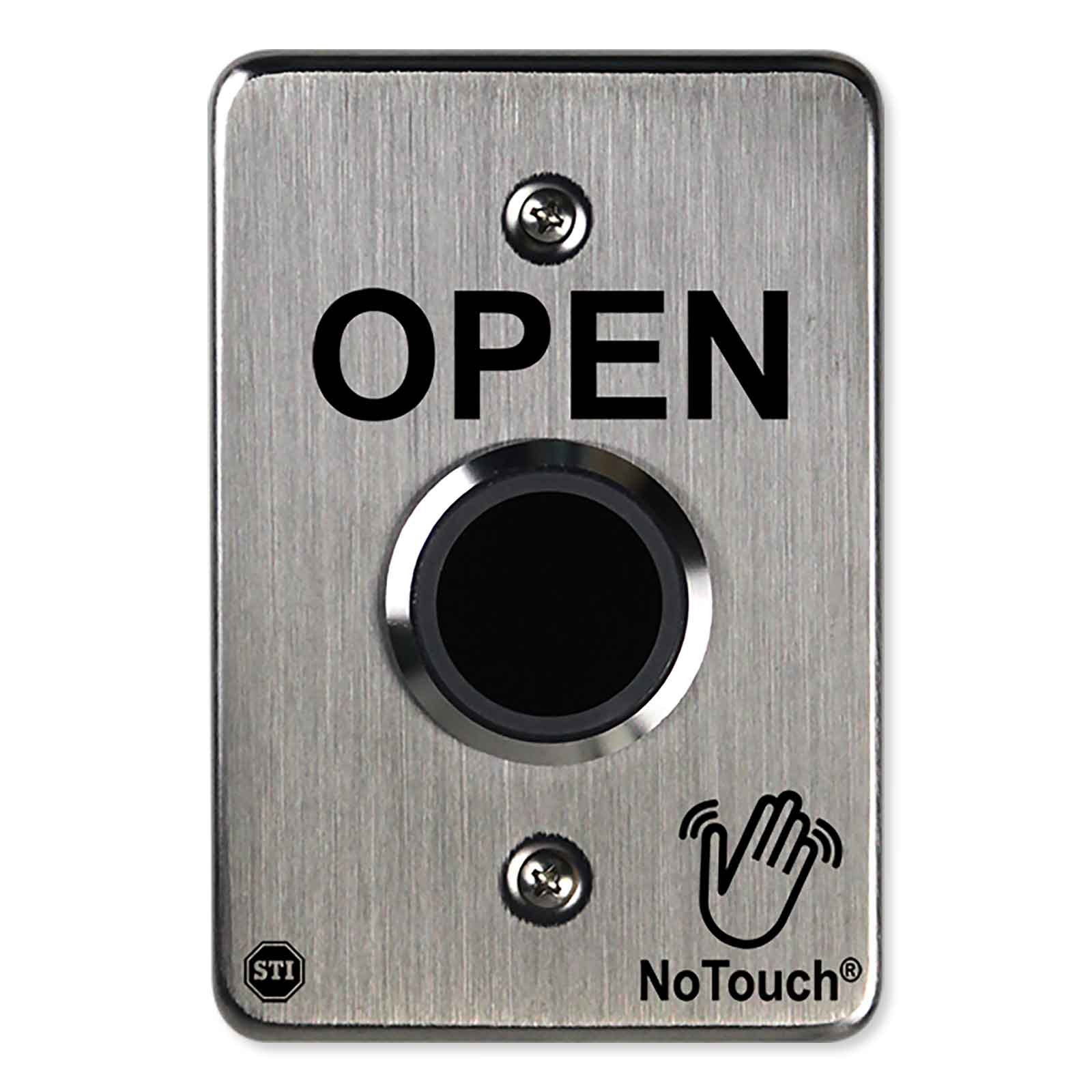

  • STI NoTouch Stainless Steel IR Switch, US Single-Gang, Open

    Notify me when this product is available:

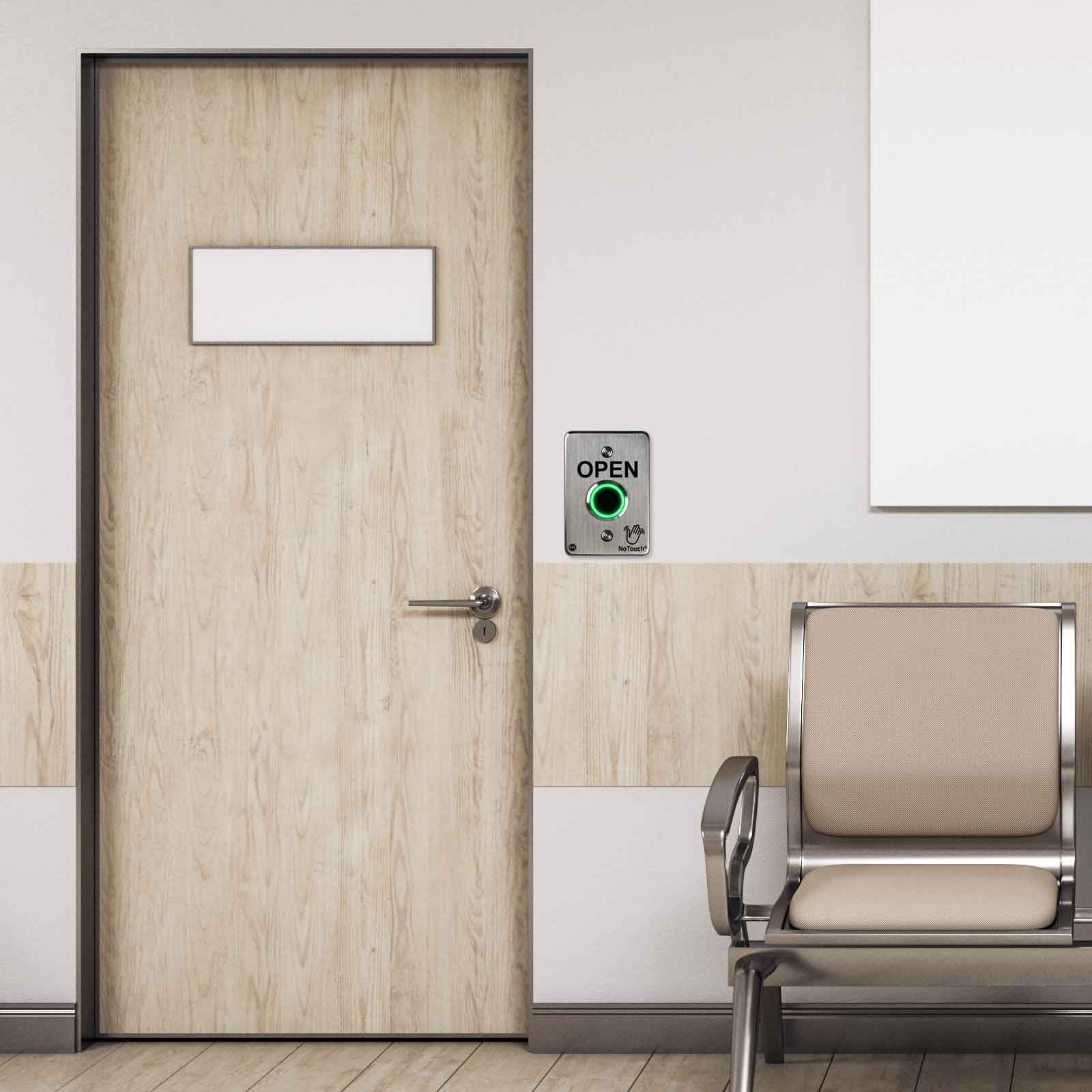

    Exit Your Property With A Wave Of Your Hand

    Request egress from a protected area of your property with the STI NoTouch Stainless Steel IR Switch, US Single-Gang, Open. This touch-free IR sensor uses No-Touch infrared technology that allows exiters to simply wave their hand in front of the device to unlock the door. The faceplate is durable and constructed of medical/food grade 304 stainless steel while the button itself is made out of long-lasting polycarbonate material. The sensor button can glow red to green or green to red when it's activated; and because it's a wave-to-open device it will help reduce the spread of germs, making it perfect for schools, hospitals, labs, clinics, clean rooms, warehouses, factories, and office buildings.

    • No touch egress with a wave of the hand (IR technology) to exit a secure area
    • Faceplate constructed of medical/food grade 304 stainless steel
    • Hand wave/sensing range from
    • Manufacturer Part #: NT-SS102-EN
    • Input Power: 12-24VDC ±10%, 45mA max.
    • Relay Output: Form C (SPDT) dry contact relay
    • Relay Contact Rating: 0.5A @ 120VAC, 1A @ 24VDC
    • Relay Life: 1,000,000 Mechanical Cycles

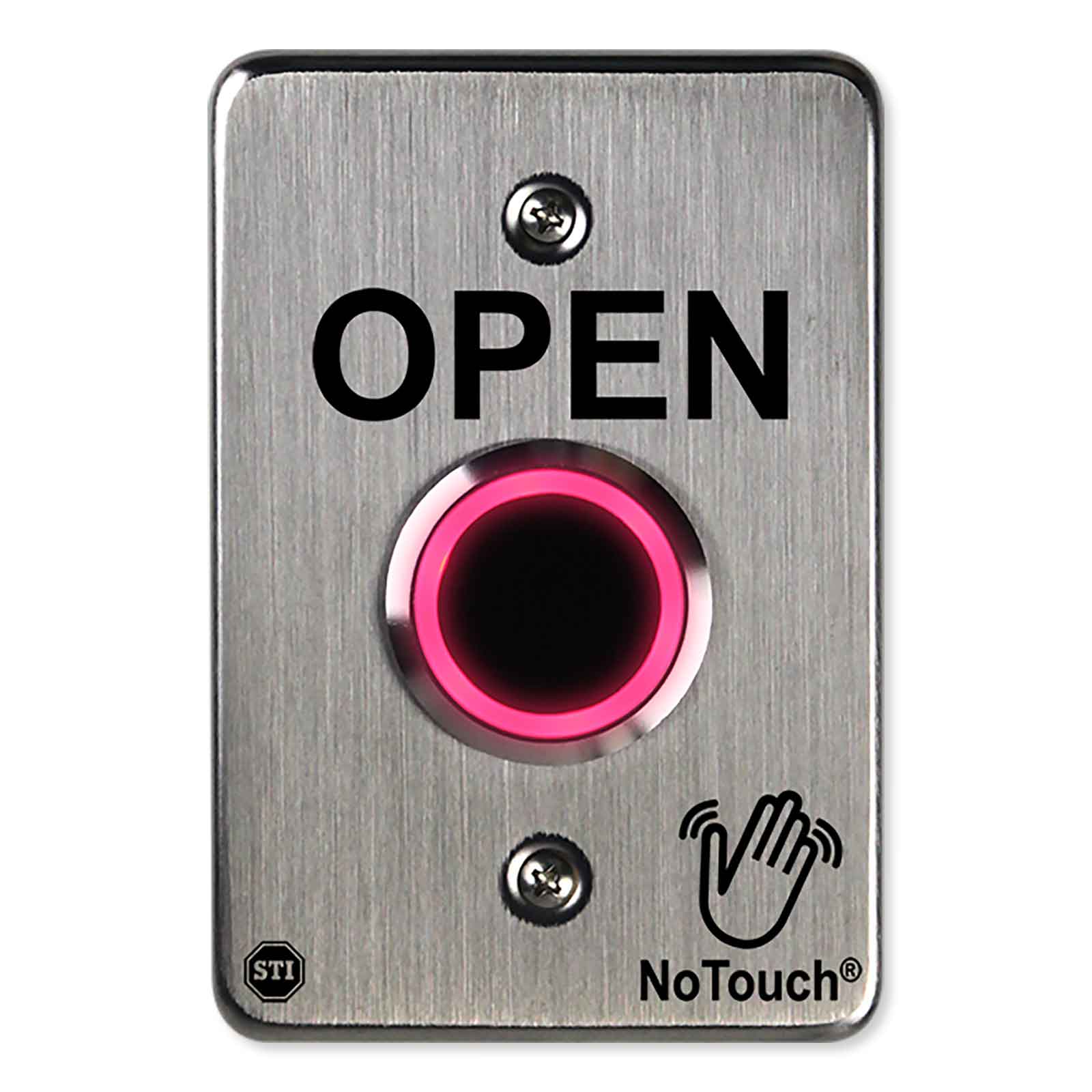

    • Relay Status LED Indicator (Standby/Active): Red/Green (default)/selectable Green/Red
    • Relay Active Time Delay: Adjustable 0.5 ~ 20 seconds
    • IR Detection Range: Adjustable 4 ~ 15cm (1.5 ~ 6 in)
    • IR Sensor Life: 100,000 hours
    • Operating Temperature: -14° F to 158° F (-10°C & 70°C)
    • Sensor: IP65
    • Sensor Construction: 304 stainless steel/polycarbonate
    • Mounting Plate Construction: 1.5mm thick, 304 stainless steel
    • Rated: UL50
